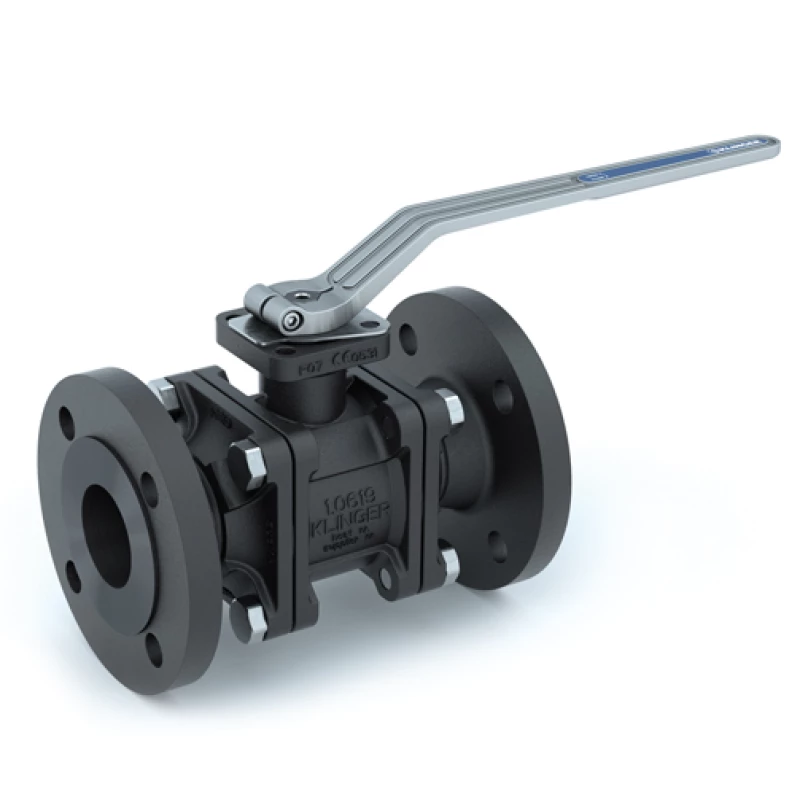

Steel KLINGER Ballostar Spray Tap | KP-2471-Spui

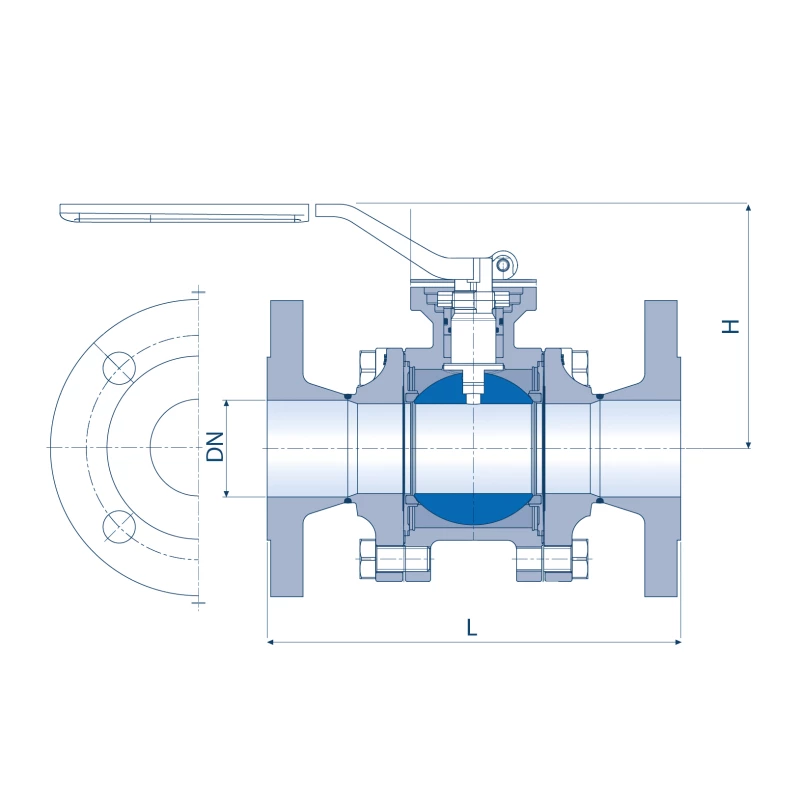

Flange connection PN 40, full bore, 3-piece

• Maintenance-free
• Ball with a cylindrical full bore.
• Anti blow-out spindle.
• Nastable Gland packing.
• Deployable up to 25barg working pressure.
• Standard model TA luft VDI 2440/ISO15848 certified.
• SIL2 IEC61508.
• Robust construction excellent resistance to thermal stress.
• Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
• Bi directional seal according to EN12266 leakage class A.
• For optimum utilization of the ball valve, we recommend a pneumatic actuator spring return: air-opening/spring-closing due to safety automatic control (fixed switching times) and equipped with solenoid valve and open-close indication
• To be maintained without disassembly from the pipe.
• Anti static design in accordance with ISO7121 / EN1983.
• Automation possible afterwards, top flange in accordance with ISO EN 5211.
• Special KACP coating.
• Lockable handle (by padlock).
