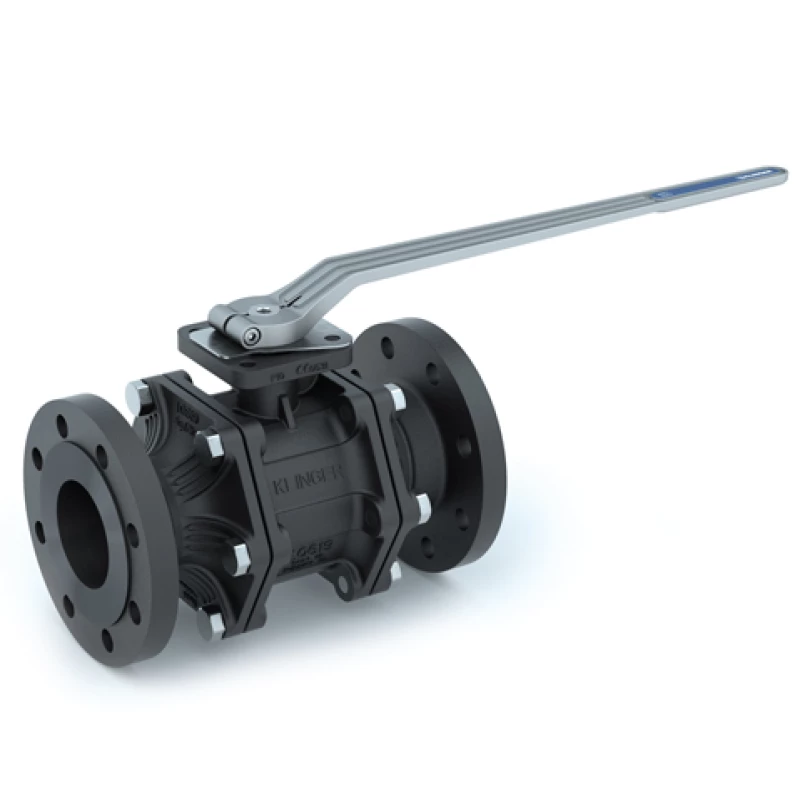

Steel KLINGER Ballostar Gas KHA ball valve | KP-2471-G

Suitable for: natural gas, distribution lines

Maintenance-free.
Ball with a cylindrical full bore.
Anti blow-out spindle.
Non Nastable Maintenance Free Gland packing.
Standard model fire safe certified EN10497 and API607.
Standard model TA luft VDI 2440/ISO15848 certified.
SIL2 IEC61508.
Robust construction excellent resistance to thermal stress.
Unique sealing system with spring-loaded sealing elements enclosed by stainless steel.
Bi directional seal according to EN12266 leakage class A.
Modular design and selection of various components.
To be maintained without disassembly from the pipe.
Anti static design in accordance with ISO7121 / EN1983.
Automation possible afterwards, top flange in accordance with ISO EN 5211.
Special KACP coating.
lockable handle (by padlock).

Additional information

Double block & bleed model.
complete with pneumatic or electric control, see Ballostar ball valves automation kit.

Type	KP-2471-G
Material	Cast steel EN-GP240GH/1.0619
Pressure class	PN 40
Bullet	STAINLESS STEEL 1.4401/1.4408
Spindle	STAINLESS STEEL 1.4104 (ANSI430F)
Handle	STAINLESS STEEL
Div.elements	KFC carbon reinforced PTFE in spring-loaded stainless steel element
House Seal	Graphite+ KLINGERSilC4430®
Spindle seal	FPM O-rings

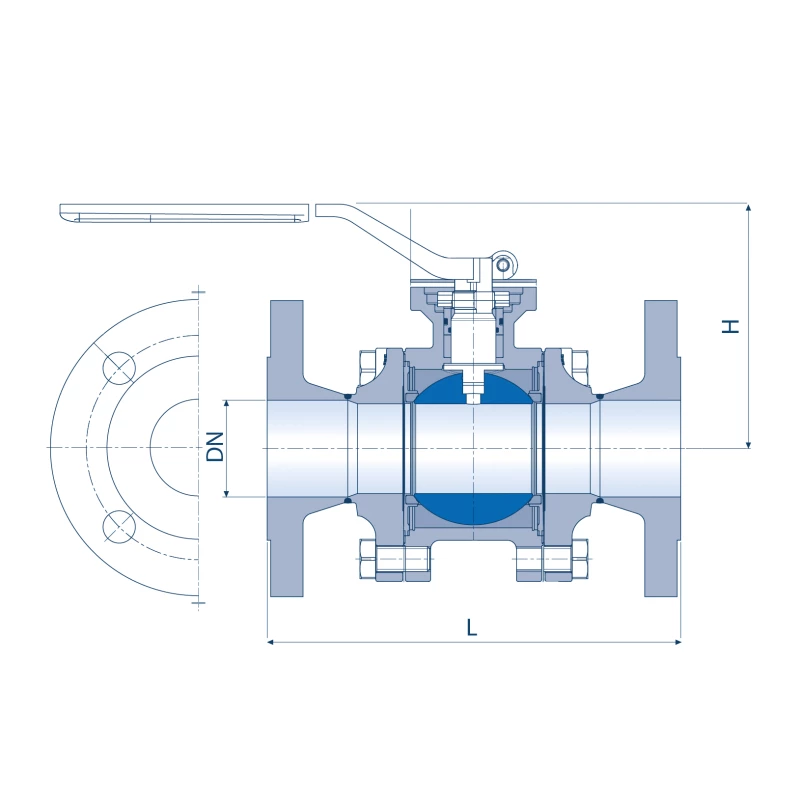

Face to face	EN 558-1 series 1
Connection	RF Flange connection according to EN1092-1

Temperature	-10°C to +70°C (pressure and temperature dependent)

ÖVGW approval for natural gas application.
