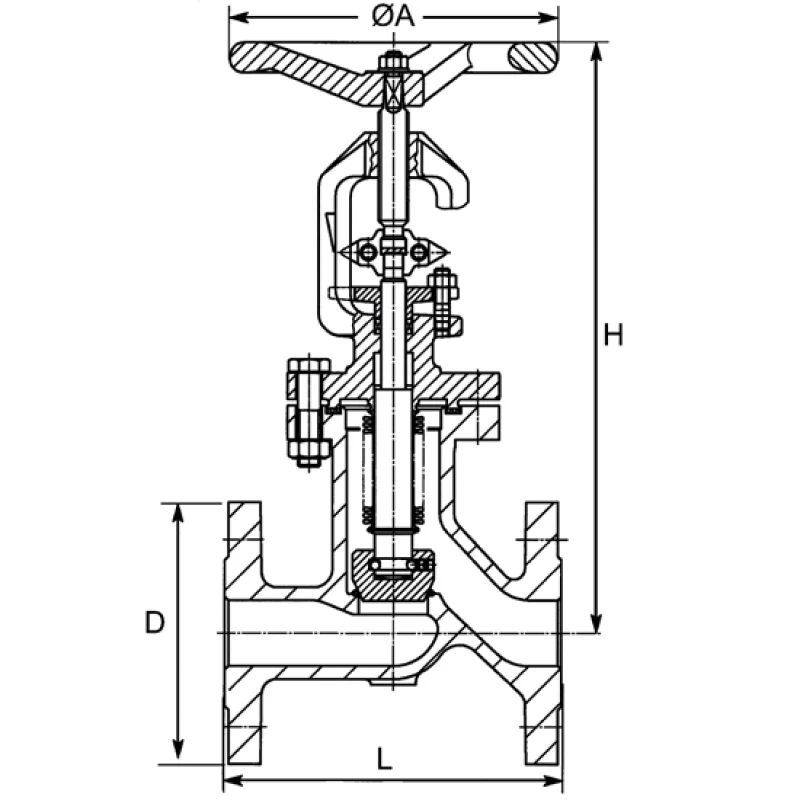

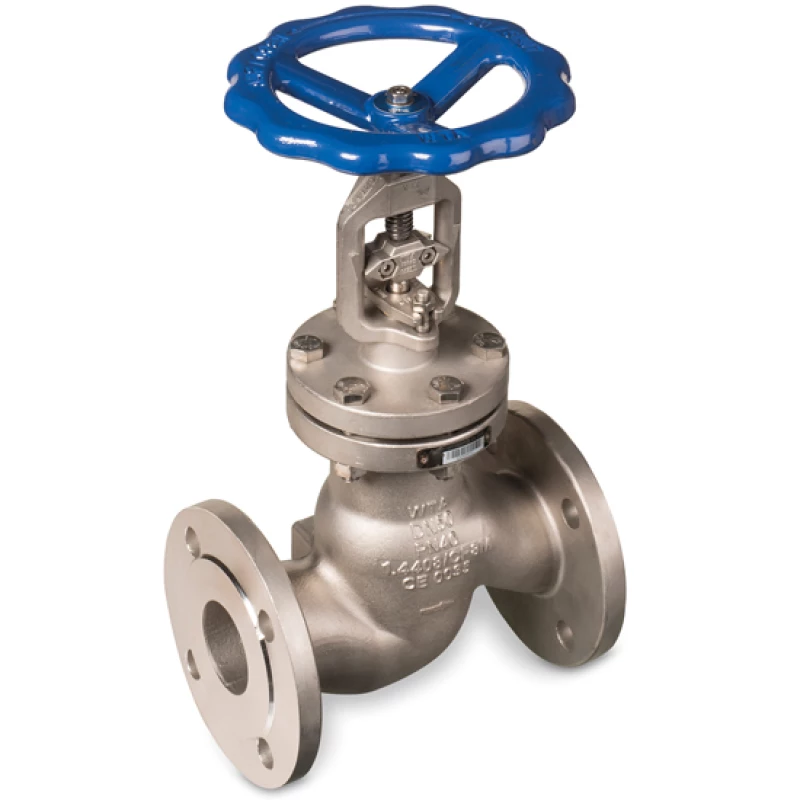

Stainless steel WTA gate valve with bellows - KP-715

Stainless steel WTA gate valve with bellows | KP-715

Stainless steel WTA gate valve with bellows | KP-715
Stainless steel WTA gate valve with bellows | KP-715
gallery slider left
gallery slider right

Flange connection PN 40

Suitable for: cold and hot water, hydrocarbons, gas, air, chemicals and acids.

  • WTA Type 11.3-G-FL-A4
  • Emission free seal, maintenance free.
  • Bellows protected against water hammer.
  • Durable in use.
  • "Backseat" that prevents "Blow-outs" and safety stop bushing gasket.
  • External wire spindle with position indicator.
  • Lowered valve and split spindle as anti-torsion protection for the bellows.
Specifications
Stainless steel WTA gate valve with bellows | KP-715
Stainless steel WTA gate valve with bellows | KP-715
Previous series Next Series
For inside spindle see KP-801

Options

  • control valve
  • welded upper part
  • heating jacket
  • free flow model
  • pneumatic control
  • ANSI model
  • seals PTFE

Specifications

Type KP-715
Material Stainless steel GXCrNiMo19-11-2
Pressure class PN 40
Top part Stainless steel GXCrNiMo19-11-2
Handwheel Cast iron EN-GJL-200 epoxy coated
Stuffing box nut Stainless steel X8CrNiS18-9
Seat stainless steel limited
Disc Stainless steel X6CrNiMoTi17-12-2 aligned conical sealing
Spindle Stainless steel X6CrNiMoTi17-12-2
Bellows Stainless steel X6CrNiMoTi17-12-2
Cover gasket Comb profile stainless steel with graphite coating
Gland packing Graphite
Face to face EN558-1 series 1
Connection EN1092-1
Max. pressure difference according to EN13709
Temperature -200°C to +400°C
Contact

For more information on our valves, please contact us at:
