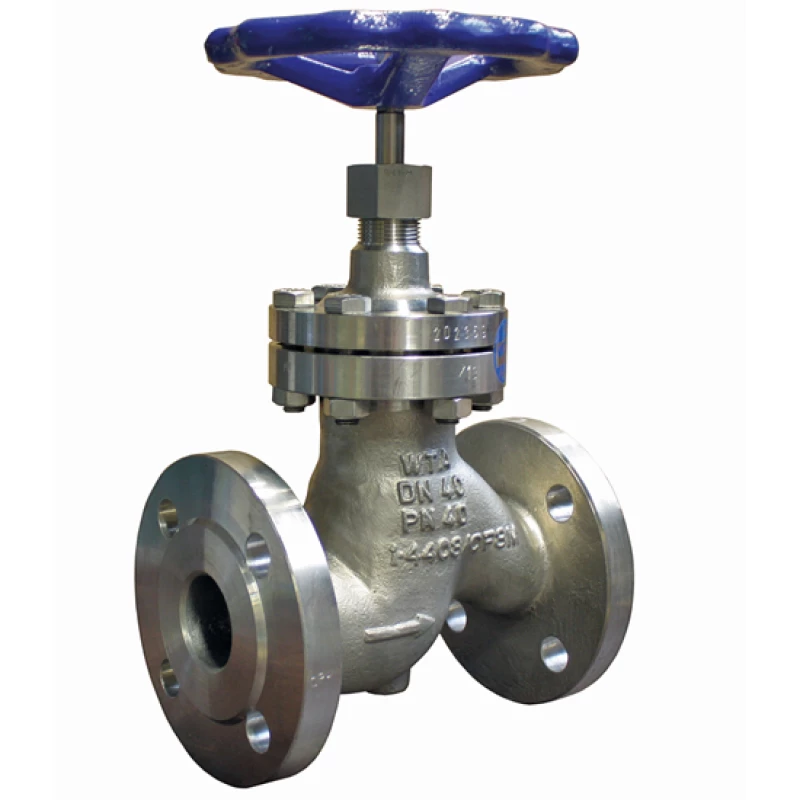

stainless steel WTA gate valve with bellows - KP-801

Stainless steel WTA gate valve with bellows | KP-801

Stainless steel WTA gate valve with bellows | KP-801
Stainless steel WTA gate valve with bellows | KP-801
gallery slider left
gallery slider right

Flange connection PN 40

Suitable for: cold and hot water, hydrocarbons, gas, air, chemicals and acids

  • WTA Type 11.9-G-FL-A4.
  • Emission free seal, maintenance free.
  • Durable in use.
  • 'Backseat' that prevents 'Blow-outs' and safety stop bushing gasket.
  • Torsion free bellows, protected against water hammer.
Specifications
Stainless steel WTA gate valve with bellows | KP-801
Stainless steel WTA gate valve with bellows | KP-801
Previous series Next Series

Options

  • PN 16 model from DN 65
  • S(oft) H(igh) T(emperature) S(ealing), max 220°C
  • control valve
  • welding connection
  • seals PTFE

Specifications

Type KP-801
Material Stainless steel GX5CrNiMo19-11-2
Pressure class PN 40
Top part Stainless steel GX5CrNiMo19-11-2
Handwheel Cast iron EN-GJL-200 epoxy coated
Stuffing box nut Stainless steel X8CrNi18-9
Seat stainless steel limited
Disc Stainless steel X6CrNiMoTi17-12-2 aligned conical sealing
Spindle Stainless steel X6CrNiMoTi17-12-2
Bellows Stainless steel X6CrNiMoTi17-12-2
Cover gasket Comb profile stainless steel X6CrNiMoTi17-12-2 with graphite coating
Gland packing Graphite

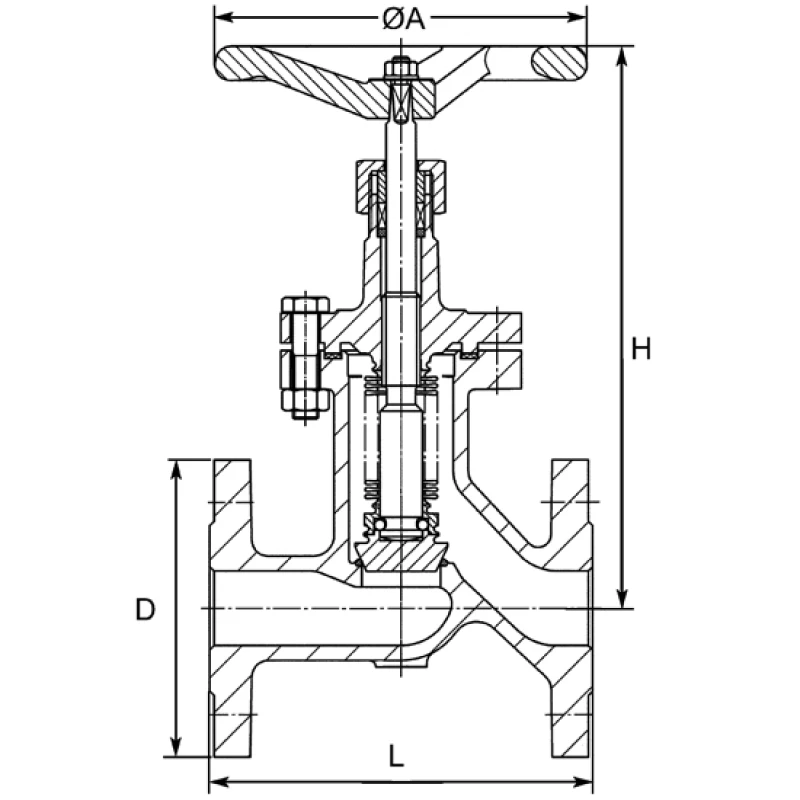

Face to face EN558-1 series 1
Connection EN1092-1
Max. pressure difference according to EN13709
Temperature -200°C to +400°C
