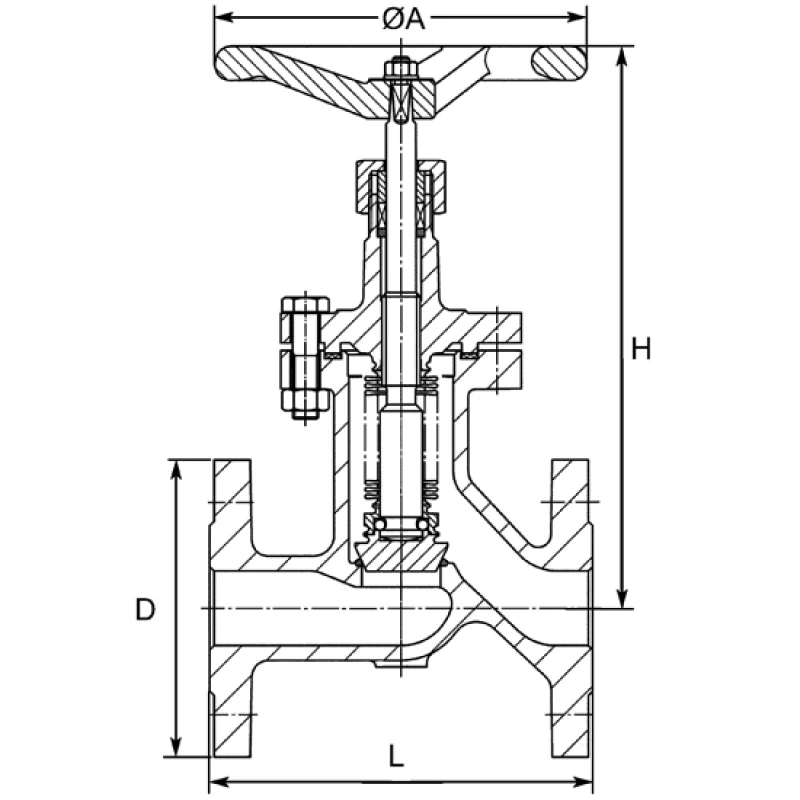

Steel WTA Globe valve with bellows | KP
Flange connection PN 40
Suitable for: cold and hot water, steam, hydrocarbons, gas, air and thermal oil
- WTA Type 11.9-G-FL.
- Emission free seal, maintenance free.
- Durable in use.
- "Backseat" that prevents "Blow-outs" and safety stop bushing gasket.
- Torsion free bellows, protected against water hammer
Urgency or questions about availability?
for DN150 and larger see KP-878
in stainless steel see KP-801
in stainless steel see KP-801
Options
- with control valve
- welded upper part
- heating jacket
- in low temperature steel 1.1138
- free-flow model
- with soft seal KP-887
Specifications
| Type | KP-877 |
| Material | Cast steel GP240GH |
| Pressure class | PN 40 / PN 16 |
| Top part | Steel GP240GH |
| Handwheel | Cast iron EN-GJL-200 coated |
| Stuffing box nut | Steel 11SMnPb30 |
| Seat | Stainless steel X15CrNiMn18-8 |
| Disc | Stainless steel X20Cr13 |
| Spindle | Stainless steel X20Cr13 |
| Bellows | Multi-walled stainless steel X6CrNiMoTi17-12-2 |
| Cover gasket | Kammprofile stainless steel X6CrNiMoTi17-12-2 with graphite coating |
| Gland packing | Graphite |
| Face to face | EN558-1 series 1 |
| Connection | PN 40 / PN 16 according to EN1092-1 |
| Max. pressure difference | according to EN13709 |
| Temperature | -10°C to +400°C |
