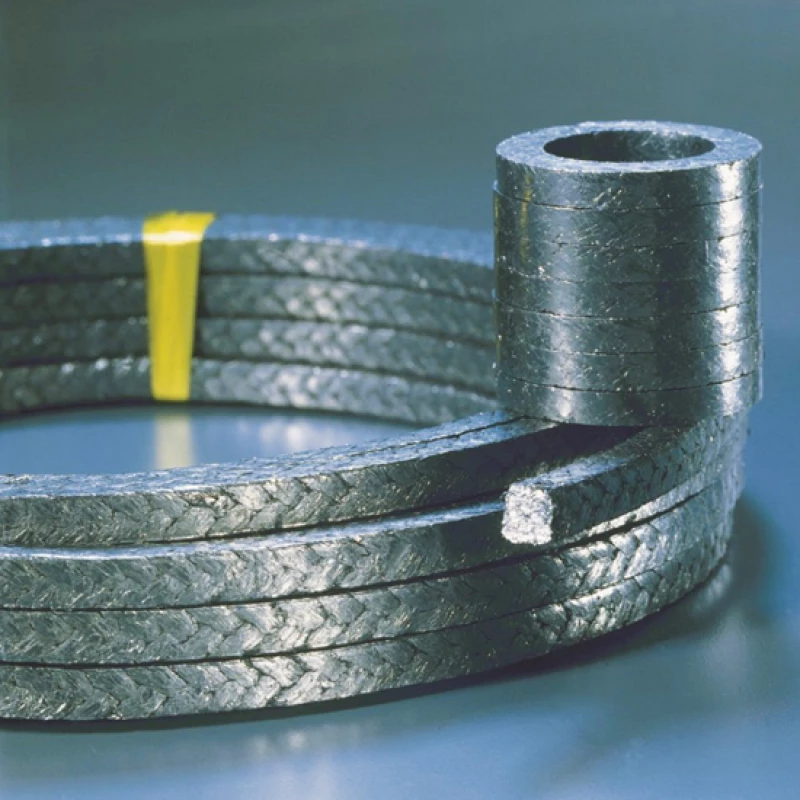

Expanded graphite gasket | Lattygraf 6940

Suitable for: steam, hot water, hydrocarbons, oils and oxygen

Lattygraf 6940 based on expanded graphite has very good sealing properties.
The inconel reinforcement allows it to withstand high working pressures without extrusion problems.
Also widely used as bottom and top ring for Lattygraf E rings.

Specifications

Type	Latty grave 6940
Material	Braided expanded graphite sheathed with Inconel wires, impregnated with a special graphite mix, and equipped with a corrosion inhibitor

*Max. temperature	650°C
*Max. pressure	400 bar
_Ph range	0 - 14

Approved/tested by	BAM approval for application with oxygen 2-3242/2012E
	Fire safe tested according to API 607

* Not at the same time
