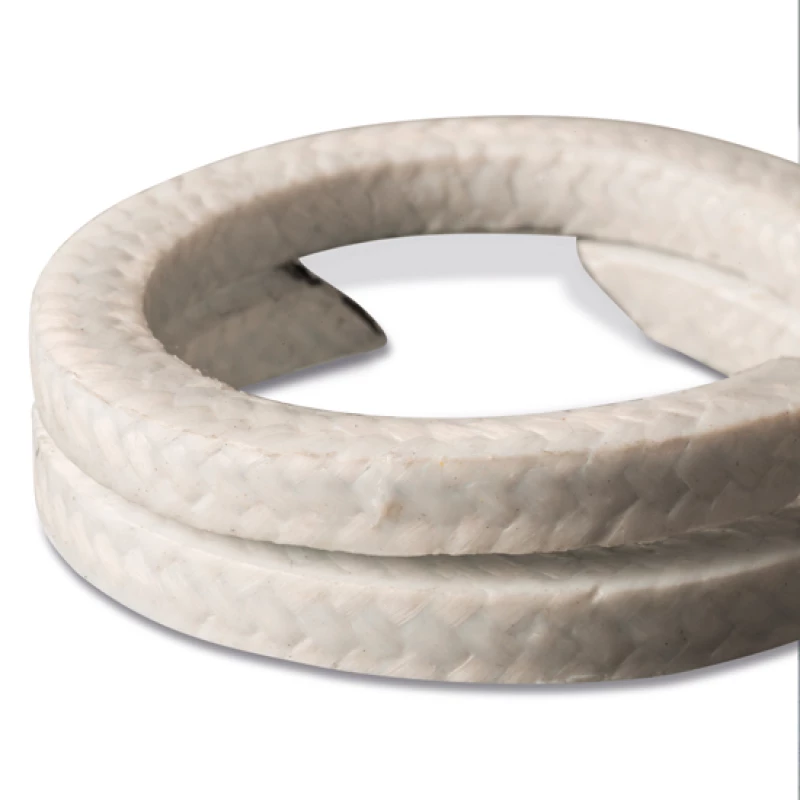

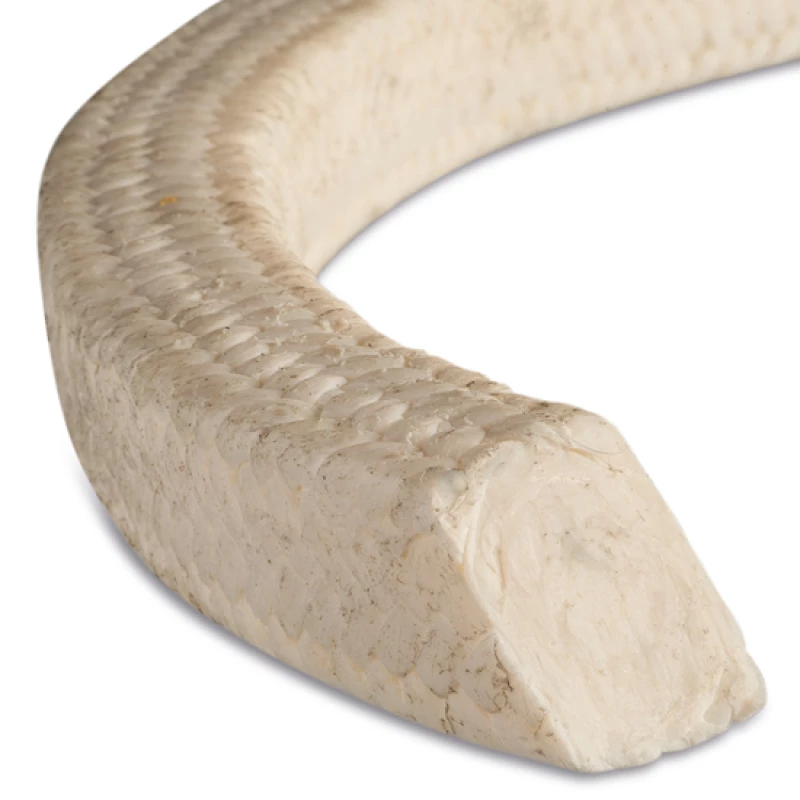

PTFE gland packing | Lattyflon 3206SO
100% PTFE silk yarns
Suitable for: specifically designed for oxygen application but also for strong acids and alkalis, hydrocarbons and foods
- A white perfectly sealing pure PTFE gasket, with special post-treatment for optimum competitiveness with pure oxygen.
Urgency or questions about availability?
Also available

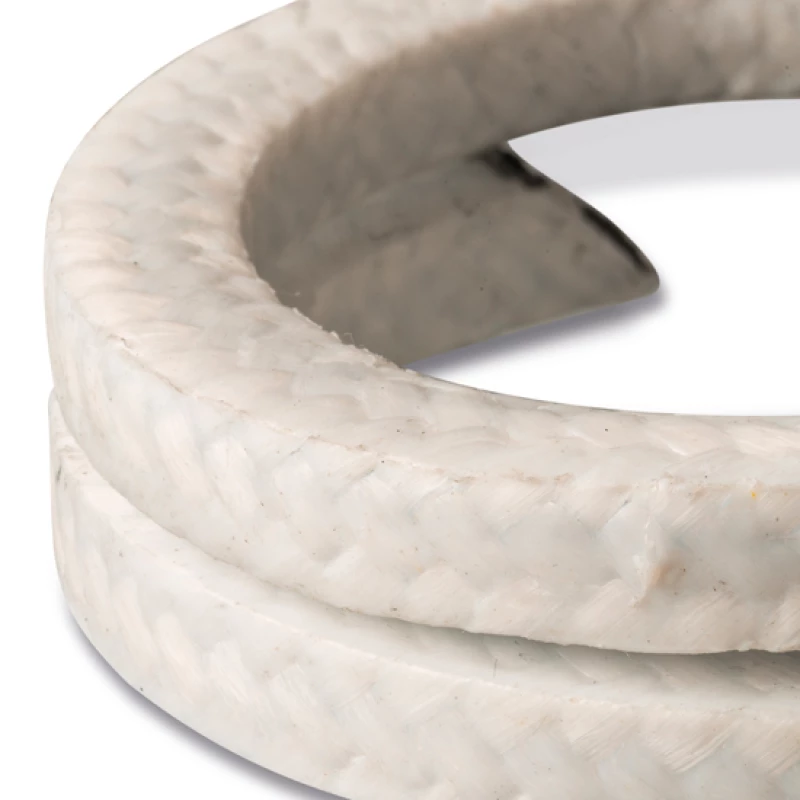

- different lengths or pre-pressed rings
Specifications
| Type | Lattyflon 3206SO |
| Material | Dry PTFE silk gasket impregnated with PTFE |
|
|
|
| *Max. temperature | 300°C |
| *Max. pressure | 300 bar |
| *Max. speed | 5 m/s |
| _Ph range | 0-14 |
|
|
|
| Approved/tested by | BAM approval for use with oxygen 22006082-E |
| CE 1935/2004 | |
| FDA conformity 21CFR.177.1550 | |
| TÜV/TA-LUFT VDI 2440 | |
|
|
|
|
* Not at the same time
|
|
Contact
For more information about our gland packings , please contact:
