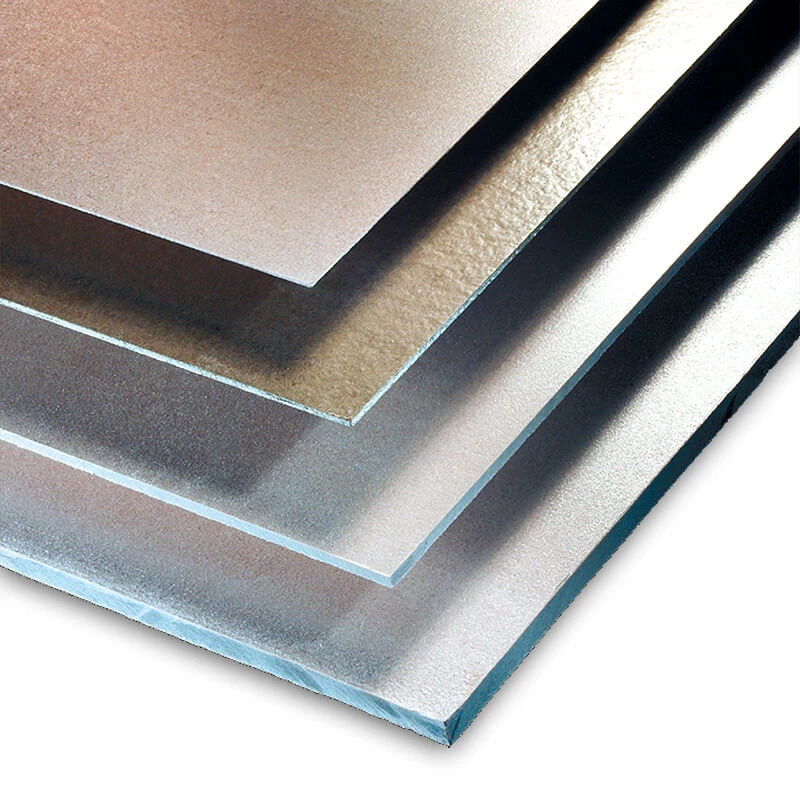

Mica seal | KLINGER Mica laminate
Mica laminate
Suitable for: flue gas and nitrogen oxide sealing at high temperatures
- Extremely suitable for high temperatures.
- This gasket plate is laminated mica.
Urgency or questions about availability?
Also available
- windows, strips and rings, possibly with inner eyelet
Specifications
| Type | KLINGER Mica laminate |
| Material | Mica |
|
|
|
| Max. temperature | 1000ºC |
| Max. pressure | 5 bar |
|
|
|
| Compressibility according to EN13555 | 16% |
| Springback according to EN13555 | 5% |
| Pressure resistance according to EN13555 | 220 N/mm2 |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
CONTACT
For more information about our flange seals, please contact us at:
