Magnetic level gauge

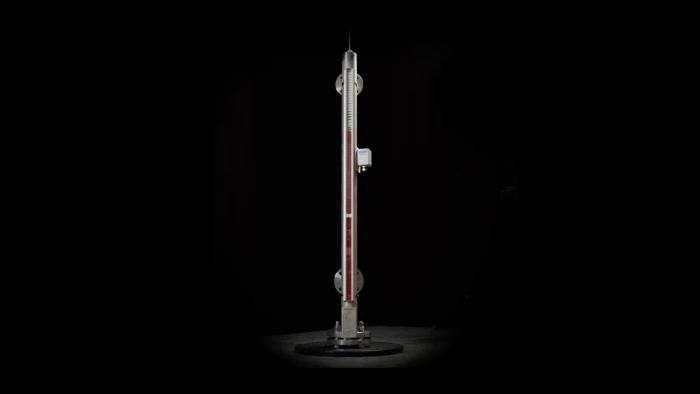

Magnetic level gauge from KLINGER
The KLINGER magnetic level gauges have been a household name in reliability and quality for years. Extremely suitable for applications involving hazardous or aggressive liquids in combination with gases.
Display
Ruggedly constructed in Aluminum or Stainless Steel to IP 67, in any length, suitable for mounting over 360 degrees for best viewing position. Blades shockproof magnetized red/white; resistant to vibration or rapid level changes.
Float
Fully enclosed, pressure-free, reinforced float made of stainless steel, titanium, plastic, or lined a powerful permanent magnet that can move freely through 360 degrees.
Leak indicator
Display comes standard with a float damage indicator if the float enters this area the display indicates that it is leaking or damaged and needs to be replaced or checked.
Housing
Welded or seamless stainless steel chamber also available in plastic, 6MO or other non-magnetizable materials.
Interface
Very suitable for interface reading. Floats available for the correct specific gravity of the liquid whose level is to be read.
Execution
Available in virtually every conceivable model for the widest range of process conditions. Pressures up to 200 bar, temperature up to 400 ˚C. Floats standard for specific gravity from 0.4 - 2.2 kg per dm3.
KLINGER will, if required, take care of measuring the unit and providing a quotation with specifications for your specific process conditions and design requirements. After delivery, all data is stored and is immediately available.
- Increasing your process safety
- Reduce maintenance costs and TCO
- No preventive maintenance required
- Custom made design and model
- Complete level gauge management
Reading: Local or remote using level transmitter

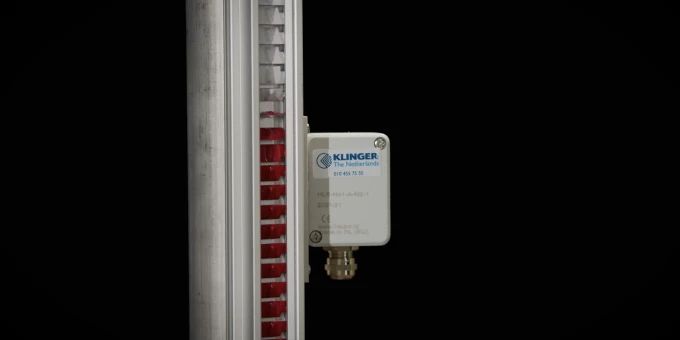

Contacts: Easily fitted with magnetic switches of various designs at each level
Radar measurement: Available with float

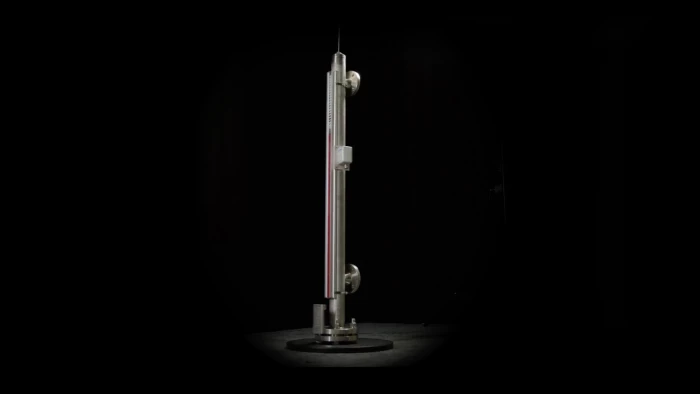

Klinger Magnetic level gauge
Type MLG up to 200 bar working pressure
Suitable for: toxic, aggressive, explosive liquids and liquids with very high (+400℃) or very low (-196℃) temperature. Level indication for steam boilers (up to 120 bar).
- Various connection options and designs.
- Increased safety (no leaks).
- Expandable with magnetic switches, transmitters and Non-frost blocks.
- Robust, display, resistant to vibration.
- Very clear reading.
Specifications
Type: MLG
Chamber material:AISI 316(L) stainless steel or 1.4401/1.4404 stainless steel
Flanges:AISI 316(L) stainless steel or 1.4401/1.4404 stainless steel
Float:Titanium, 316/1.4571 stainless steel, or lined
Display: Aluminum or stainless steel 316
Approvals: Lloyds, ATEX, PED, TÜV, BV, IECEx
House
Technical Specifications: Seamless or welded stainless steel chamber.
Features: Can be supplied in all desired lengths. No maintenance. Various designs possible.
Display
Technical specifications: with stainless steel fins, color red (liquid) and white (gas). With leakage indicator, color red/blue.
Features: Excellent readability. Freely rotatable. Ideal for interface applications. Float-damage indication.
Float
Technical specifications: fully enclosed, free moving and pressureless.
Features: with 360º magnetic field. No maintenance.
Options: Magnetic switches, transmitters. Special materials available, such as Alloy 825, Titanium, Hastelloy, Sanicro 28, Monel, PP, PVDF, UPVC, andPFA lined.
Please specify the following when ordering: pressure and temperature, connection type and center-to-center distance, as well as the medium and its specific gravity (SG).
