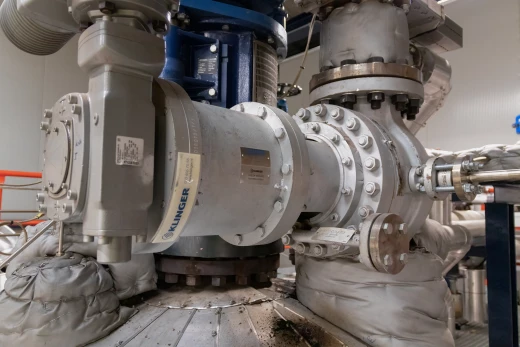

Lift Plug Automation
Lift plug automation by INNO-MAT®
Smooth and fast operation, high precision and easy to control.

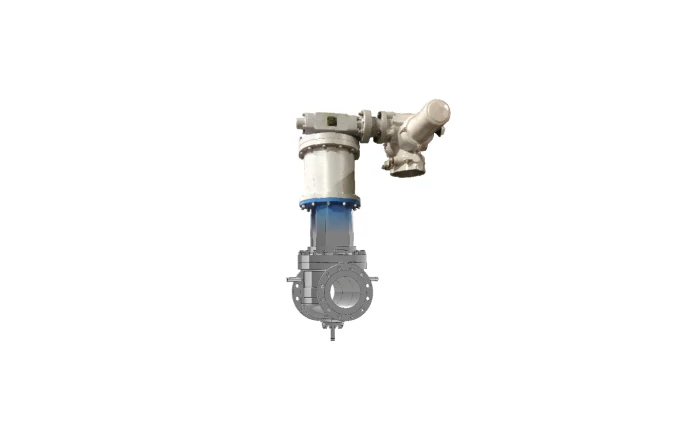

INNO-MAT® is a MIAM GmbH development/invention that represents a revolutionary step in automating a metal sealing lift plug valve through a single actuator. It is a completely new and innovative design, without any indexing balls or nuts and without multiple actuators.
Features
The INNO-MAT® is specifically designed for Lift Plug valves where the plug: Goes Up - Rotates 90° - Goes Down "Re-Seating"
And is also suitable for plug valves of other manufactures such as:
- Crane Pacific - Wedgeplug®
- Poyam - Lift Plug Valve
- Schuf - Lift Plug Valve
- Strack - Lift Plug Valve
Standard Range:
- IM- 7 7 tons
- IM-15 15 tons
- IM-30 30 tons
- IM-50 50 tons
*Larger sizes available upon request
Advantages
Smooth and fast operation
Fast open/close steering without possibility of jamming.
High force transmission
Prevents plug seizure due to thermal contraction, operates at high delta p.
High precision
High repeatability of plug seating, intermediate positioning, "back cycling.
Easily adjustable
Gear, Electric, Pneumatic, Electrohydraulic, Hydraulic.
- The force required to lfit the seat is 2x the force required to push the seat down, since the lift angle is smaller than the angle of re-seating. This prevents plug jamming in the event that the plug is pushed hot into the seat and needs to be lifted out cold.
- Prevents bending of the shaft or bracket assembly in case the control system is stuck.
- Easy on-site assembly/disassembly with the valve in open or closed position due to the "quickhub" clamping system.
For more information about our lift plug automation, please contact:
