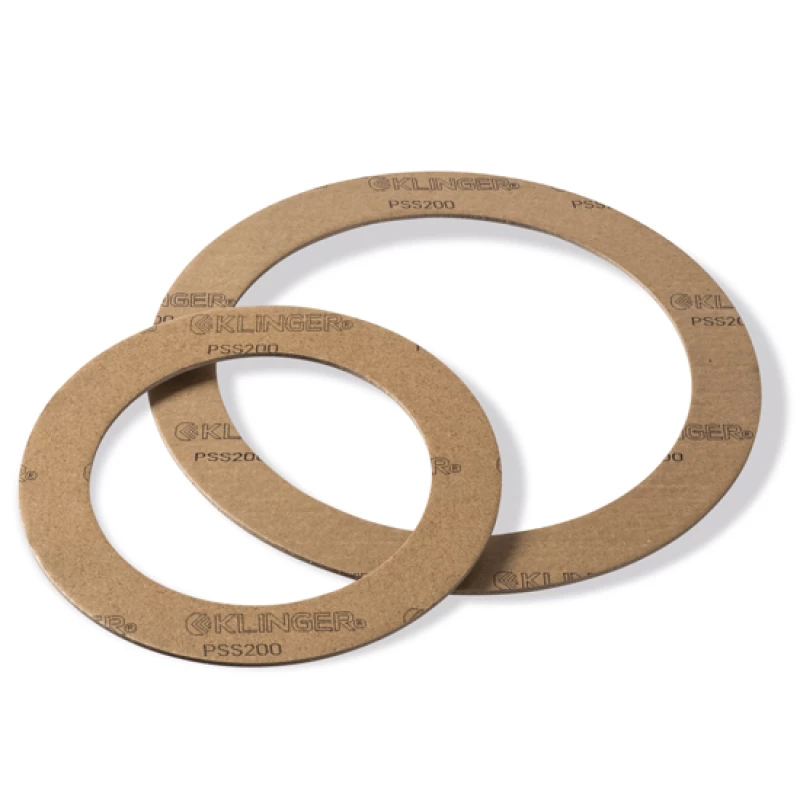

Mica seal | KLINGER Milam PSS
Mica with stainless steel insert
Suitable for: flue gas and nitrogen oxide sealing at high temperatures
- Extremely suitable for high temperatures.

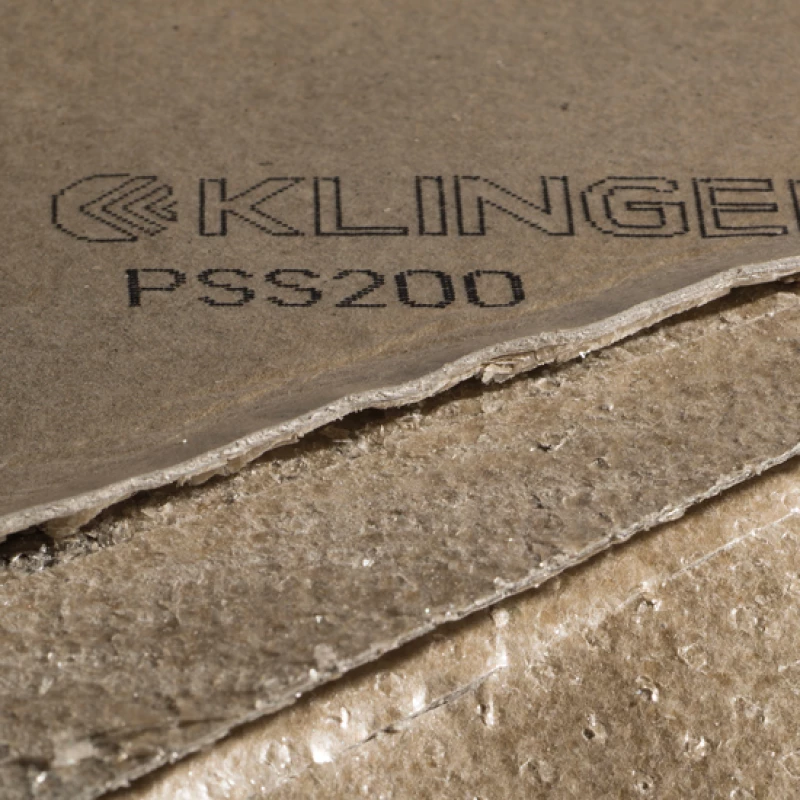

- This gasket plate is laminated mica with perforated AISI 316 insert.
Urgency or questions about availability?
Also available
- windows, strips and rings, possibly with inner eyelet
Specifications
| Type | KLINGER Milam PSS |
| Material | Mica with perforated stainless steel insert |
|
|
|
| Max. temperature | 900ºC |
| Max. pressure | 5 bar |
|
|
|
| Compressibility according to ASTM F36A | 15% |
| Springback according to ASTM F36A | 40% |
| Compressive strength according to DIN 52913(1.5mm) | 33 N/mm2 |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
CONTACT
For more information about our flange seals, please contact us at:
