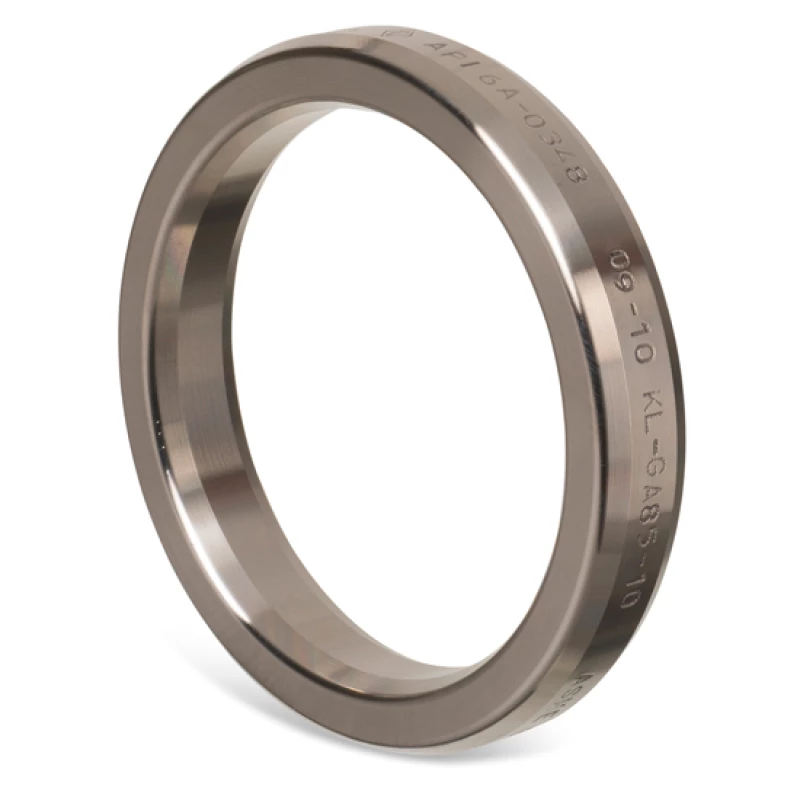

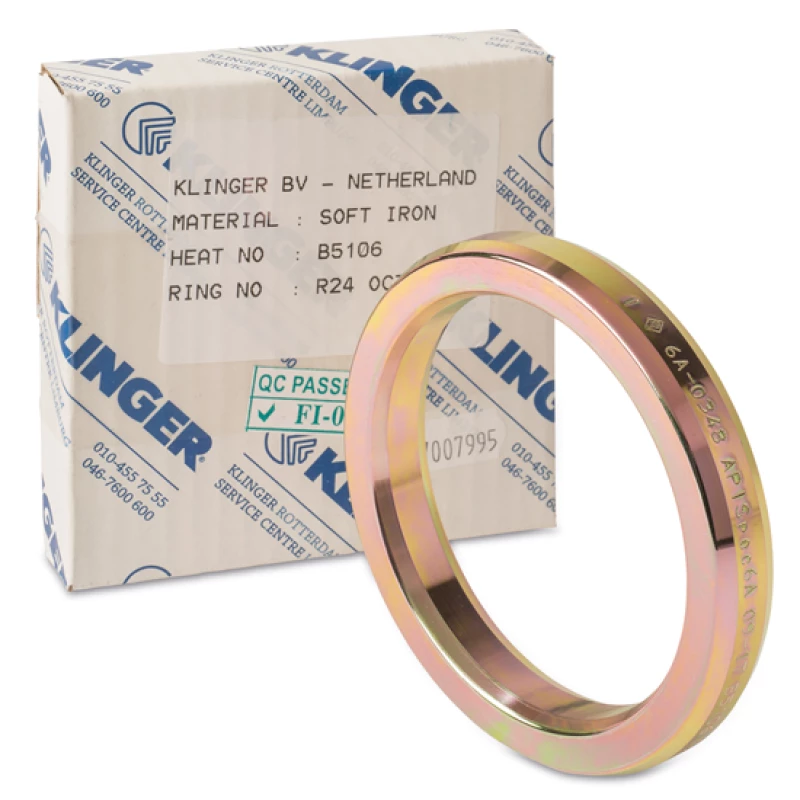

Standard R series | R octagonal

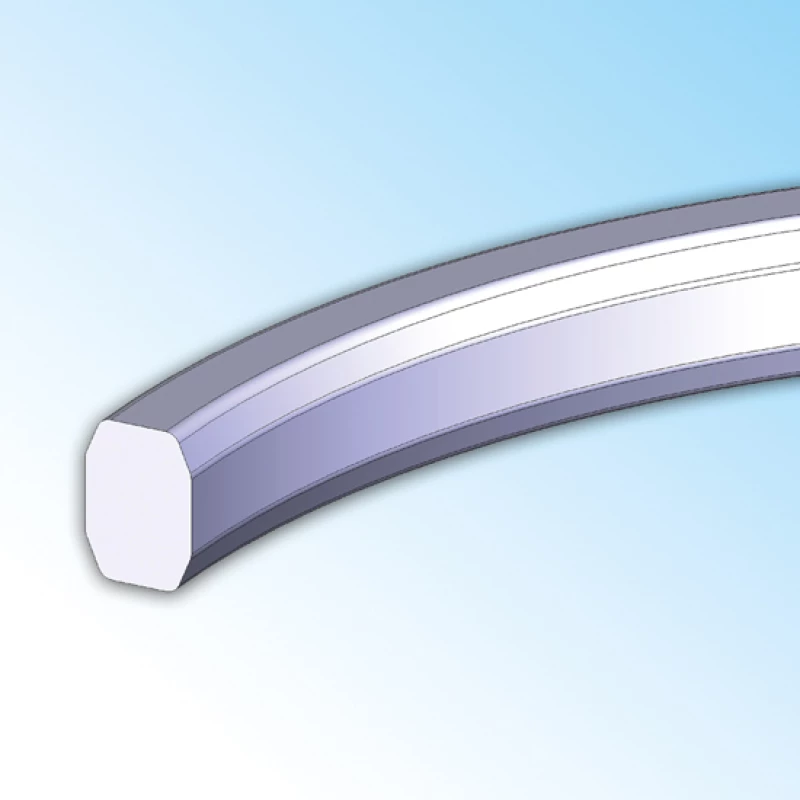

Octagonal model
Suitable for: high pressure and temperature applications
- Very secure sealing at high pressures.
- Suitable for grooves with flat and round bottoms.
Urgency or questions about availability?
Also available
- other materials such as: LCS / F5 / SS 304,321,347,410 / Inconel 625, 825 / Hastelloy C-276 and Titanium
Specifications
| Type | R octagonal |
| Material | |
| D | Soft Iron |
| Hardness 90 | |
| F5 | 4% Cr 1/2% Mo |
| Hardness 130 | |
| STAINLESS STEEL | 304 |
| Hardness 160 | |
| 304L | |
| Hardness 160 | |
| 316 | |
| Hardness 160 | |
| 321 | |
| Hardness 160 | |
|
|
|
| Max. temperature | depending on material |
| Max. pressure | up to 2500# class |
|
|
|
| Execution | according to ASME B 16.20 |
