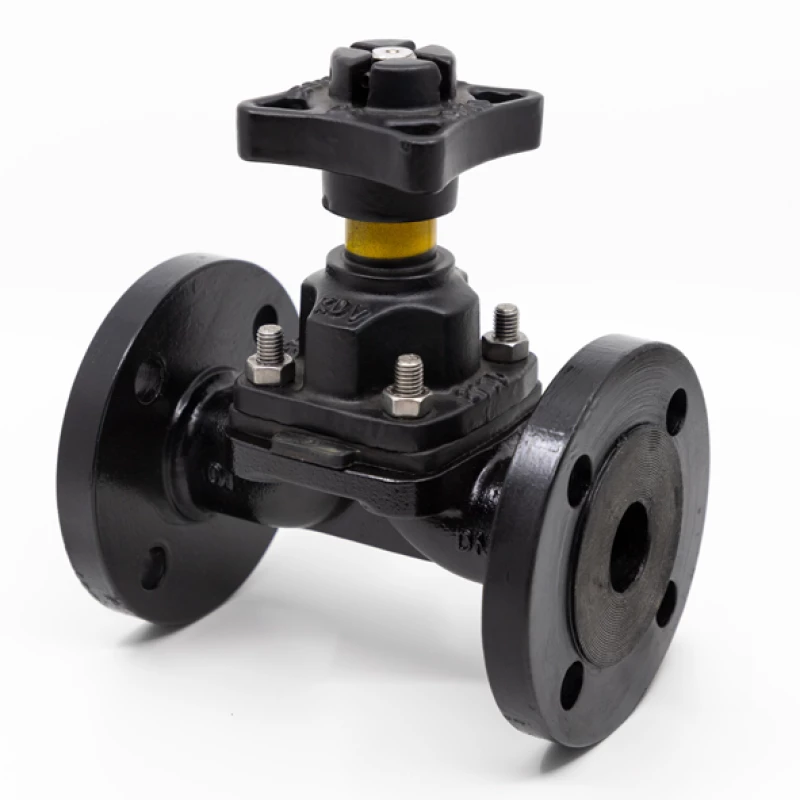

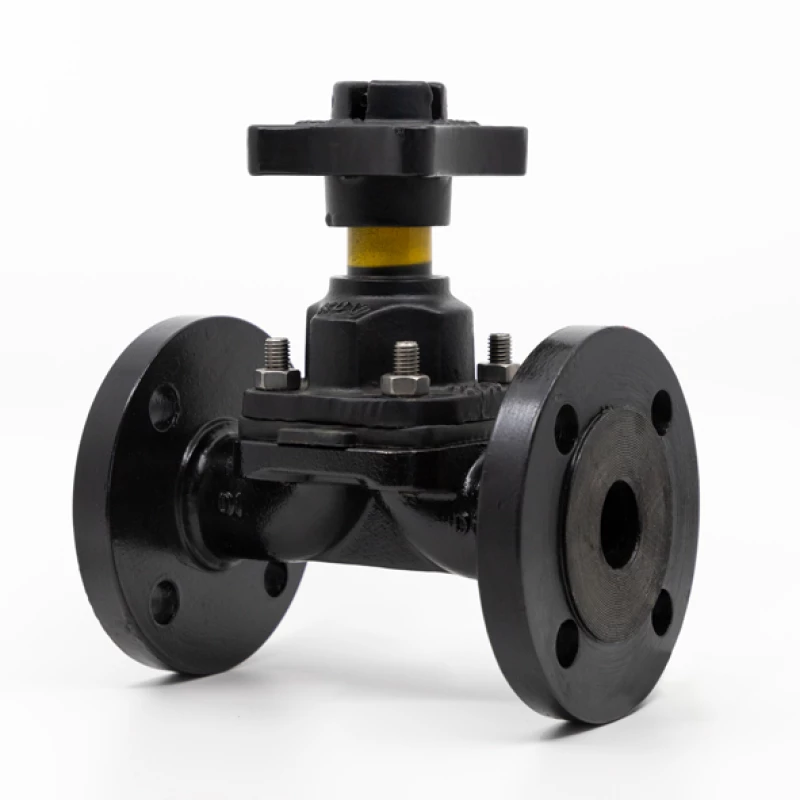

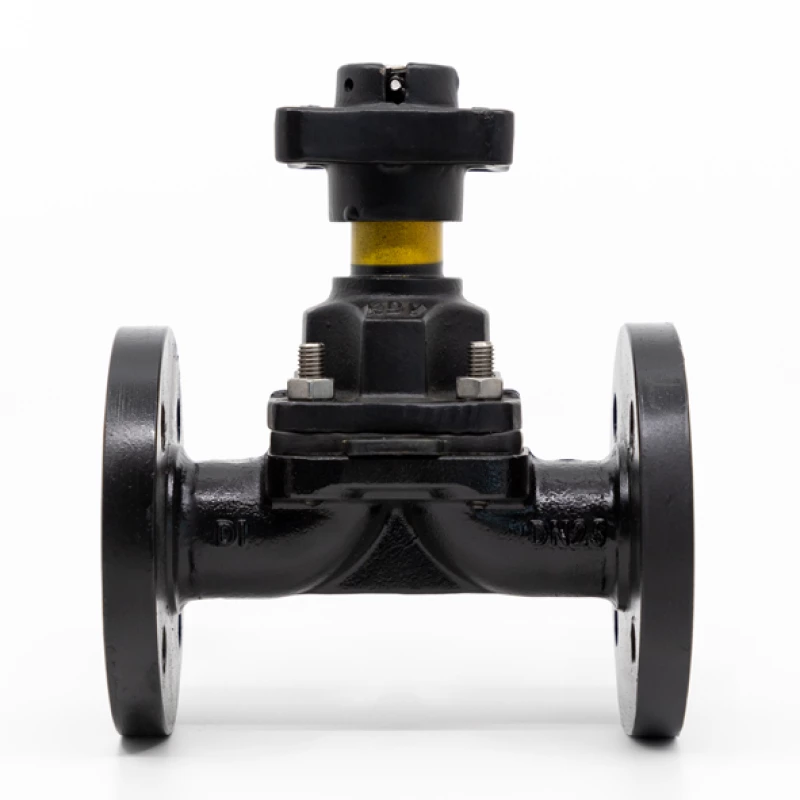

Nod. cast iron diaphragm valve | KP-9330
Flange connection PN 10 / PN 16
Suitable for: cold and hot water, oil, gas, nitrogen, air, chemicals (depending on diaphragm selection)
- Handwheel adjustable
- Clear open/close indication
- Diaphragms fully interchangeable with other manufactured products
- Renowned manufacturer
- Leakage class A : "bubble tight "
- Low maintenance
Urgency or questions about availability?
Options
- With pneumatic or electric operation
- with spindle extension
- with lock locking device
- with chain wheel operation
- with hard rubber lining
- For diaphragm valves with PFA lining see KP-9337
Specifications
| Type | KP-9330 |
| Material | Nodular cast iron ASTM A395 60-40-18 |
| Pressure class | PN16 to DN50,PN10 DN65 to DN150*. |
| Top part | DN15& DN20 steel ASTM A216 gr WCB |
| DN32 and DN65 cast iron ASTM A126 CI B | |
| other ductile iron A395 60-40-18 | |
| Handwheel | Cast iron ASTM A126 CI B |
| Spindle | ASTM 304 STAINLESS STEEL |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 PN16 |
|
|
|
| Temperature | EPDM diaphragm 140°C max |
| Butyl diaphragm 130°C max | |
| Natural rubber Diaphragm 100°C max | |
| Neoprene diaphragm 100°C max | |
| PTFE/EPDM diaphragm 175°C max | |
|
|
|
|
* DN150 with PTFE diaphragm 7 bar max
|
|
