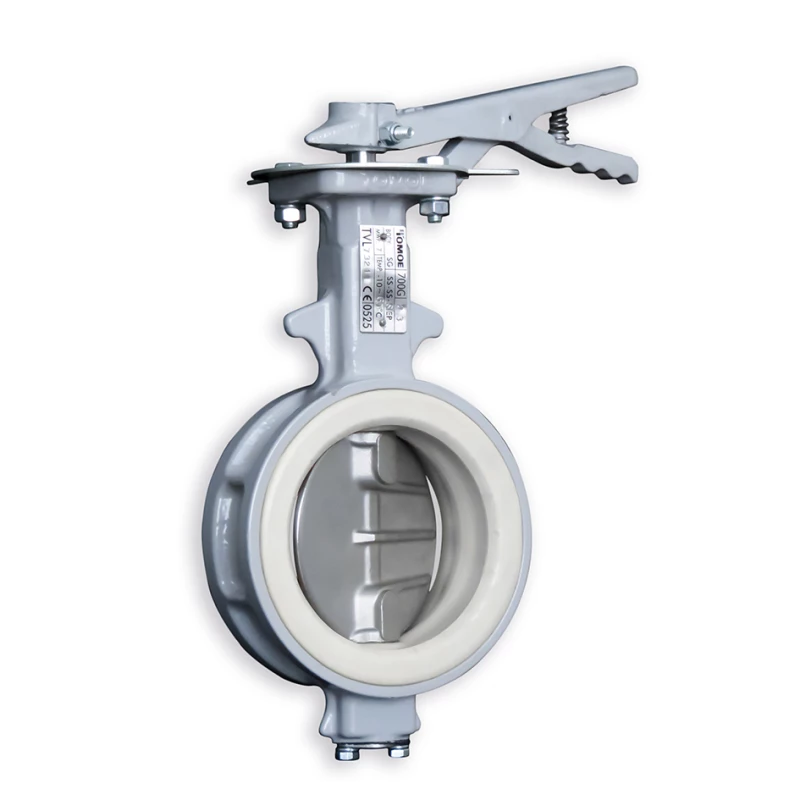

Nodular Cast Iron Tomoe Butterfly Valve for Food | KP-1060 SEP

Suitable for: food applications, food and pharmacy

Meets the requirements of EC1935/2004 and is FDA approved.
Wafer type butterfly valve for flanges PN10/PN16 and ANSI 150#.
Low operating torque, perfect sealing and long lifetime due to cosine curve seat.
High Kv value due to pantented cosine curve seat, large bore diameter and profiled disc.
Excellent leaktight sealing perfomance.

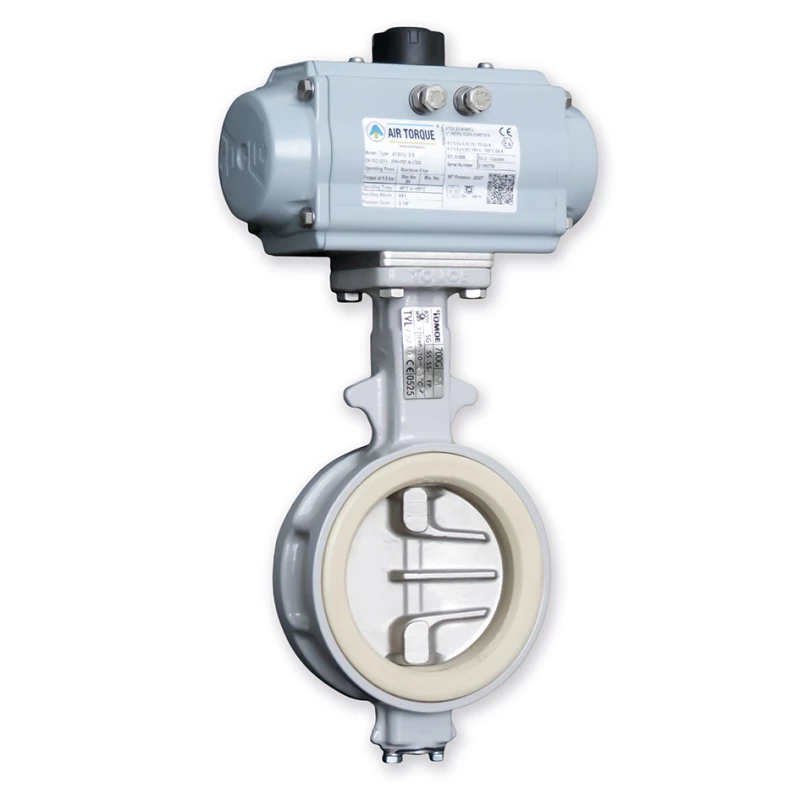

Equipped with top flange according to ISO 5211 for easy mounting with an actuator.
Tomoe Series 700G (DN40-DN300).
Tomoe series 705G (DN300) semi lug.

Additional information

valve blade smooth polished "mirror finish" or equipped with Viwateq® protection for sticky media such as powders or in areas where frequent cleaning is not done to prevent bacterial growth.

Type	KP-1060 SEP
Material	Nodular Cast Iron EN-GJS-450-10 (with epoxy coating)
Pressure class	PN16 DN40 to DN200
	PN10 DN250 and DN300 larger sizes on request
Disc	STAINLESS STEEL EN 10213-4 (AISI 316)
Seat	STAINLESS STEEL EN 10088-3
Handle	SEP white rubber ( Silicon Ethylene Propylene)
Gearbox	Nodular Cast Iron, stainless steel wormshaft and cast iron handwheel
Face to face	EN 558-1 series 20
Connection	DN40 to DN300 DIN PN10/16 and ANSI 150#
	DN300 DIN PN10 and ANSI 150# (option PN16)
Flow rate	liquid up to 3m/sec

Temperature	continuous -10 to 80ºC
	suitable for frequent cleaning with hot water and low-pressure steam
