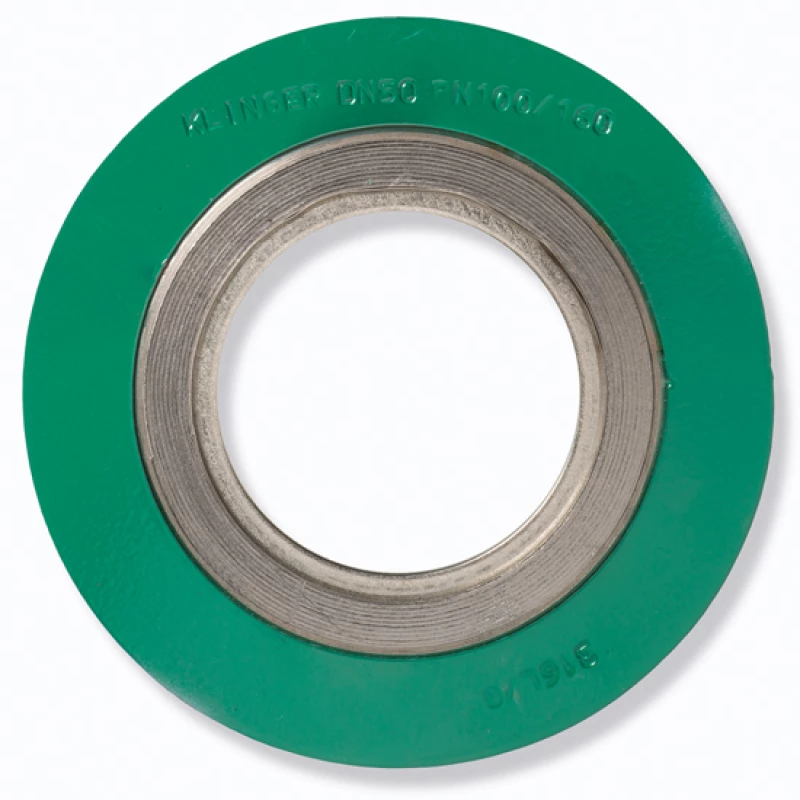

Graphite-filled KLINGER Maxiflex DIN | CRIR

Suitable for: water, steam, oil and many chemicals

This gasket gives between "raised face" DIN flanges a blowout safe high pressure seal.

* = sizes are not listed in EN1514-2

other materials, non-standard dimensions and/or loose elements from our own factory

Specifications

Type	CRIR
Material	Graphite/316L : element Carbon steel : outer ring stainless steel 316L : inner ring
Max. temperature	450º-600ºC*
Max. pressure	250 bar

*depending on specific application.

Dimensions are according to EN1514-2, suitable for flanges according to EN1092
Dimensions are according to B16.20, suitable for flanges according to B16.5 (≤24) or B16.47A or B (>24")

Contact

For more information about our Maxiflex spiral wound gaskets, please contact us at:

afdichtingen@klinger.nl
