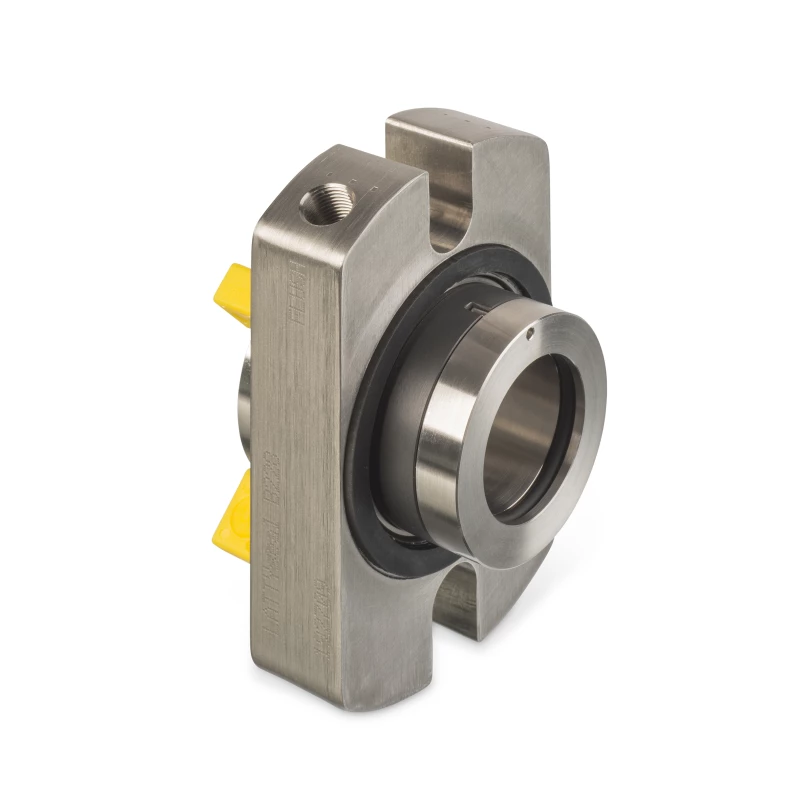

Cartridge Latty seal | B 22810
Running surfaces silicon carbide/carbon, direction of rotation independent, stationary, balanced
Suitable for: aggressive and slightly abrasive media. Very universal depending on sliding ring and elastomer choice.
- This cartridge seal is stationary constructed, direction of rotation independent and very universal in size, so it fits many pump brands.
- Installation is very easy.
- After use, all wearing parts are easy to replace.
- Measurement for installation not necessary.
- During assembly, it is fully enclosed and all vulnerable parts are protected.
- Standard with 1/8" spool connection.
Urgency or questions about availability?

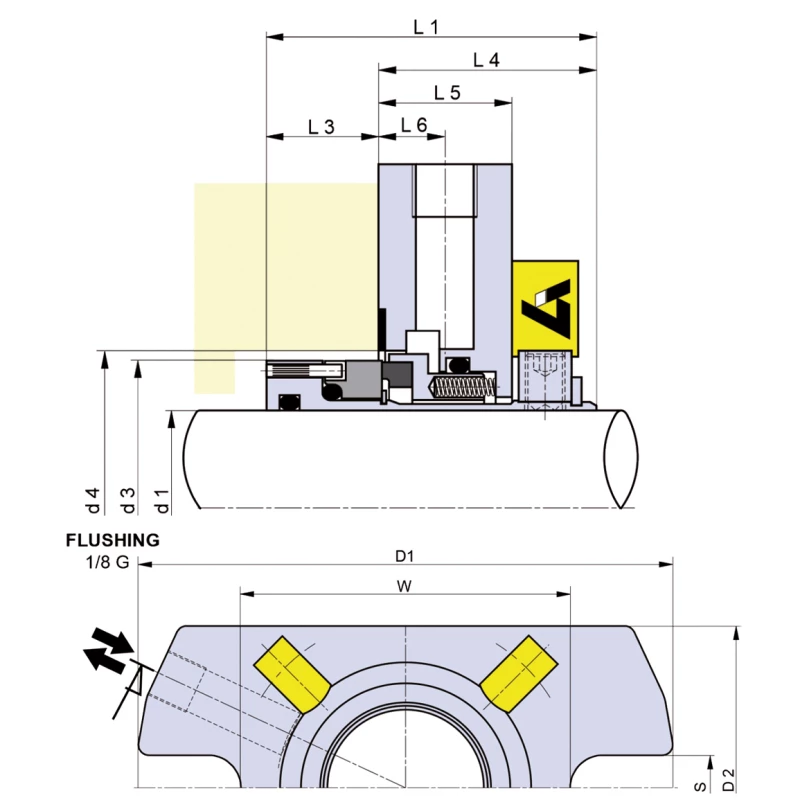

- L1=50, L3=17, L4=33, L5=20
- Overhaul consisting of cleaning, (dis)assembly and replacement of all wear parts, can be provided by us.
- Option: also available in inch sizes.
- Overhaul consisting of cleaning, (dis)assembly and replacement of all wear parts, can be provided by us.
- Option: also available in inch sizes.
Specifications
| Type | B 22810 |
| Material | AISI 316 |
| Slip ring rotating | Silicon carbide (U6 = DIN Q1) |
| Slip ring stationary | Carbon (B) (alternatively also with silicon carbide) |
| Elastomer | Viton (alternative EPDM) |
|
|
|
| Max. pressure | 15 bar |
| Max. temperature | 180ºC |
| Max. speed | 10 m/s |
|
|
|
| Approved/tested by | ATEX II 2 GD ck IIA-IIB T6..T3 |
| (application in explosive environments) | |
