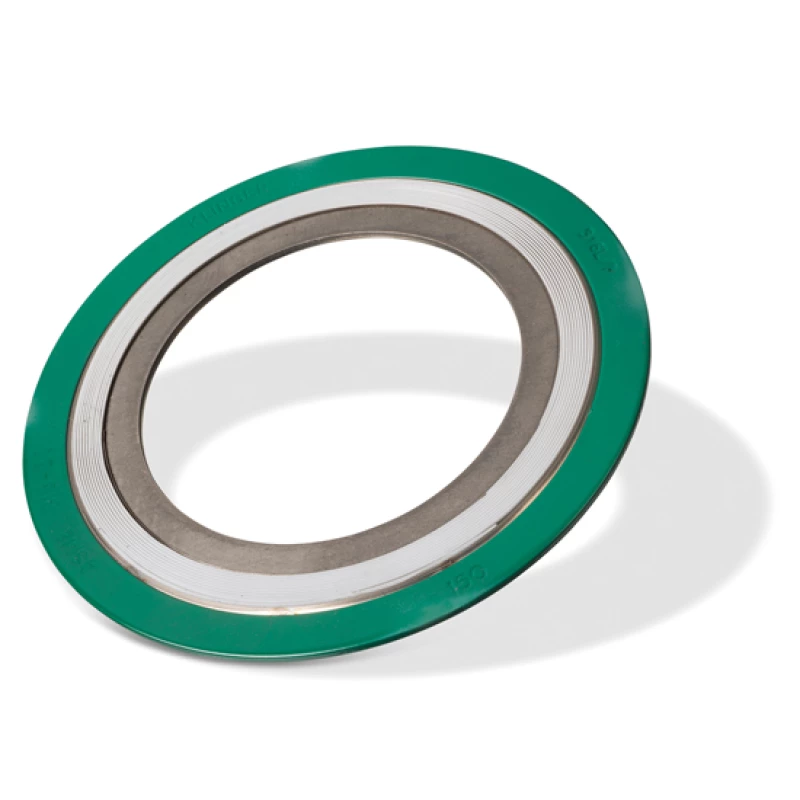

PTFE-filled KLINGER Maxiflex ANSI | CRIR

Suitable for: chemicals, where graphite cannot be applied

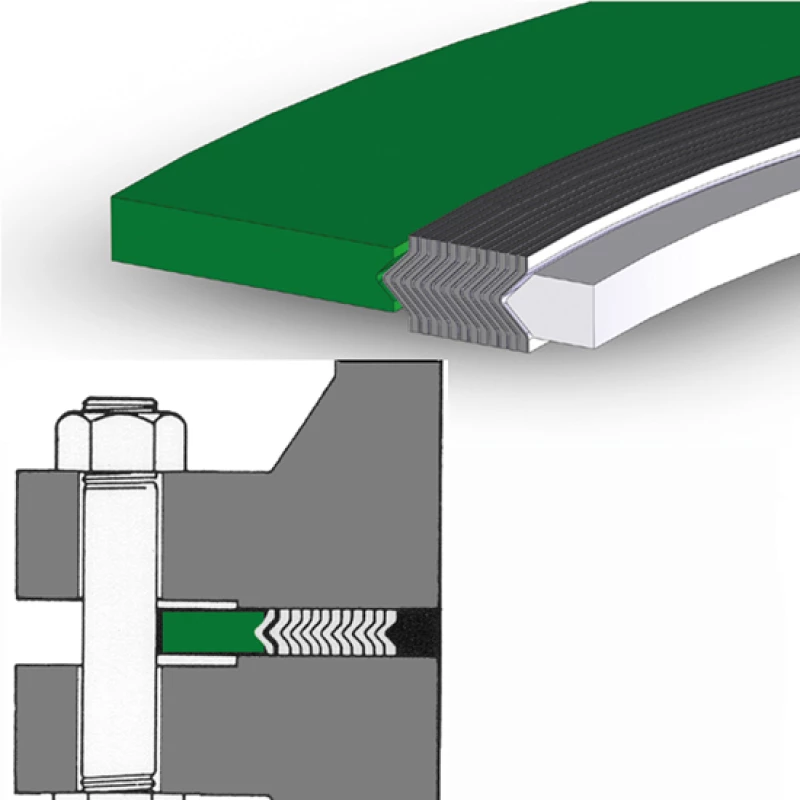

This gasket gives between "raised face" ANSI flanges a blowout safe high pressure seal.

Additional information

Spiral wound seals

Urgency or questions about availability?

other materials, non-standard dimensions and/or loose elements from our own factory

Type	CRIR
Material	PTFE /316L : element Carbon steel : outer ring stainless steel 316L : inner ring
Max. temperature	250º
Max. pressure	100 bar

Dimensions are according to EN1514-2, suitable for flanges according to EN1092
Dimensions are according to B16.20, suitable for flanges according to B16.5 (≤24) or B16.47A or B (>24")
