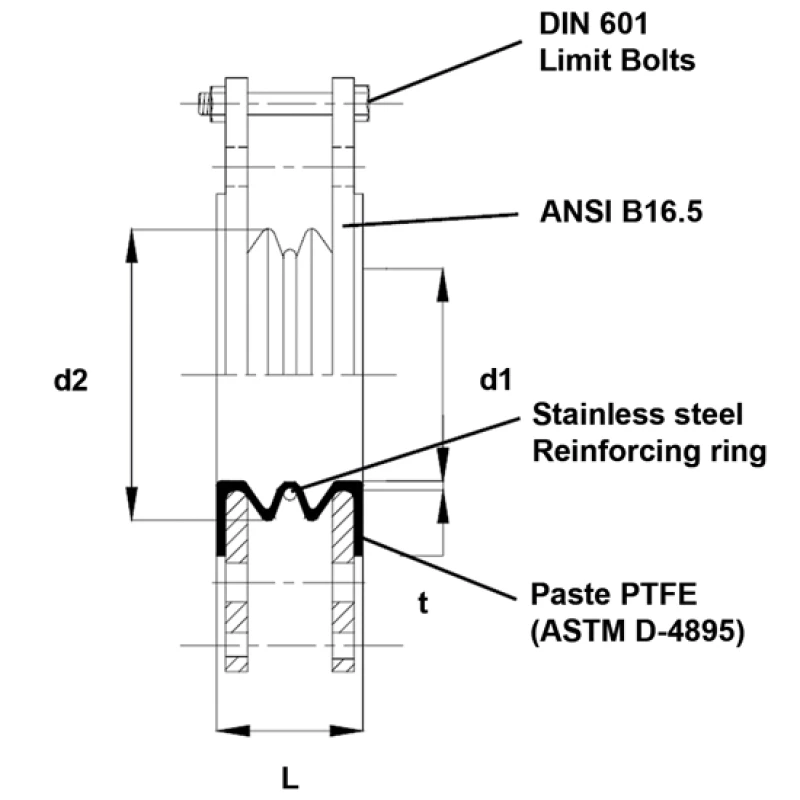

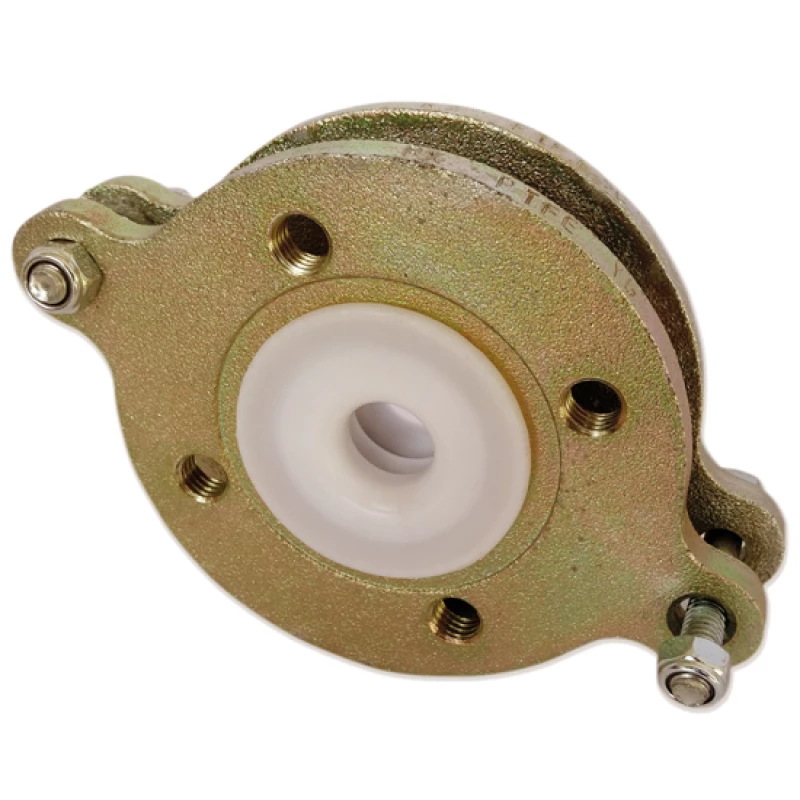

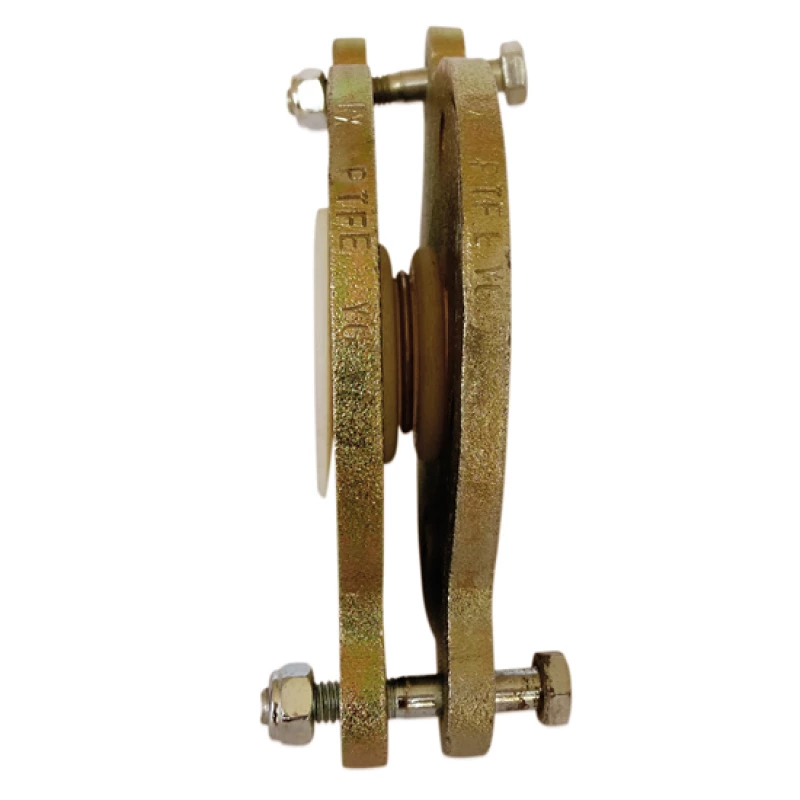

PTFE expansion joint | 2 waves

Flange connection ANSI B16.5 class 150 LBS

• Resistant to chemicals except fluorine compounds halogens and liquid alkali metals.
• The PTFE is flared at the flanges so the metal flanges do not come into contact with the medium.
• With a metal outer jacket also suitable for high pressures at high temperatures.
• Insensitive to many movements, material does not tire easily.
• Equipped with tie rods as standard.
• For standard compensators with 2, 3, or 5 waves, pressure resistance decreases rapidly with temperature rise. See the tables for the various types in expanded page.
