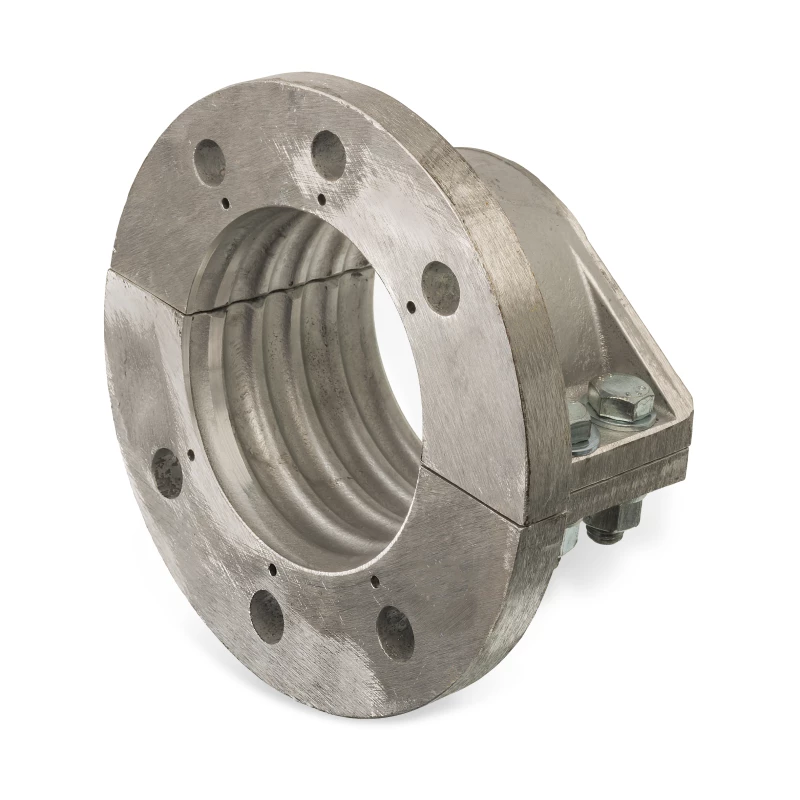

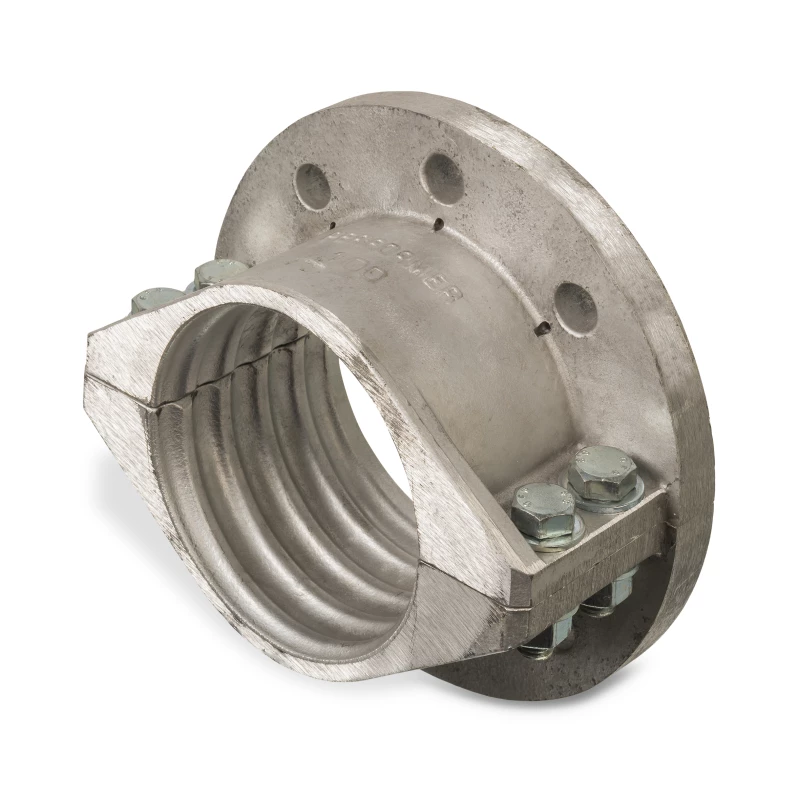

Aluminum Block-end coupling | Block-end

Suitable for: mounting to Performer hose

These patented flange couplings can be mounted quickly to hoses in a simple manner using normal tools.
Dismantling the couplings of (for e.g.) damaged hoses is also simple.
The couplings can be attached to each other and to appropriate flanges of equipment.

Urgency or questions about availability?

Specifications

Type	Block-end
Material	Aluminum
Max. working pressure	1D < 150 mm werkdruk 10 bar
	1D >150 mm working pressure 5 bar
Max. temperature	100ºC.

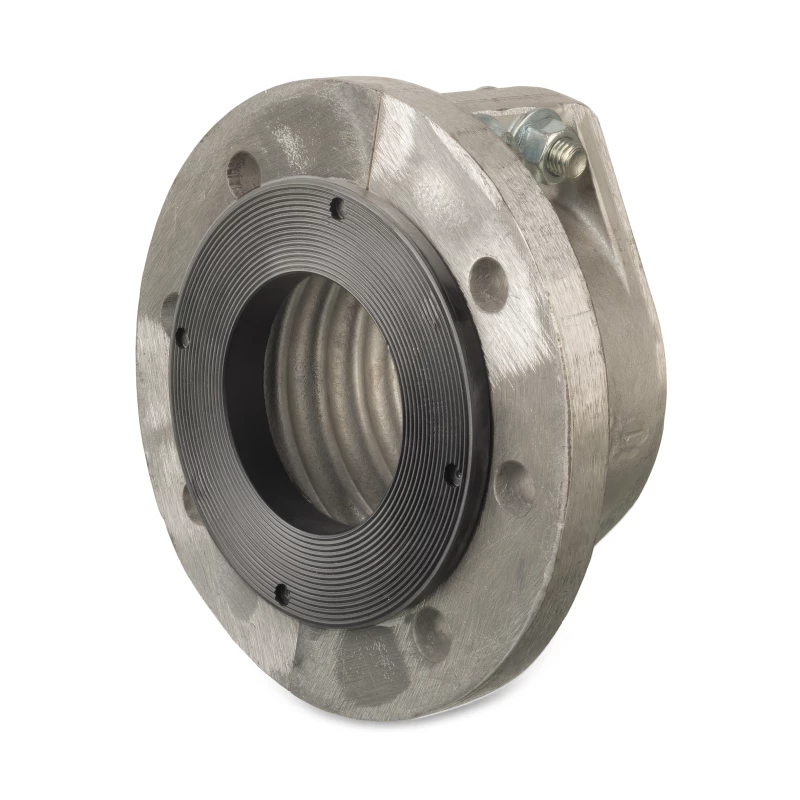

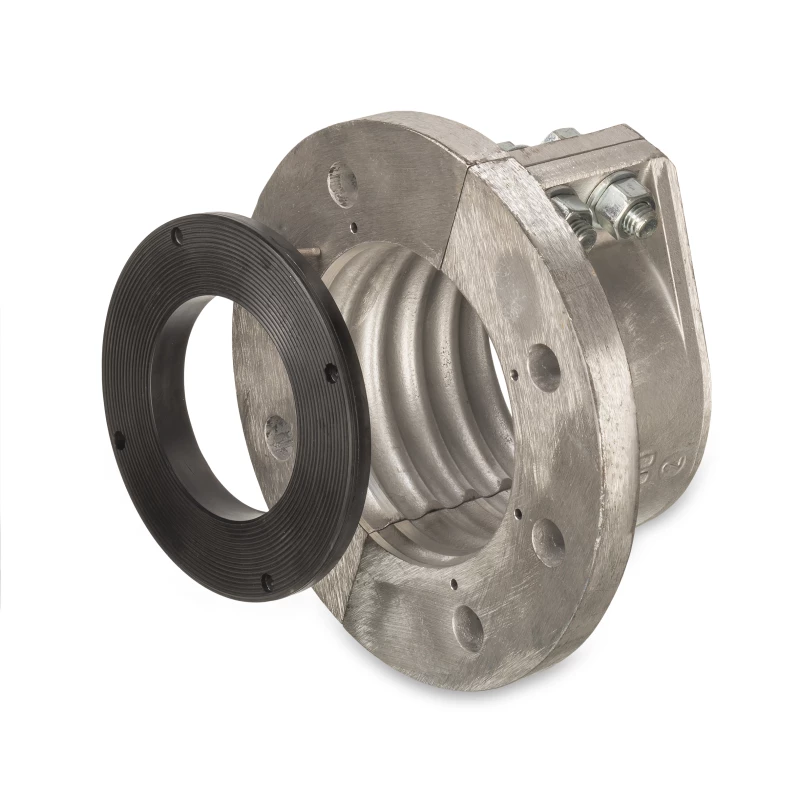

Complete with gasket, bolts, nuts and washers.

Contact

For more information on our industrial hoses and accessories, please contact us at:

slangen@klinger.nl
