Phenolic isolation kit, KLINGER, ANSI | E

Suitable for: oils and hydrocarbons, where flange connections need to be electrically insulated sealed.

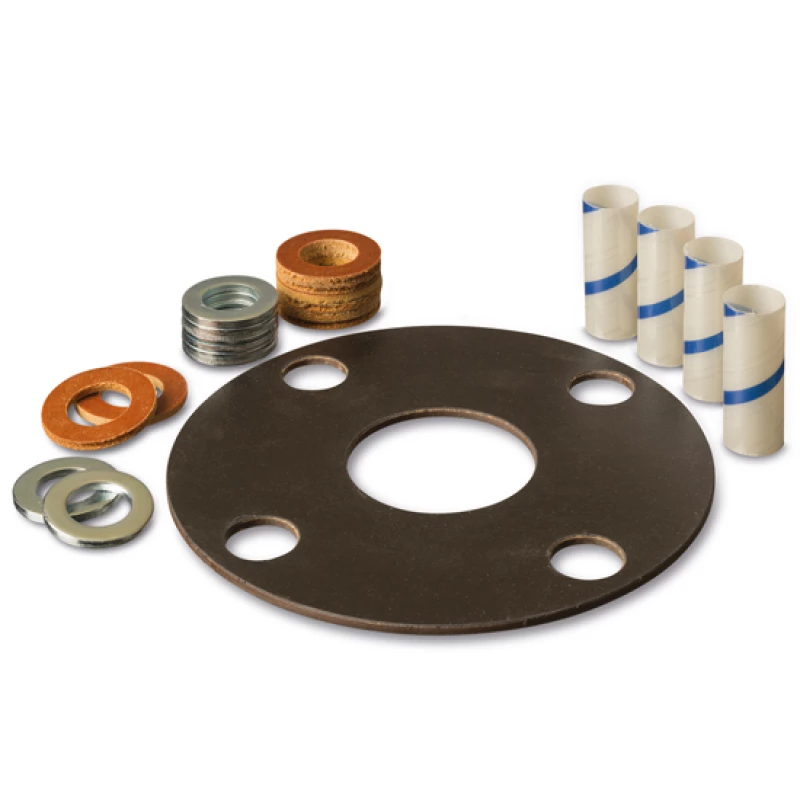

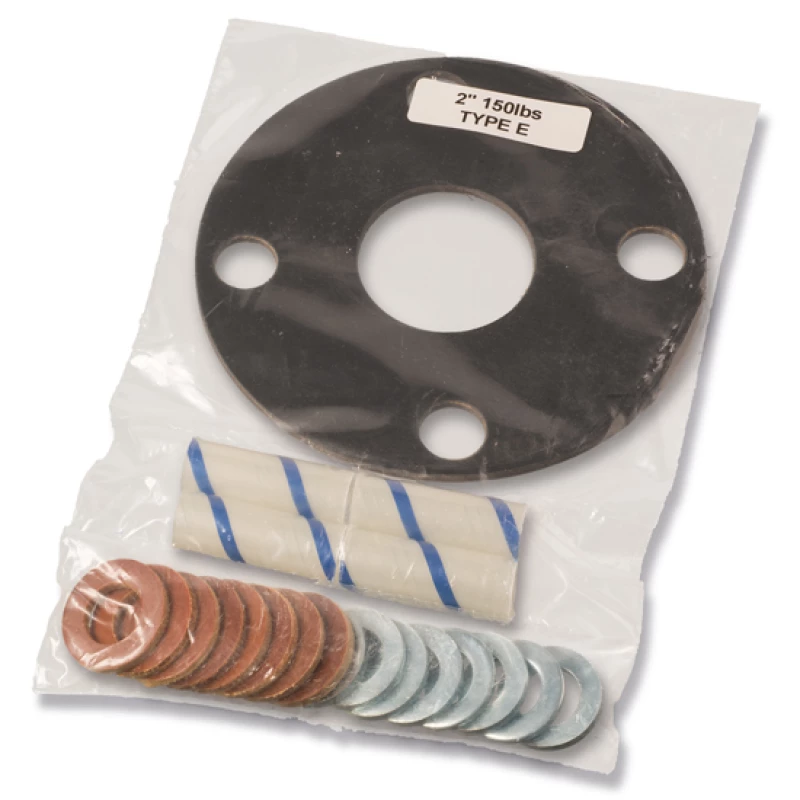

The kit includes phenolic gasket with neoprene circulation, phenolic sleeves for the bolt flanges and phenolic/galvanized steel washers.

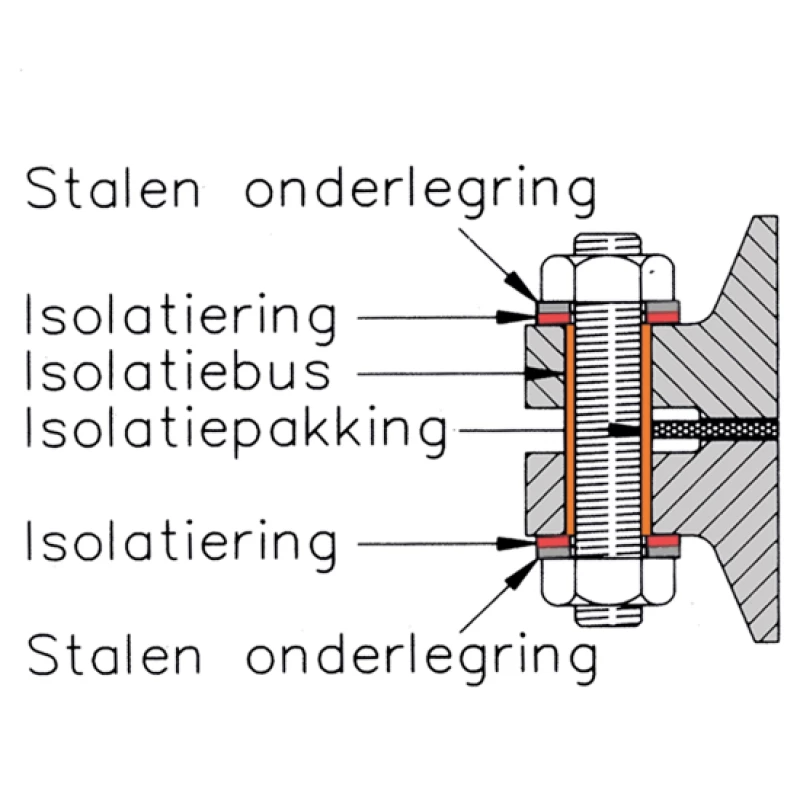

This combination provides an electrically insulated flange connection.
Suitable for "full face" flanges.

Additional information

Insulation sets

Type	E
Material	Phenolic gasket with neoprene circulation

Max. temperature	100ºC
Max. pressure	40 bar

Max. dielectric voltage in volts/mm 500
