Phenolic isolation set, KLINGER, DIN | E
DIN standard (Full Face)
Suitable for: oils and hydrocarbons, where flange connections must be sealed electrically insulated

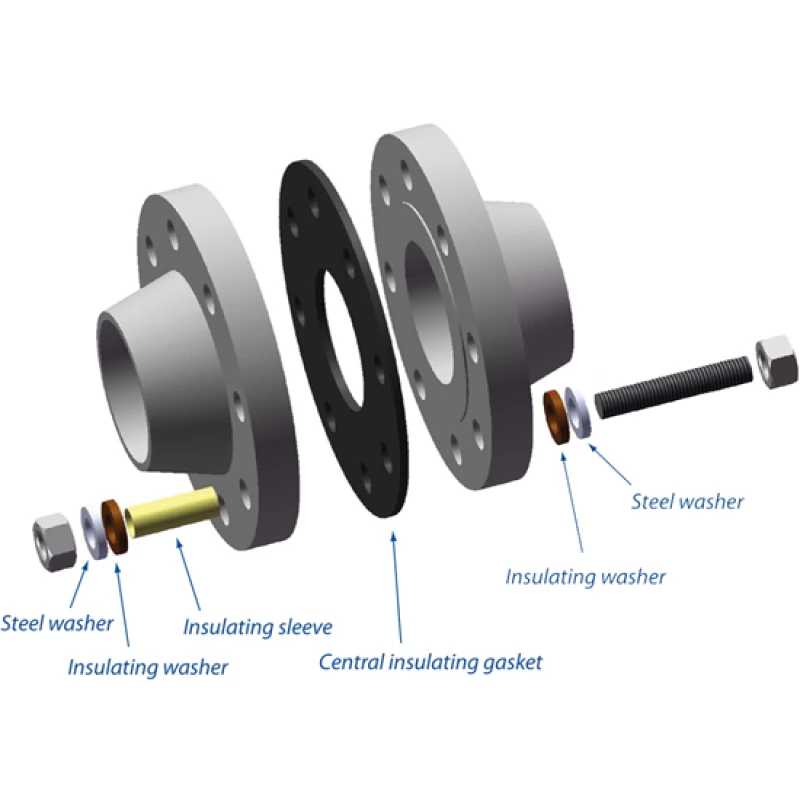

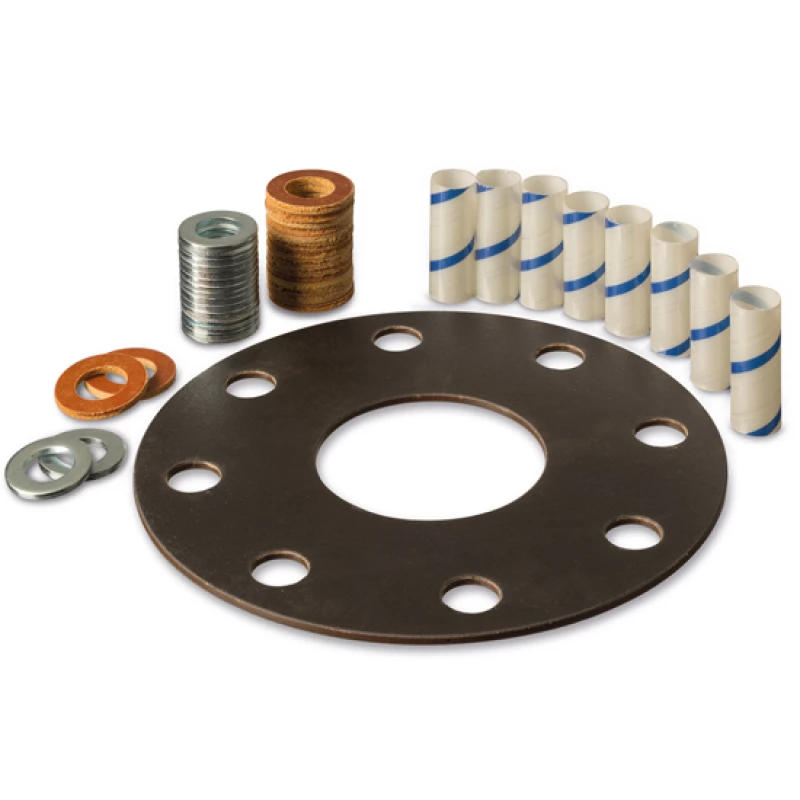

- The kit includes phenolic gasket with neoprene circulation, phenolic sleeves for the bolt flanges and phenolic/galvanized steel washers.
- This combination provides an electrically insulated flange connection.
- Suitable for "full face" flanges.
Specifications
| Type | E |
| Material | Phenolic gasket with neoprene circulation |
|
|
|
| Max. temperature | 100ºC |
| Max. pressure | 40 bar |
|
|
|
|
Max. dielectric voltage in volts/mm 500
|
|
Contact
For more information about our electrically insulating gasket sets, please contact us at:
