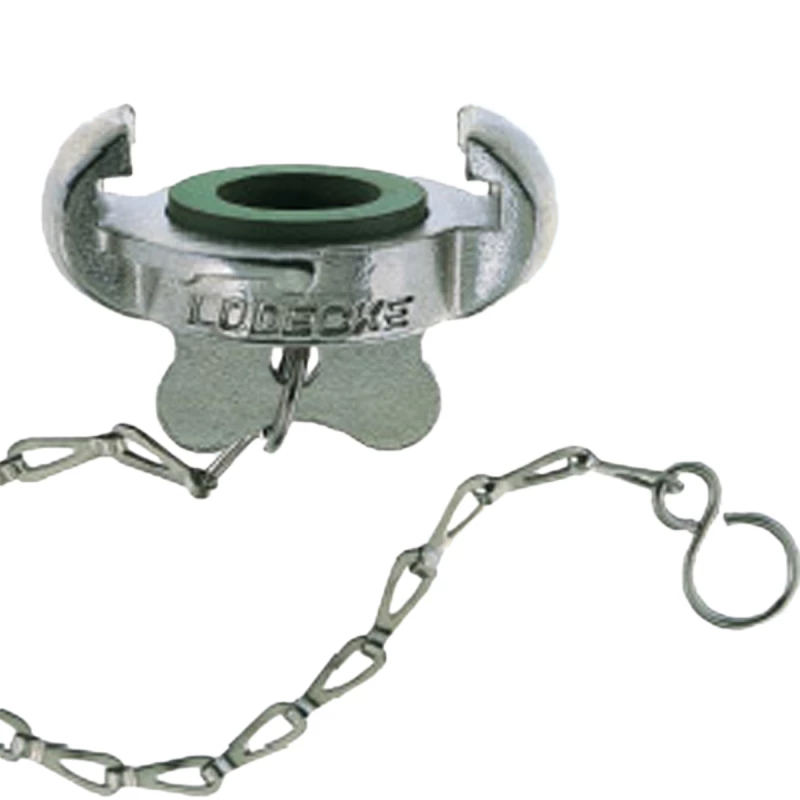

Stainless steel air coupling | EKO/EKM
End cap
Suitable for: compressed air
- Half-Quick release couplings, fitted with claws and easy to couple. Two lip seals (one in each of the two couplings), located in a seat, provide the seal.
Specifications
| Type | EKO/EKM |
| Material | 1.4401 (STAINLESS STEEL 316) |
| Sealing ring | FPM |
| Ridge distance | 42mm |
|
|
|
| Max. working pressure | 16 bar |
| Max.temperature | -30º to +200ºC |
| Execution | according to DIN 3489 |
|
|
|
