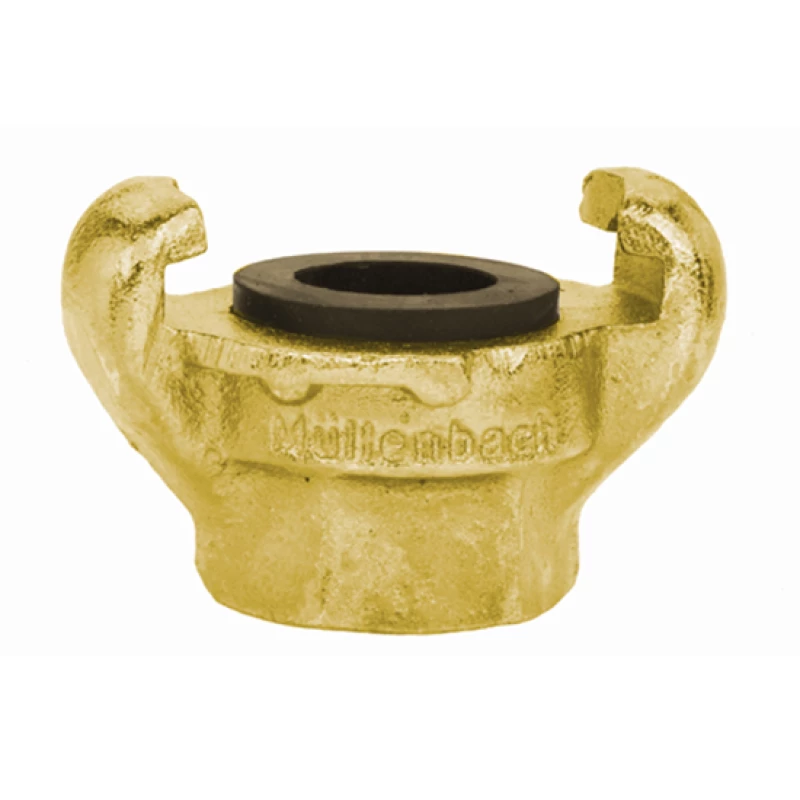

Cast iron air coupling | KIG

Suitable for: compressed air

Half-Quick release couplings, fitted with claws and easy to couple. Two lip seals (one in each of the two couplings), located in a seat, provide the seal.

Specifications

Type	KIC
Material	Galvanized cast iron (chrome-VI-free)
Sealing ring	Nitrile
Ridge distance	42mm

Max. working pressure	10 bar
Temperature	-40ºC to +95ºC
Execution	according to DIN 3489
Option	special sealing rings 200ºC
