NR suction/Delivery hose | Performer GL-AD 10P

Suitable for: transport of abrasive materials

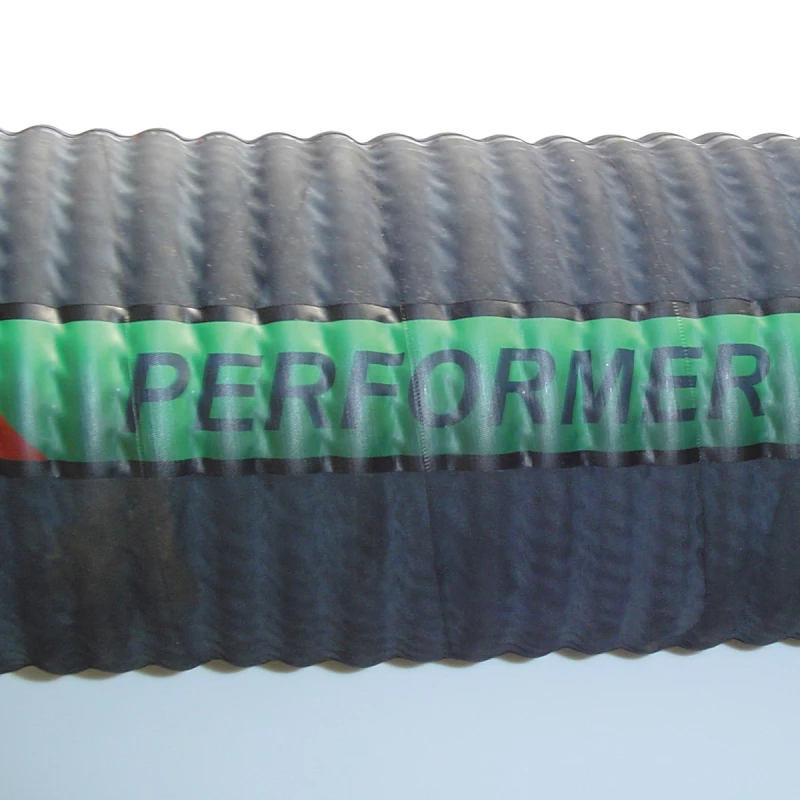

The Performer GL-AD 10P is a highly wear-resistant suction/Delivery hose.
The fittings for this suction/Delivery hose are Block End type.
Hoses Fitted with Bloc-End couplings are deployable up to the following maximum working pressures: Diameter < 150 mm: 10 bar. Diameter > 150 mm: 5 bar.
The spiral should always be connected to the couplings.

Additional information

Hoses and Expansion Joints

Video: Hose management; worry-free and safe management of your hoses

Video: Installations optimization at Yakult Europe BV

Urgency or questions about availability?

Type	Performer GL-AD 10P
Material
Inner Wall	NR light brown
Exterior wall	EPDM black, corrugated
Inlagen	Reinforced with textile inlays in which a steel coil is embedded
Pressure class	10 Bar, see table
Temperature	-30°C to +70°C
