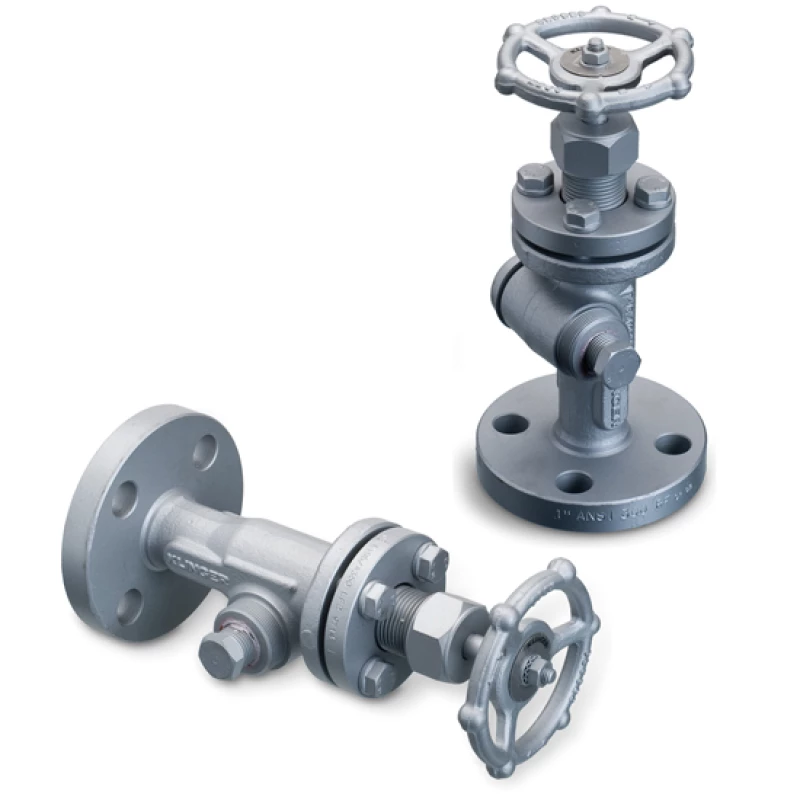

Steel KLINGER gauge valves | RAV
Flange connection PN 40/PN 64 or ANSI 150/900 lbs.
Suitable for: water, steam, gases, glycol and ammonia etc.
- RAV taps are suitable for use with reflex or transparent gauges.
- Ball protection standard.
- Also available in stainless steel316
Urgency or questions about availability?
To be specified when ordering
- type
- application
- pressure, temperature and medium
- connection in DIN (DN15 to DN50) or ANSI (1/2" to 2") or male thread with union nut
Specifications
| Type | RAV |
| Material | A 105 N |
| Top part | A 105 N |
| Handwheel | A 105 N |
| Weight operation | A 105 N |
| Spindle | A 410 |
| Seat | AISI 316 |
| Threaded canister | AISI 316 |
| Gland packing | Graphite |
| Safety Ball | AISI 316 |
| Bolts / nuts | B7 / 2H |
