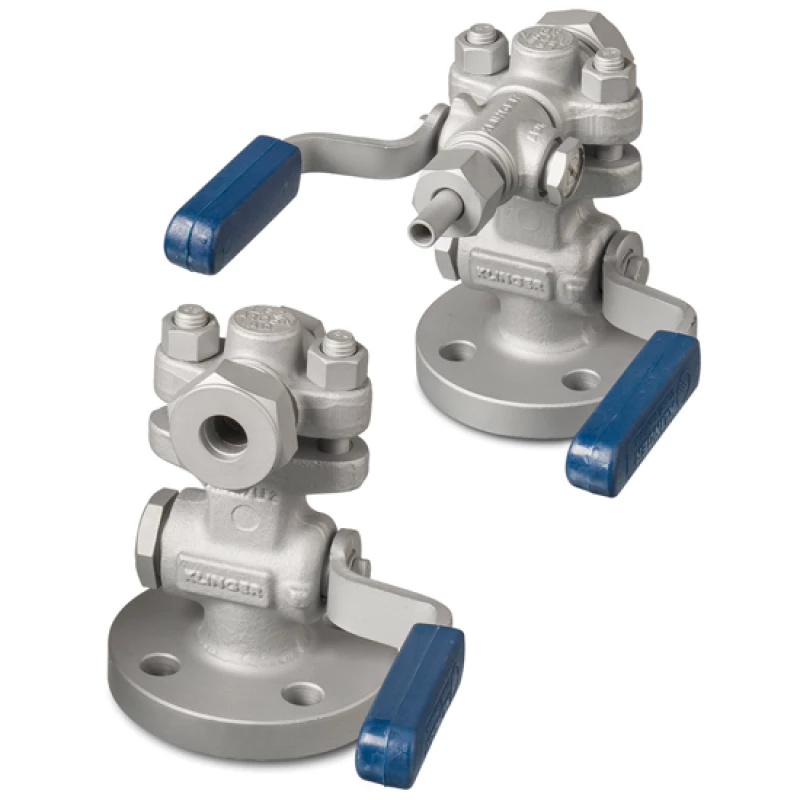

Steel KLINGER gauge valves | D 8

Steel KLINGER gauge valves | D 8

Steel KLINGER gauge valves | D 8

Flange connection PN 40

Suitable for: reflex and transparent gauges

Left as well as right model available (easy to convert).

Steel KLINGER gauge valves | D 8

Steel KLINGER gauge valves | D 8

Urgency or questions about availability?

Sight Glasses & Level Gauges

or

Also available

other connections: thread or flange

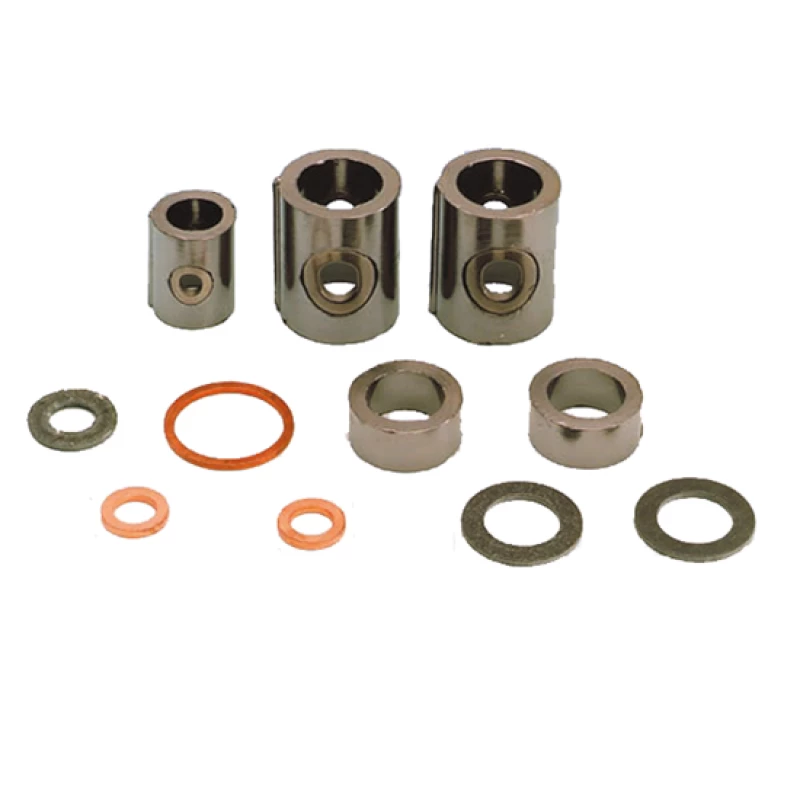

As a loose part: pressure ring D16 mm. Article number: 5311006939001

Specifications

Type	D 8
Material	Forged steel A 105 (FS/H)
Cylinder	RVS 316
Shared ring	RVS 316
Stuffing box	Graphite/impregnated
Pressure ring	Steel A105
House blow-off valve	Forged steel A 105

Connection	Flange connection DN 20/25

Temperature	-10ºC to 400ºC
