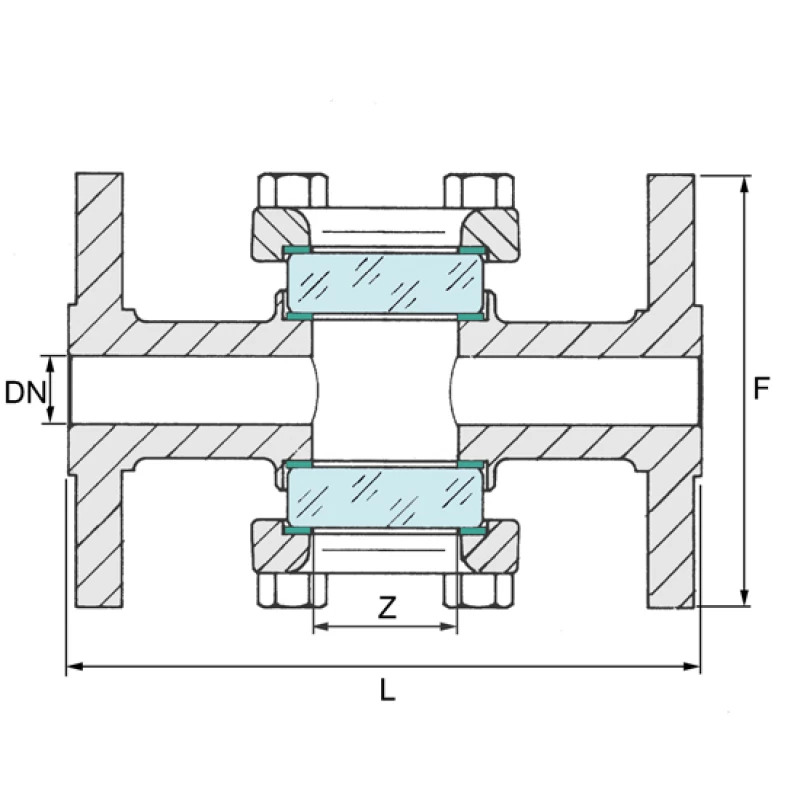

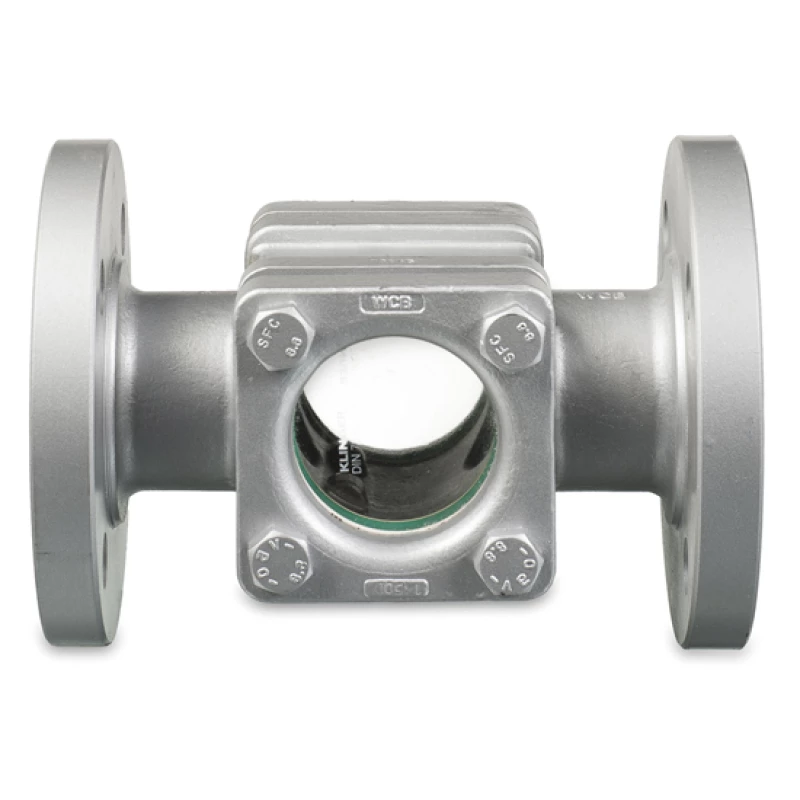

Stainless steel sight gauges | KP-4772
Flange connection PN 16 and PN 40
Suitable for: water, condensate, oil, and chemicals
- With thermally pre-stressed borosilicate glasses.
- extremely pressure and abrasion resistant.
- resistant to high temperatures.
Also available
- ANSI flange connection
- with flow indicator
- thread connections
- NPT and BSP Threaded connection
- welding connection
- different build length
Specifications
| Type | KP-4772 |
| Material | Stainless steel GX5CrNiMo19-11-2 / stainless steel 1.4408 |
| Pressure class | PN 40 and PN 16 |
| Glass print piece | Stainless steel X2CrNiMo17-12-2 / X6CrNiMoTi 17-12-2 |
| Glass | Hardened borosilicate DIN 7080 |
| Seal | Asbestos-free |
| Bolts | Class A4 |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | Flange connection EN1092-1 |
| Pressure | DN 15-20-25 40 bar |
| DN 32-40-50 25 bar (pressure class PN40 on request) | |
| DN 65-85-100 16 bar (pressure class PN25/PN40 on request) | |
|
|
|
| Temperature | -29ºC to 300ºC max |
