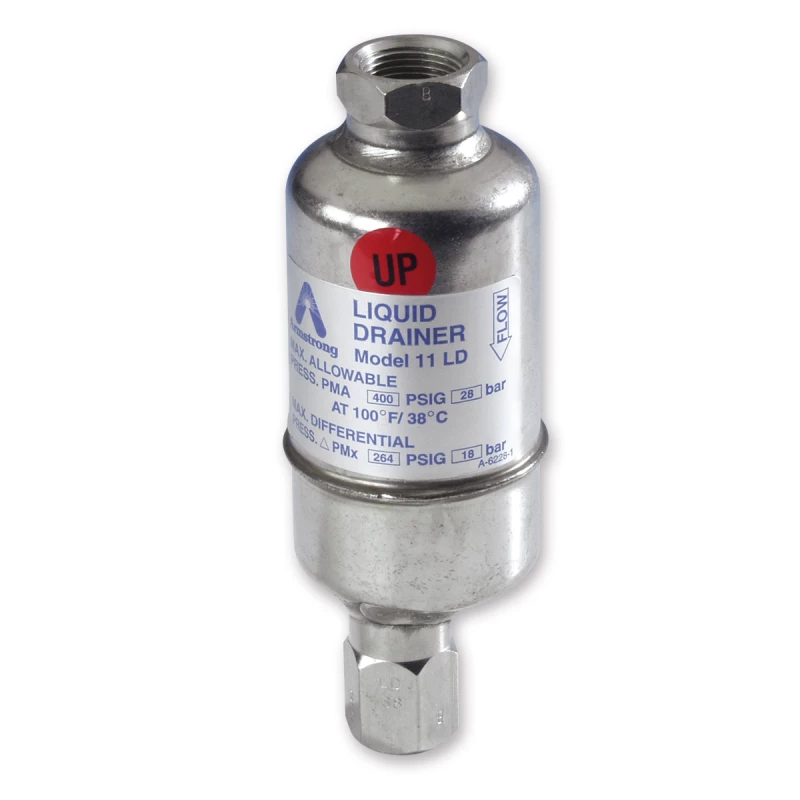

RVS liquid drainer | LD
Connection top in, bottom out
Suitable for: compressed air and corrosive gases
- Float type.
- Light and compact.
- Entirely stainless steel.
Max pressure difference at a specific gravity of 1.0 and a temperature of 38ºC
Specifications
| Type | LD |
| Material | RVS 304L |
| Valve and seat | AISI 440 STAINLESS STEEL |
| Float | AISI 304 STAINLESS STEEL |
| Float mechanism | AISI 304 STAINLESS STEEL |
| Working pressure max | 39 bar at s.g. 1.0 kg/dm3 |
|
|
|
| Connection | 3/4" in, 1/2" out |
|
|
|
| Temperature | 260ºC. |
|
|
|
| Also available | Stainless steel 316 valve and seat |
| Other versions, larger capacities | |
| Other pressure ranges | |
| Fluid dischargers for 2 media of different specific gravity. | |
|
|
|
| Specify when ordering | specific gravity, temperature and pressure(difference) |
