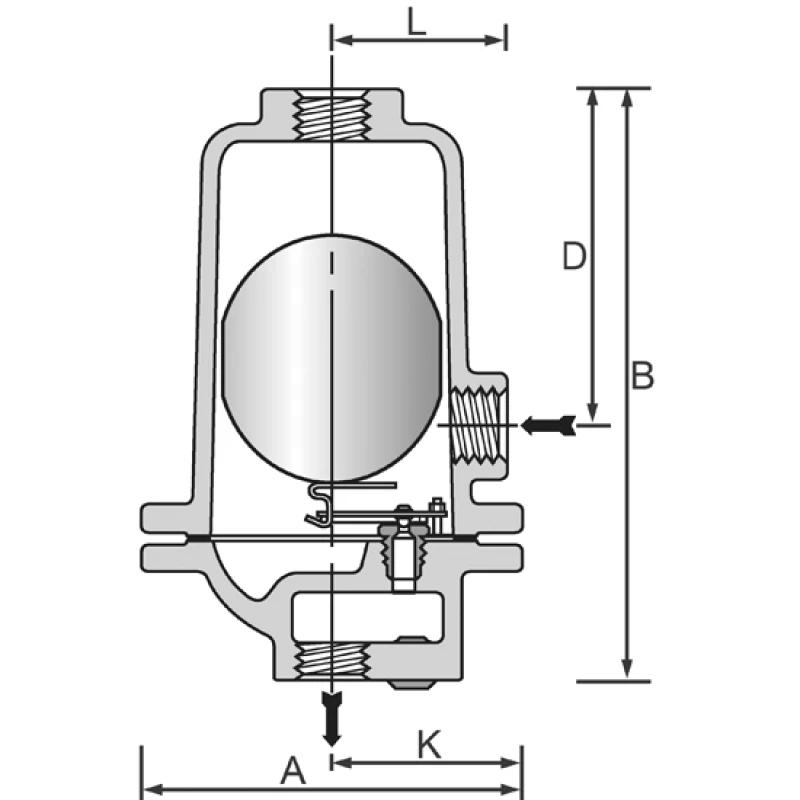

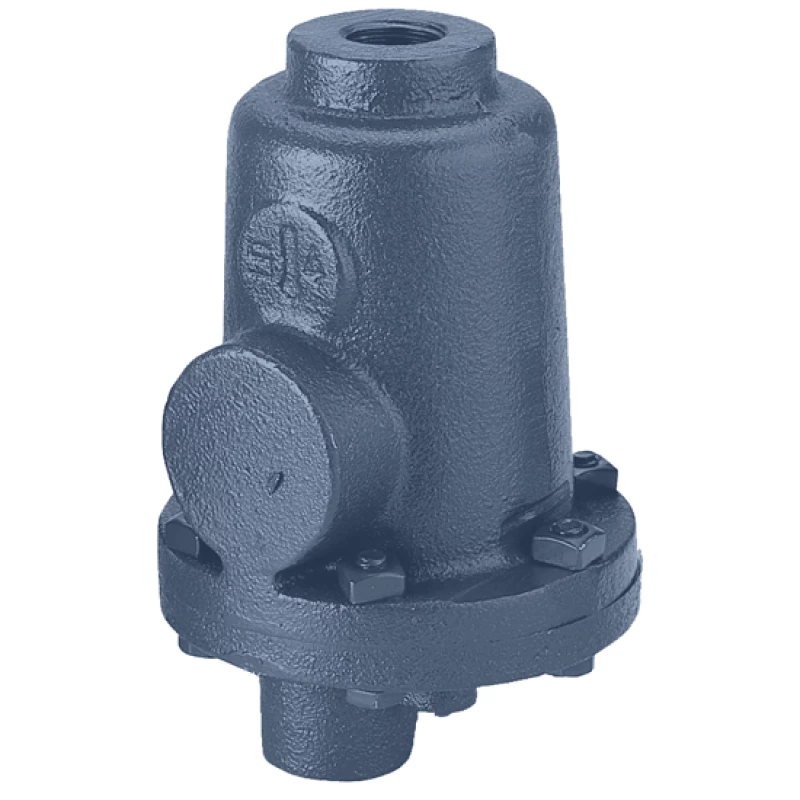

Cast iron liquid drainer | 1-LD
With top, bottom and side connection
Suitable for: compressed air and other non-corrosive gases
- Float type.
Urgency or questions about availability?
*) Max differential pressure at a specific gravity of 1.0 and a temperature of 38ºC
Specifications
| Type | 1-LD |
| Material | Cast Iron |
| Valve and seat | AISI 440F STAINLESS STEEL |
| Float | AISI 304 STAINLESS STEEL |
| Float mechanism | AISI 304 STAINLESS STEEL |
| Working pressure max | 20 bar at s.g. of 1.0 |
|
|
|
| Connection | 1/2" in, 1/4" out |
|
|
|
| Temperature | 93ºC. |
|
|
|
| Also available | Other versions, larger capacities |
| Other pressure ranges | |
| Fluid dischargers for 2 media of different specific gravity | |
|
|
|
| Specify when ordering | specific gravity, temperature and pressure(difference) |
Contact
For more information on our air vents & liquid drains, please contact us at:
