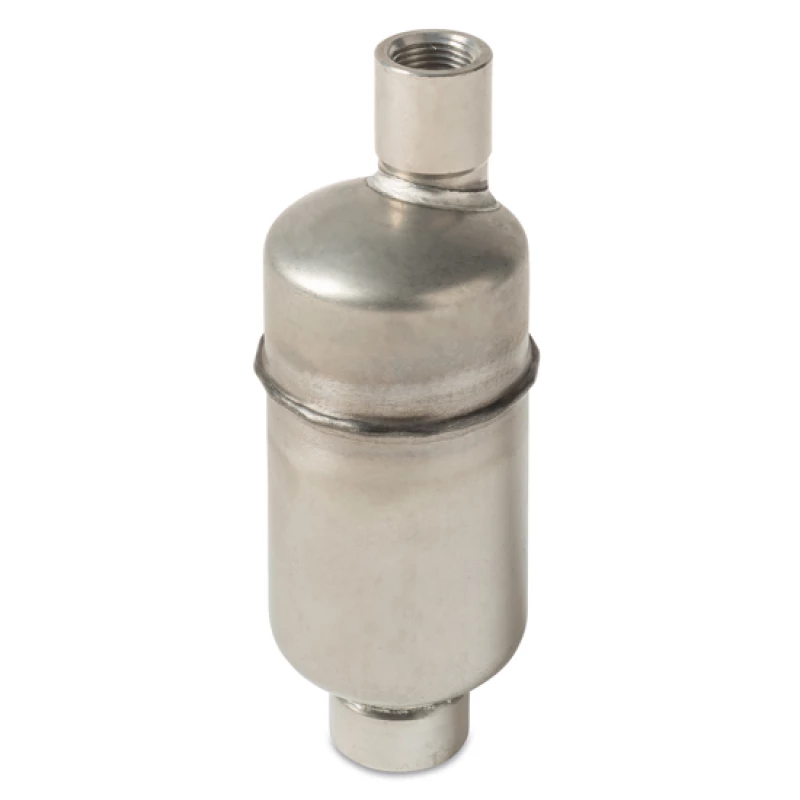

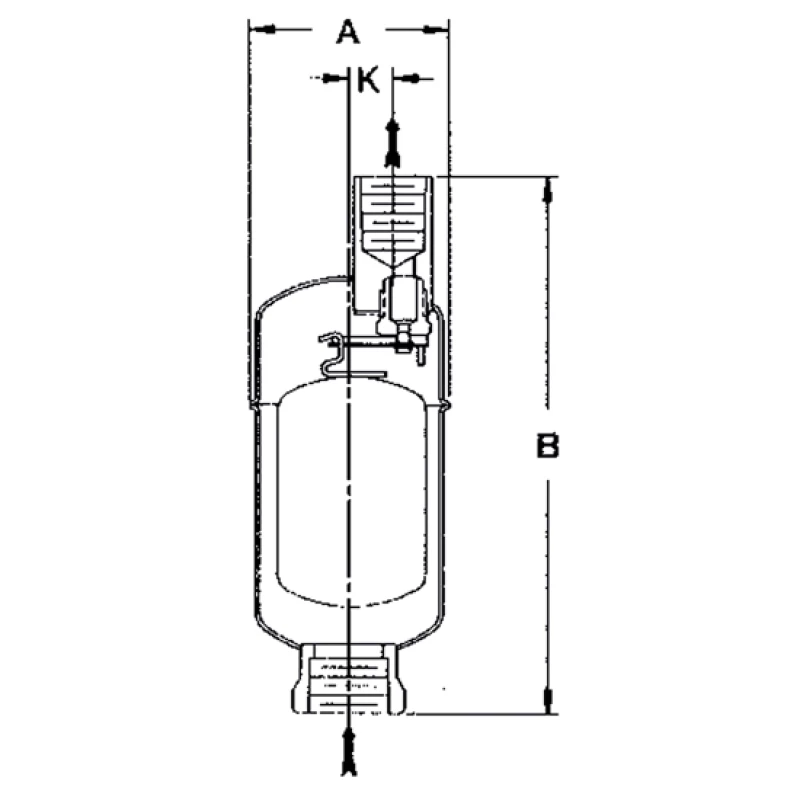

Stainless steel air vent | 11-AV
Connection bottom in, top out
Suitable for: extraction of air and other gases from liquid systems
- Float type.
- Bottom in top out.
- Entirely stainless steel.
- Light and compact.
- Not dirt sensitive.
Urgency or questions about availability?
*) Max pressure difference at a specific gravity of 0.75 and a temperature of 38ºC
Specifications
| Type | 11-AV |
| Material | AISI 304L STAINLESS STEEL |
| Valve and seat | AISI 440 stainless steel (also available in AISI 316) |
| Float | AISI 304 STAINLESS STEEL |
| Float mechanism | AISI 304 STAINLESS STEEL |
| Working pressure | max. 28 bar at s.g. of 0.75 |
|
|
|
| Connection | 3/4" in, 1/2" out |
| Temperature | 260ºC |
| Also available | Other versions, larger capacities |
| Other pressure ranges | |
|
|
|
| Specify when ordering | specific gravity, temperature and pressure(difference) |
