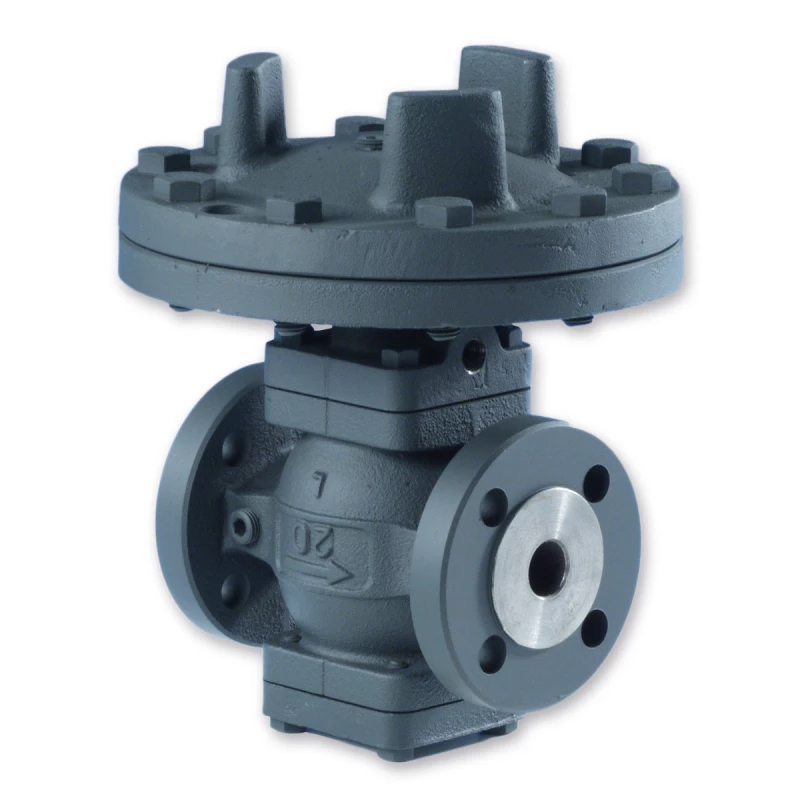

Nodular cast iron pressure reducer | GD-2000K
PN 25 with pneumatic control
Suitable for: steam, when pressure settings must be changed frequently, with dirty steam and difficult access to the regulator
- Air controlled reducer
- Large capacities
- Compact and low maintenance
- Set air pressure equals pressure to be reduced
Specifications
| Type | GD-2000K |
| Material | Nodular cast iron - ASTM A536 |
| Valve + Seat | AISI 420 STAINLESS STEEL |
| Diaphragm | AISI 304 STAINLESS STEEL |
| Range | 0.1-17.5 bar reduced pressure |
| Minimum pressure differential | 0.5 bar |
| Max pressure ratio | 85% of the inlet pressure |
| Leakage | <0,01% |
| Control accuracy | 2% |
| Working pressure max. | 20 bar |
|
|
|
| Connections | BSPT thread or PN 40 flange connection |
|
|
|
| Temperature | maximum 230ºC |
|
|
|
