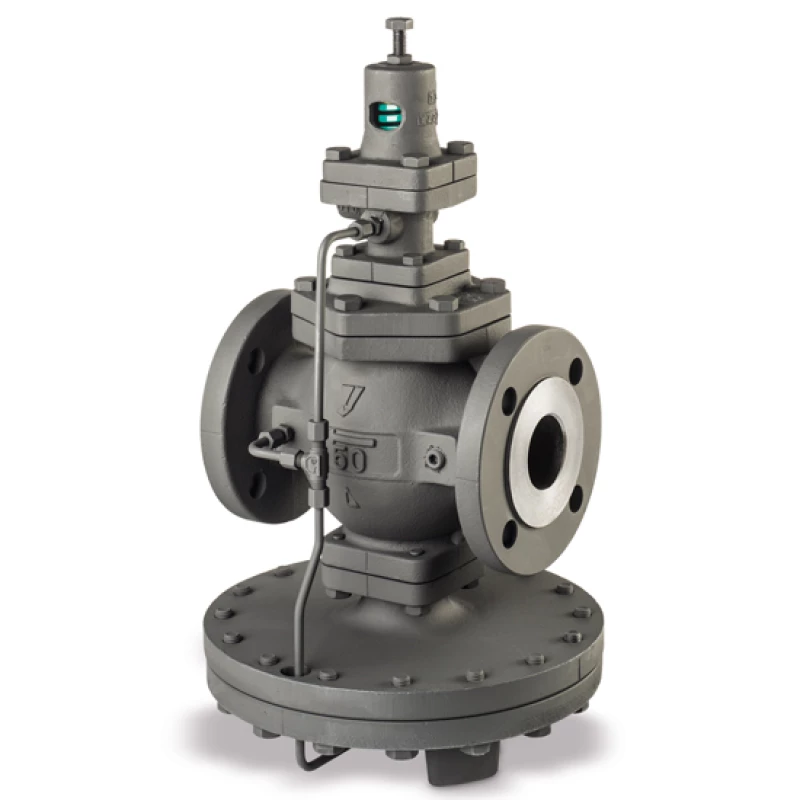

Nodular cast iron pressure reducer - GP-2000

Nodular cast iron pressure reducer | GP-2000

Nodular cast iron pressure reducer | GP-2000
Nodular cast iron pressure reducer | GP-2000
Nodular cast iron pressure reducer | GP-2000
gallery slider left
gallery slider right

PN 25 with external pilot valve

Suitable for: steam, large capacities

  • Pilot-controlled regulator.
  • Large capacities.
  • Compact and low-maintenance.
  • Self-acting, no auxiliary energy required.
Specifications
Downloads
Nodular cast iron pressure reducer | GP-2000
Nodular cast iron pressure reducer | GP-2000
Nodular cast iron pressure reducer | GP-2000
Previous series Next Series
DN 150 on request

Specifications

Type GP-2000
Material Nodular cast iron ASTM A536
Valve + Seat AISI 420 STAINLESS STEEL
Filter AISI 304 STAINLESS STEEL
Diaphragm AISI 301 STAINLESS STEEL
Spring AISI 304 STAINLESS STEEL
Spring green pressure range 1-14 bar reduced pressure
Spring yellow_ pressure range 0.1-0.2 bar reduced pressure
Spring yellow_ pressure range 0.2-1.5 bar reduced pressure
Min. pressure differential 0.5 bar
Max pressure reduction 85% of the inlet pressure
Max pressure ratio 201
Leakage <0,01%
Control accuracy approx. 2%
Working pressure max. 20 bar
Connections BSPT thread or PN 40 flange connection EN1092-1
Temperature Maximum 230ºC
Contact

For more information about our pressure reducing devices, temperature regulators, and safety valves, please contact us at:
