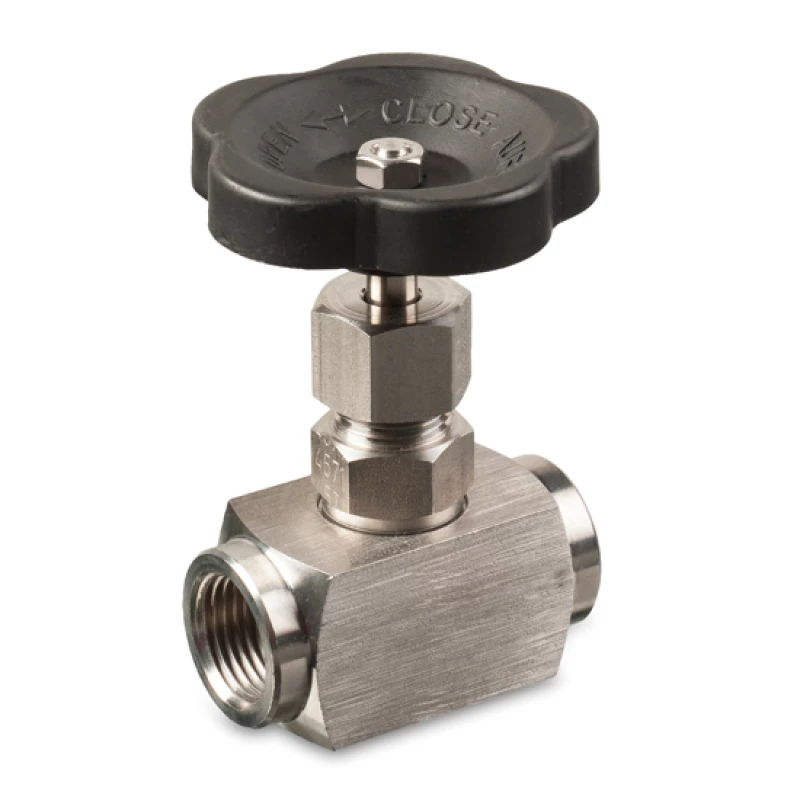

Stainless steel needle valve | KP-560
Threaded connection BSP or NPT
Suitable for: liquids and gases
Urgency or questions about availability?
Also available
- for higher pressures and temperatures
- other sizes / connections
- with male thread connections
Specifications
| Type | KP-560 |
| Material | Stainless steel X6CrNiMoTi17-12-2 |
| Pressure | up to 1/2" PN400, 3/4" & 1" PN200 |
| Disc | Stainless steel X6CrNiMoTi17-12-2 |
| Spindle | Stainless steel X6CrNiMoTi17-12-2 |
| Handwheel | Plastic from 1" steel |
|
|
|
| Connection | BSP Threaded connection EN1226-1 |
| NPT Threaded connection | |
| Temperature | Max. 250ºC |
| Pressure | Max. 400 bar (temperature and execution dependent) |
