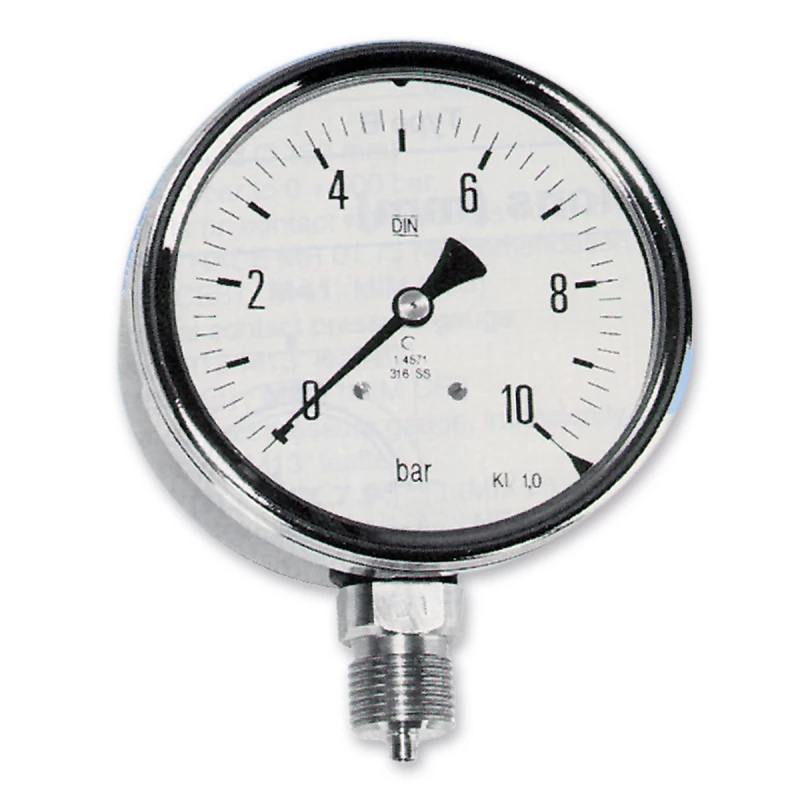

Stainless steel bourdon tube pressure gauge | KP-465 / KP-4651
cabinet diameter Ø 160 mm, G 1/2" bottom connection
Suitable for: industrial applications
- Type KP-4651 glycerin filled.
Also available
- Other scale layouts, measuring ranges and different connections
- capillary and separation diaphragm
- different filling
Specifications
| Type | KP-465 / KP-4651 |
| Material | STAINLESS STEEL |
| Cabinet material | RVS 304 |
| Bourdon type | RVS 316 |
| Display | Multi-layer safety glass, optional plastic |
|
|
|
| cabinet diameter | Ø 160 mm |
| Threaded connection | G 1/2" A |
|
|
|
| Measuring range | From -1/+15 to 0/+1600 bar |
| Accuracy | Class 1.0 |
| Protection class | IP 65 according to NF EN 60529 |
| "Blow-out disk" | Back of cabinet |
|
|
|
| Temperature | -40 to 60ºC |
| Medium | up to 100ºC, for higher temperatures a |
| syphon to be applied | |
Contact
For more information about our pressure gauges and accessories, please contact us at:
