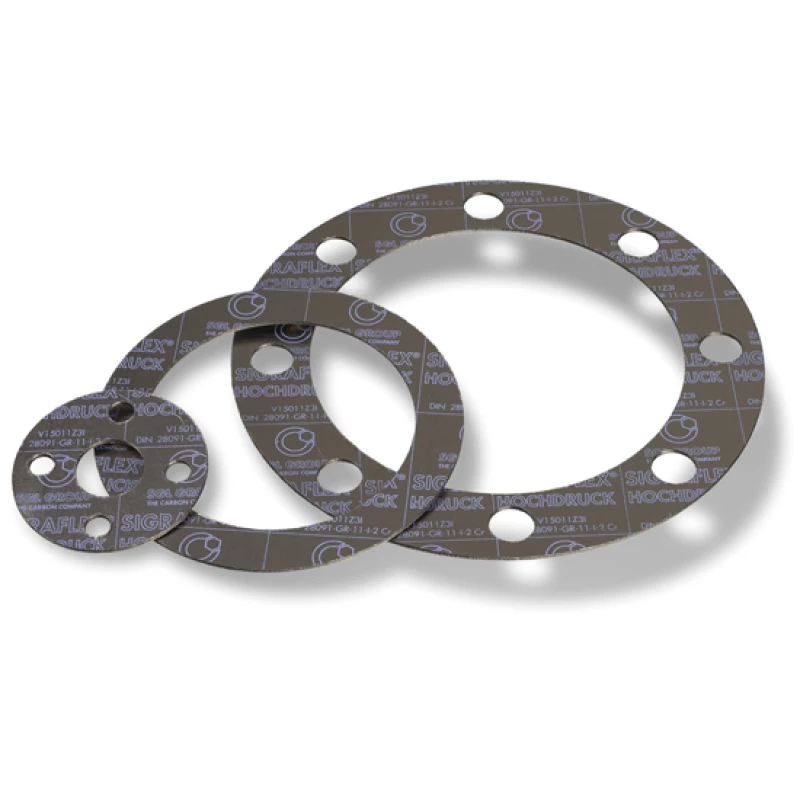

Graphite sealing | Sigraflex HD
Graphite with multiple flat stainless steel inserts.
Suitable for: steam, hot water and thermal oil
- THE IDEAL GRAPHITE SHEET FOR CUTTING OUT YOUR OWN GASKETS.
- Very high compressibility and temperature resistance.
- Features surface strengthening "Anti-Stick" coating.
- Glueless adhesion of the multiple flat stainless steel insert films.
- Easy to cut yourself.
Specifications
| Type | Sigraflex HD |
| Material | graphite 99.85% pure with flat AISI 316 inlays, v.z.v. "Anti-Stick" coating |
| Color | Black/gray, purple printed. |
|
|
|
| Compressibility according to ASTM F36A | 35% |
| Springback according to ASTM F36A | 15% |
| Pressure resistance according to DIN 52913(2mm) | 48 N/mm² |
| Gas permeability according to DIN 3535/4 | < 0,5 ml/min. |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
| Approved/tested by | DIN DVGW |
| BAM O2 | |
| "Fire-safe" according to BS 7655 | |
| MPA Stuttgart | |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
Contact
For more information about our graphite gaskets, please contact us at:
