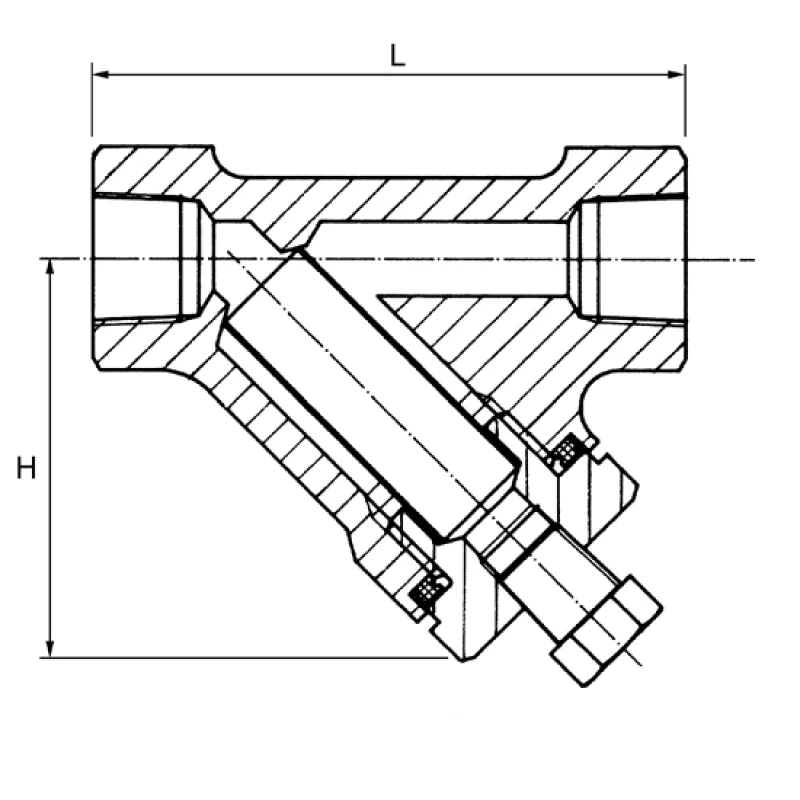

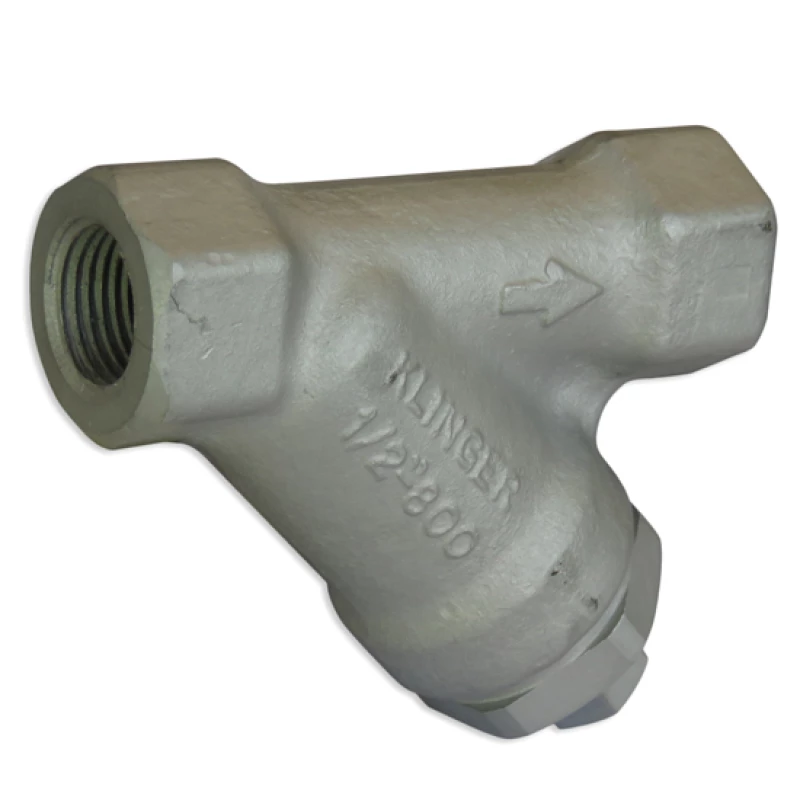

Steel Y-filter | KP-4750
Threaded connection BSP
Suitable for: steam, condensate, water, oil and gas
- Universal use.
- Interchangeable strainer element.
- Screwed cover (2" with bolts).
Specifications
| Type | KP-4750 |
| Material | Steel A105 |
| Pressure class | ANSI 800# / PN100 |
| Strainer | AISI 316 STAINLESS STEEL |
| Seal | AISI 316 + Graphite |
| Plug | Steel A105 |
|
|
|
| Connection | Threaded connection EN1226-1 |
|
|
|
| Temperature | Up to max.425ºC |
