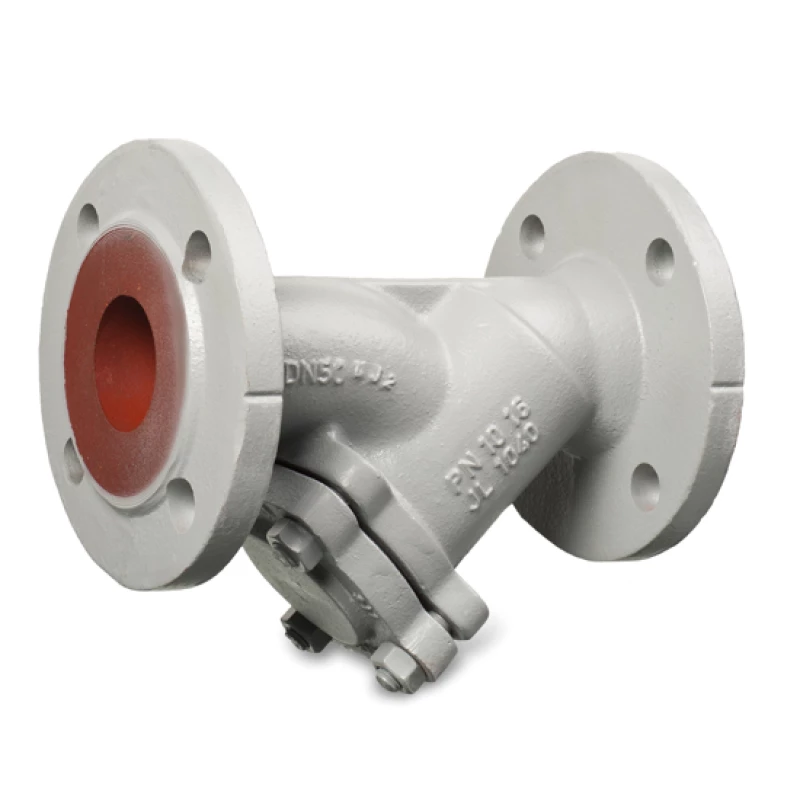

Cast iron Y-filter | KP-4752
Flange connection PN 16
Suitable for: steam, condensate, water, oil and gas
- Universal use.
- Interchangeable strainer element.
Urgency or questions about availability?
Options
- ductile iron GGG40.3 PN25
- without drain plug
Specifications
| Type | KP-4752 |
| Material | Cast Iron GJL-250 |
| Pressure class | PN 16 |
| Strainer | Stainless steel X5CrNi18-10 |
| Seal | KLINGERSil |
|
|
|
| Drain plug | at cover |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | Flange connection PN 16 |
|
|
|
| Temperature | -10ºC to +300ºC |
