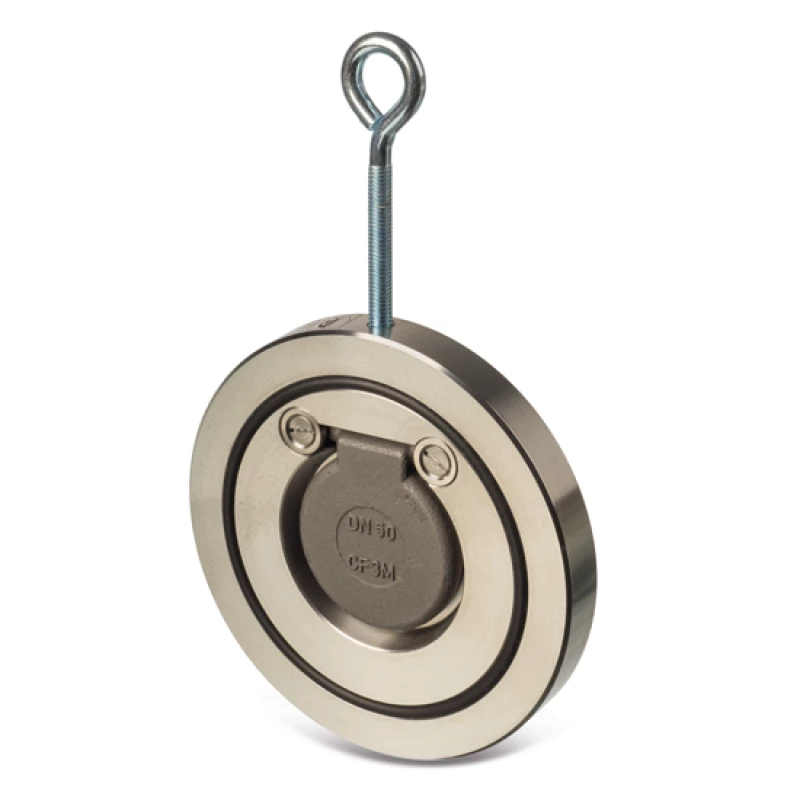

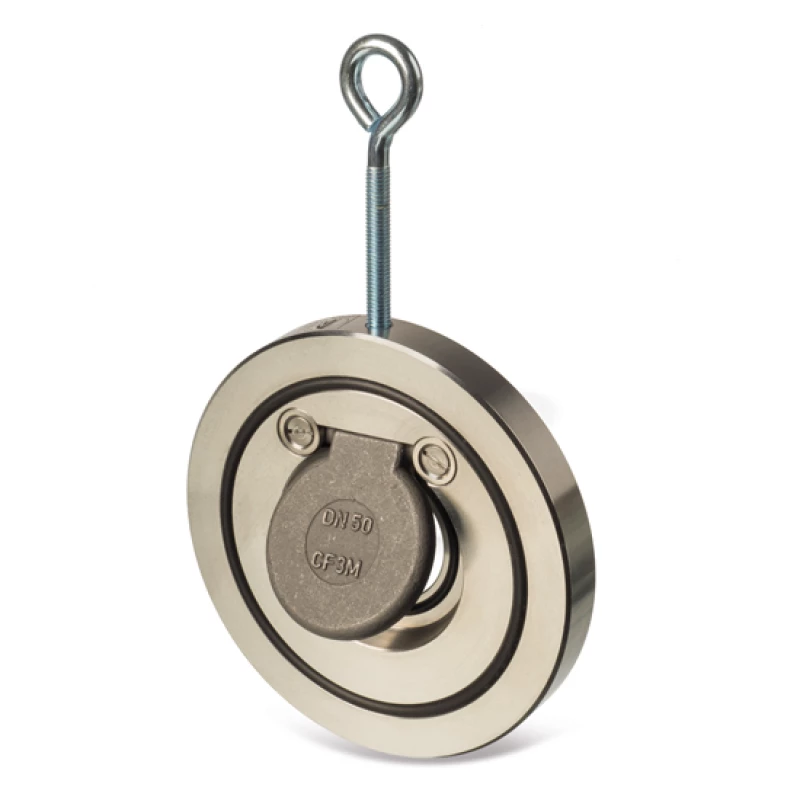

stainless steel wafer check valve | KP-5503
Flange connection PN 10/16
Suitable for: liquids and gases
- Very short face to face dimension.
- Easy to install.
- For horizontal mounting, or vertical mounting with upward flow direction.
Urgency or questions about availability?
Also available
- aluminum-bronze model, type KP-5505
- other quality O-rings
- spring-loaded valve
- suitable for ANSI flanges
Specifications
| Type | KP-5503 |
| Material | AISI 316 STAINLESS STEEL |
| Pressure class | PN 16, from DN 250 PN 10 |
| Disc | AISI 316 STAINLESS STEEL |
| O-rings | Buna |
|
|
|
| Temperature | -40ºC to 150ºC |
|
|
|
|
|
|
|
|
|
Contact
For more information on our wafer check valve check valves, please contact:
