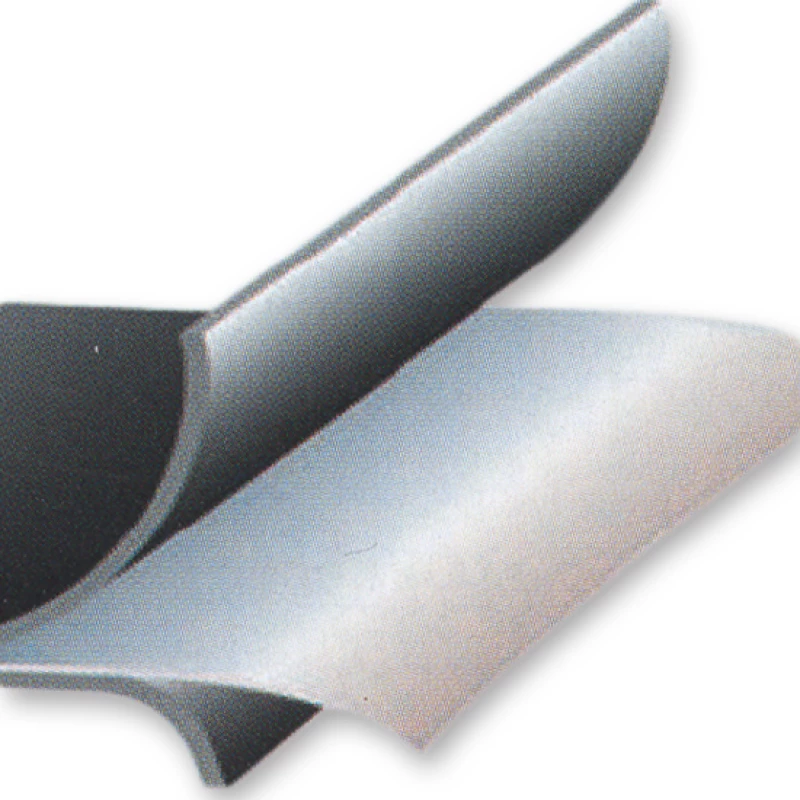

Graphite seal | KLINGER SLN
Graphite with flat Nickel insert
Suitable for: steam, hot water and thermal oil, many chemicals
- Very high compressibility and temperature resistance.
- Great chemical resistance also of the insert.
- Available from our own production in plates, rings and windows.
- Easy to cut yourself.
Specifications
| Type | KLINGER SLN |
| Material | graphite 99% pure with flat Nickel insert. |
| Color | Black/Gray |
|
|
|
| Compressibility according to ASTM F36A | 40% |
| Springback according to ASTM F36A | 15% |
| Pressure resistance according to DIN 52913(2mm) | 48 N/mm² |
| Gas permeability according to DIN 28090-2 | < 0,05 mg/s.m. |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
|

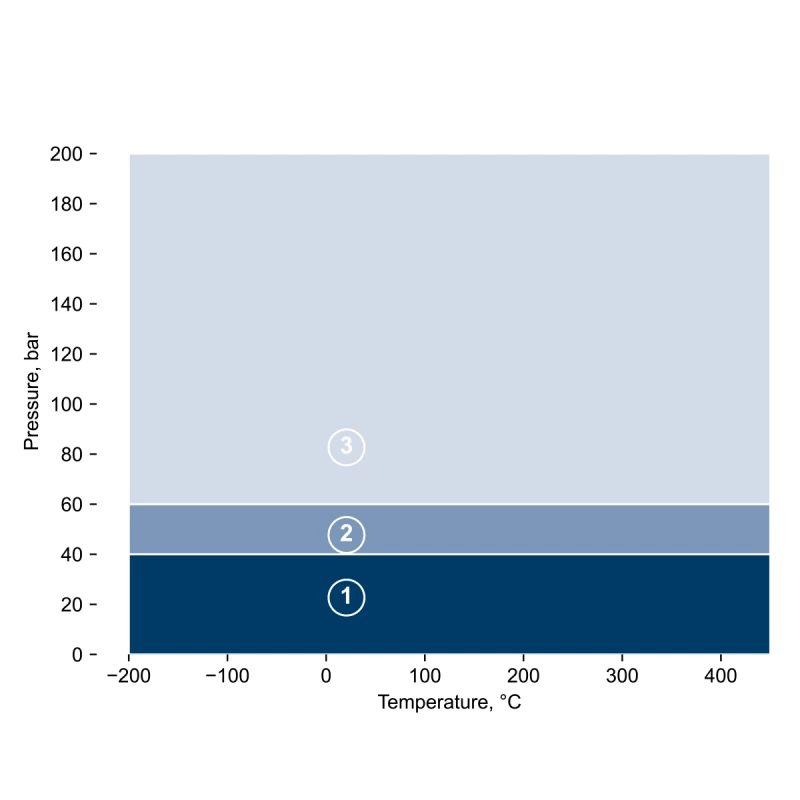

Pressure/Temperature Graph
|
|
| Area 1 | Normally with adequate surface pressure, it can be applied without problems. |
| Area 2 | Get advice for critical applications. |
| Area 3 | Seek advice. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
