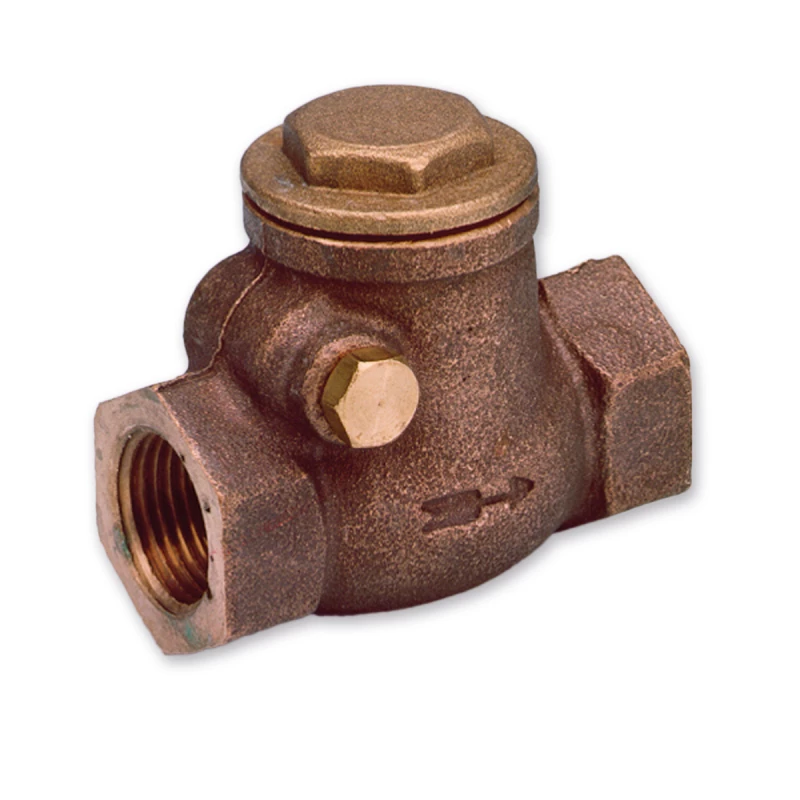

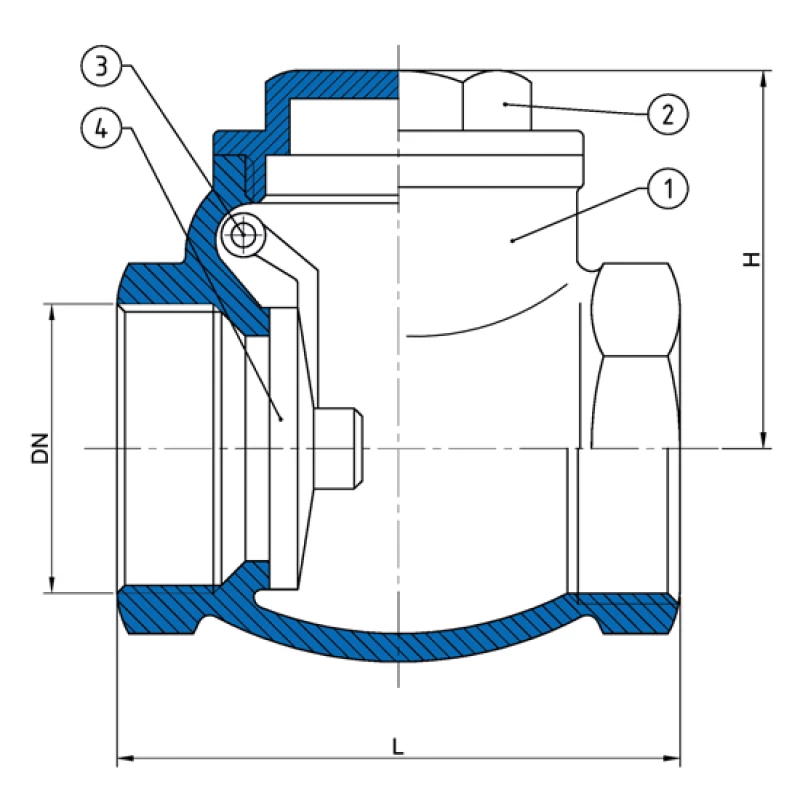

Bronze check valve | KP-5541
Threaded connection BSP, hinged valve
Suitable for: water, steam, condensate and non-aggressive liquids
- With hinged flap for horizontal application.
Specifications
| Type | KP-5541 |
| Material | Bronze CuSn5Zn5Pb5-C |
| Pressure class | PN 16 |
| Disc | Brass |
| Seat | Bronze CuSn5Zn5Pb5-C |
| Connection | BSP female thread EN1226-1 |
|
|
|
| Temperature | 100ºC at 16 bar, 170ºC at 7 bar |
