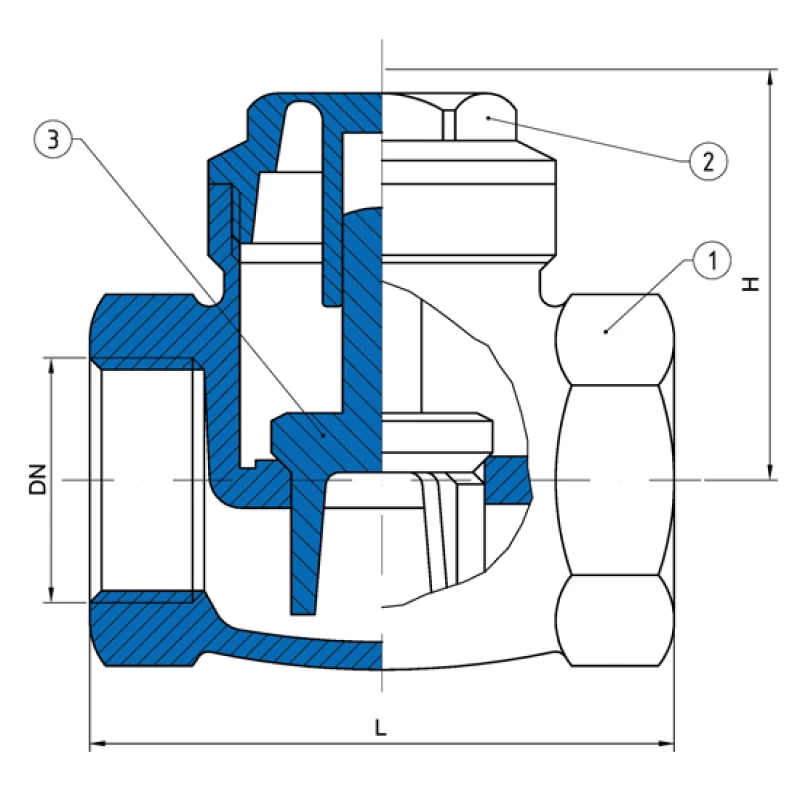

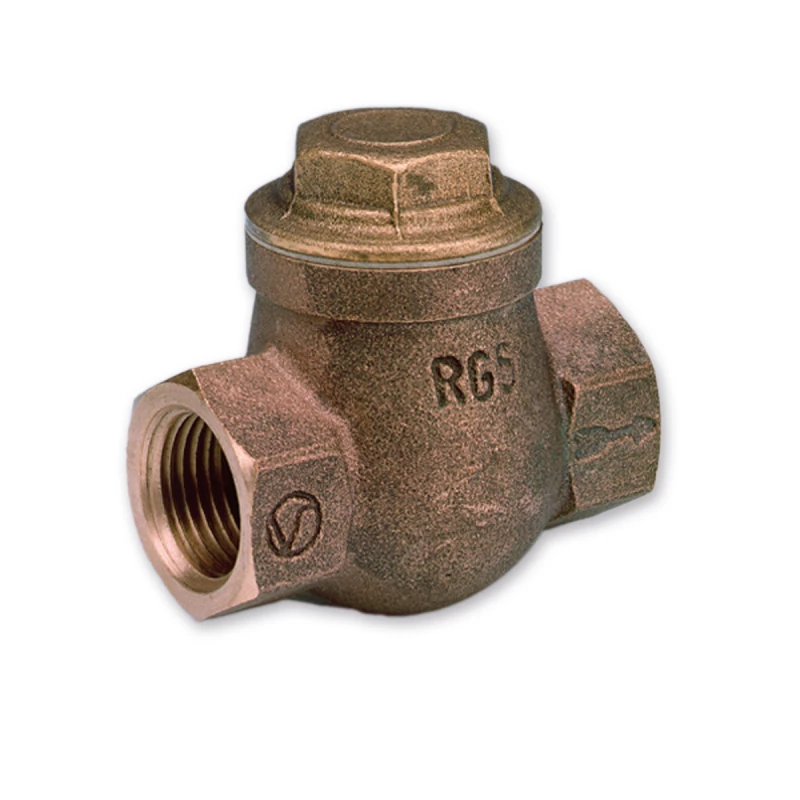

Bronze check valve | KP-5542
Threaded connection BSP, spring loaded valve (lift)
Suitable for: water, steam, condensate and non-aggressive liquids
- Can be mounted horizontally and vertically.
- Spring-loaded valve.
Urgency or questions about availability?
Specifications
| Type | KP-5542 |
| Material | Bronze CuSn5ZnPb5-C |
| Pressure class | PN 32 |
| Cap | Brass CuZn39Pb3 |
| Disc | Brass CuZn39Pb3 |
| Spring | STAINLESS STEEL |
| Valve Ring | PTFE |
|
|
|
| Connection | BSP female thread EN1226-1 |
|
|
|
| Temperature | max 198º at14 bar |
| max 100º at 32 bar | |
