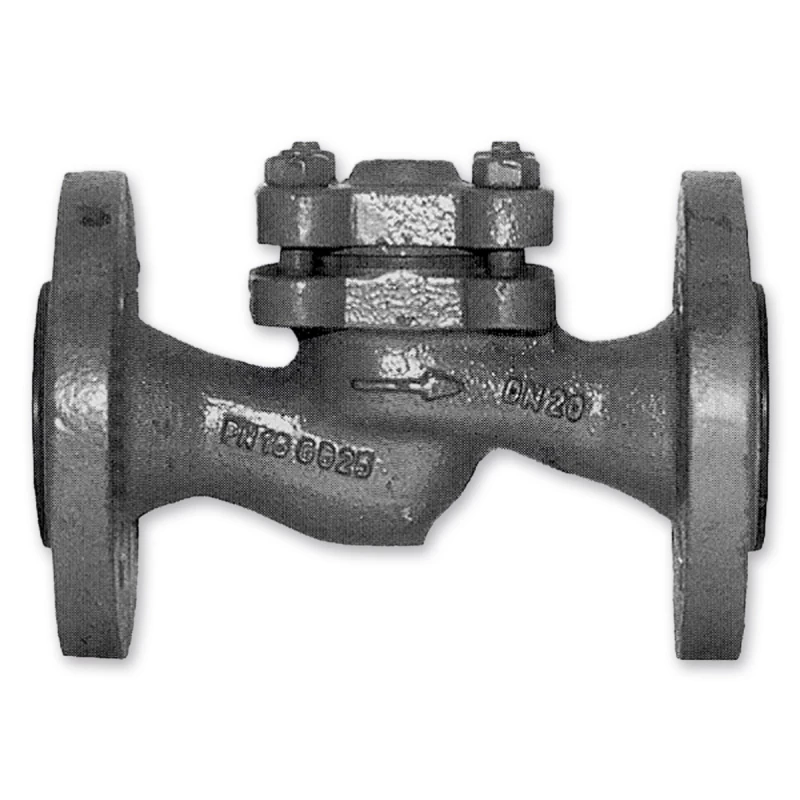

Cast iron spring loaded check valve - KP-5510

Cast iron spring loaded check valve | KP-5510

Cast iron spring loaded check valve | KP-5510
Cast iron spring loaded check valve | KP-5510
gallery slider left
gallery slider right

Flange connection PN16

Suitable for: steam, water, oil and non-aggressive liquids

  • For horizontal or vertical mounting.
Specifications
Cast iron spring loaded check valve | KP-5510
Cast iron spring loaded check valve | KP-5510
Previous series Next Series

Specifications

Type KP-5510
Material Cast Iron EN-GJL-250
Pressure class PN 16
Disc Stainless steel X20Cr13 up to DN50, welded > DN65
Seat Stainless steel X20Cr13
Spring STAINLESS STEEL
Seal Graphite
Face to face EN 558-1 series 1
Connection Flange connection PN16 EN1092-2
Temperature -10ºC to +300ºC
Contact

For more information on our check valves, please contact us at:
