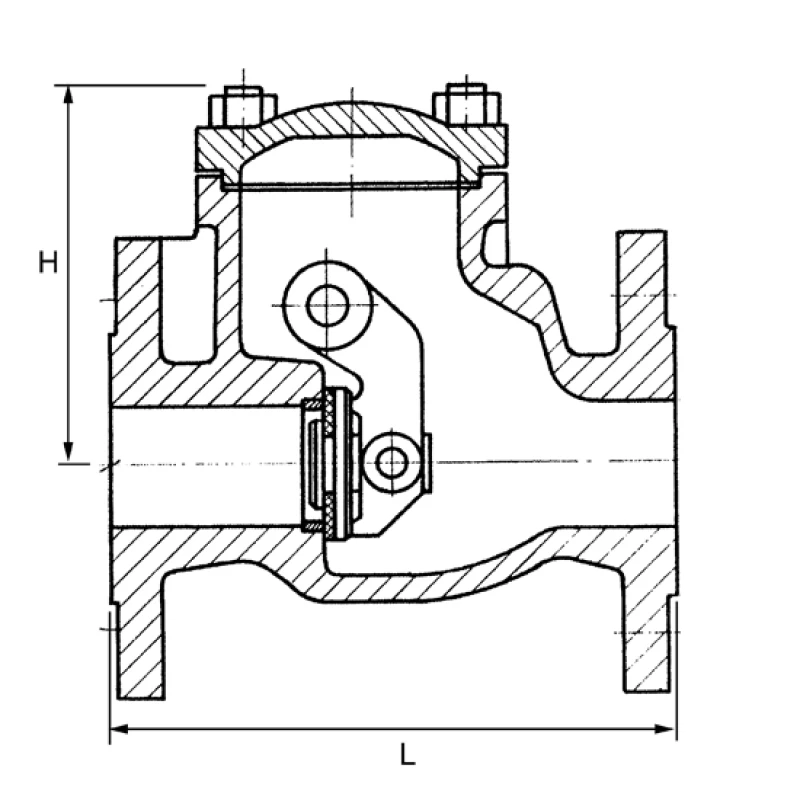

Cast iron check valve | KP-5512
Flange connection PN10/16
Suitable for: steam, water, oil and non-aggressive liquids
- For horizontal or vertical mounting with upward flow direction.
Urgency or questions about availability?
Specifications
| Type | KP-5512 |
| Material | Cast Iron EN-GJL-250 |
| Pressure class | PN 16 |
| Disc | Cast steel/ stainless steel |
|
|
|
| Face to face | EN558-1 series 48 |
| Connection | Flange connection EN1092-2 |
|
|
|
| Temperature | Up to 120ºC max. |
Contact
For more information on our check valves, please contact us at:
