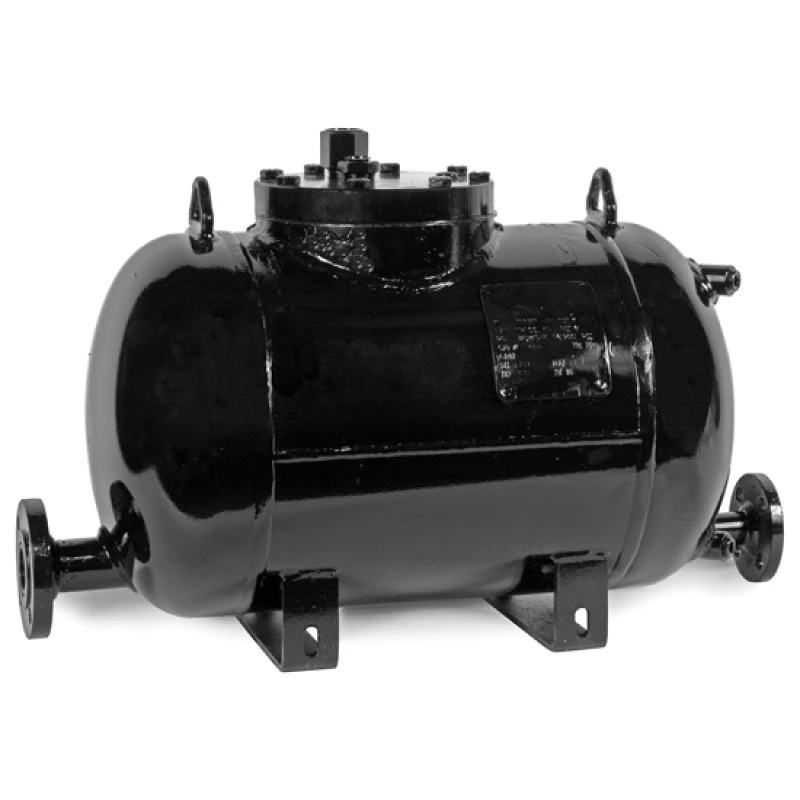

forged steel double duty steam trap/ pump combination | DD6

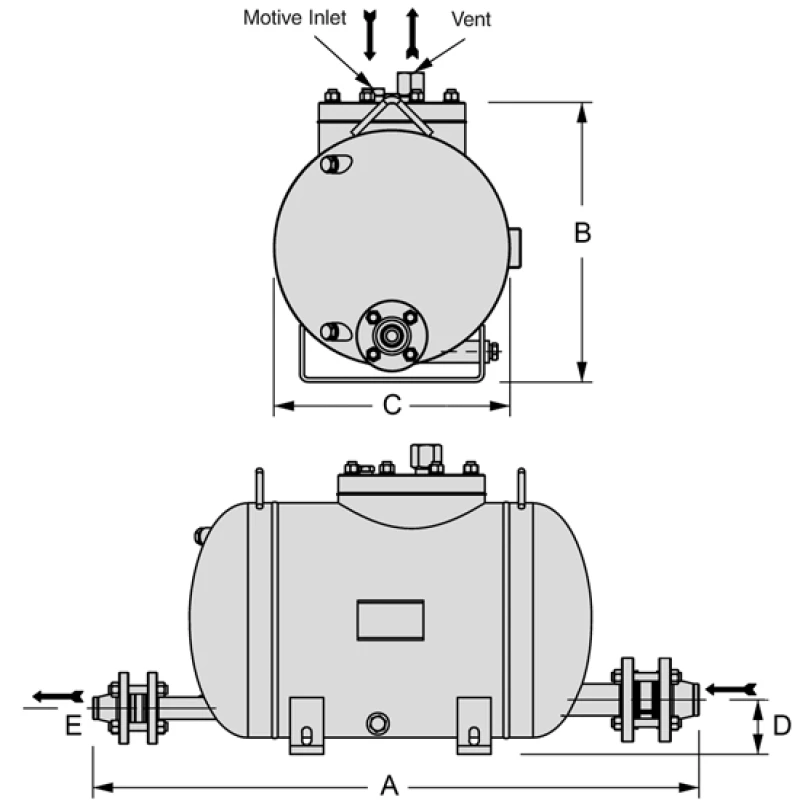

Horizontal model with flange connection
Suitable for: process applications and condensate drainage from heat exchangers
- Operating on steam or air, no external energy required.
- Prevents water hammer and corrosion in heat exchangers.
- Economical, returns condensate.
- Compact model, no more need for separate pumping trap and steam trap.
Specifications
| Type | DD6 |
| Material | Forged steel |
| Mechanism | STAINLESS STEEL |
| Internals | STAINLESS STEEL |
| Spring | Inconel X-750 |
| Float | STAINLESS STEEL |
|
|
|
| Working pressure | Max 14 bar |
| pressure difference between drive pressure and back pressure max 1 bar | |
| Connections | Drive pressure 1/2" BSPT |
| Bleed 1" BSPT | |
| Inlet and outlet flange EN PN40 or ANSI 150# | |
| Drain 1/2" NPT | |
| Temperature | Max 204ºC |
|
|
|
|
Conversion factor for other filling heights Double duty DD6
|
|
| Filling height 0 mm | Correction factor 0.70 |
| Filling height 150 mm | Correction factor 1.00 |
| Filling height 305 mm | Correction factor 1.08 |
Contact
For more information about our pumping traps, please contact us at:
