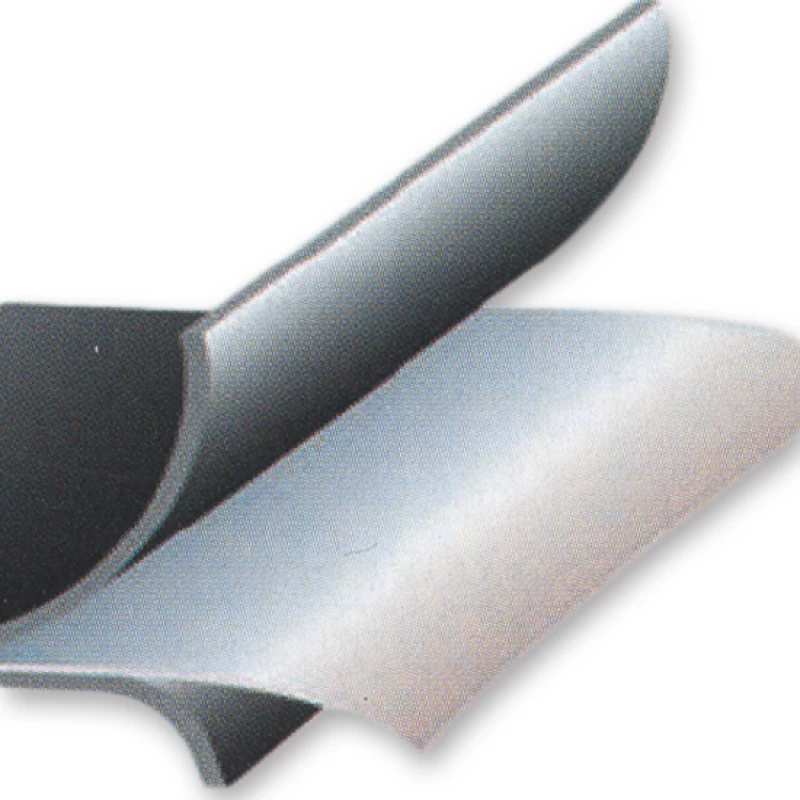

Graphite with flat stainless steel insert v.z.v. "Anti-Stick" coating

Suitable for: steam, hot water and thermal oil

  • Very high compressibility and temperature resistance.
  • Features "Anti-Stick" coating.
  • Available from our own production in plates, rings and windows.
  • Easy to cut yourself.
Specifications
Downloads
Graphite seal | KLINGER SLS B/AS
Graphite seal | KLINGER SLS B/AS
Previous series Next Series

Also available

  • ready-made DIN and ANSI rings and all non-standard sizes

Specifications

Type KLINGER SLS B/AS
Material graphite 99% pure with flat AISI 316 insert, v.z.v. "Anti-Stick" coating
Color Black/Gray
Compressibility according to ASTM F36A 40%
Springback according to ASTM F36A 15%
Pressure resistance according to DIN 52913(2mm) 48 N/mm²
Gas permeability according to DIN 28090-2 < 0,05 mg/s.m.
Chemical resistance see resistance list
Approved/tested by DIN DVGW 88.03e 052
BAM O2
"Fire-safe" according to BS 5146
BL Wien (food industry)
Sealing factors 2 mm thick leakage class 0.1 mg/sxm
ASTM Y 10 MPa
ASTM m 3
D0701 pgm;min 25ºC 10 MPa
D0701 pgm;max 25ºC 125 MPa
D0701 pgm;max 100ºC 110 MPa
D0701 pgm;max 200ºC 100 MPa
D0701 pgm;max 300ºC 90 MPa
D0701 Cg 1,3

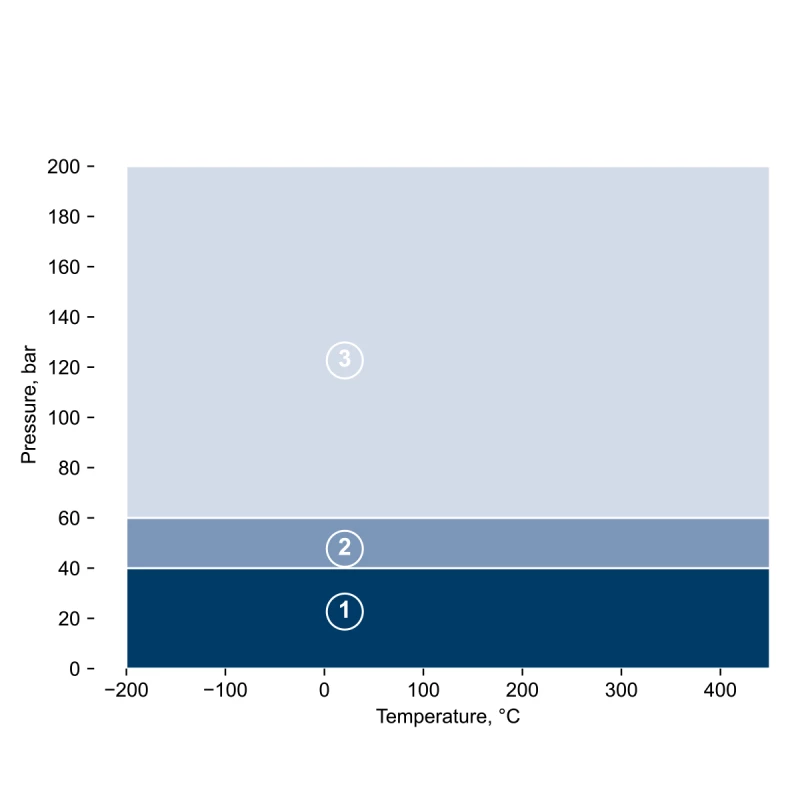

Pressure/Temperature Graph
Area 1 Normally with adequate surface pressure, it can be applied without problems.
Area 2 Get advice for critical applications.
Area 3 Seek advice.
DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
