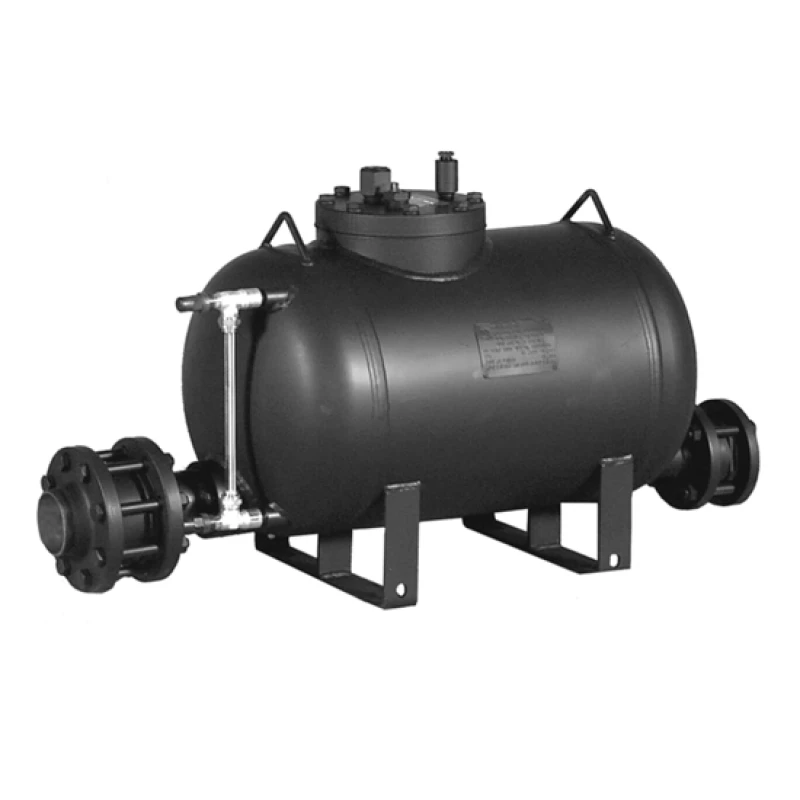

Forged steel pumping trap | EPT-300 series

Suitable for: discharge when pressure or back pressure is too low

Operating on steam or air, no external energy required.
Prevents water hammer and corrosion in heat exchangers.
Economical, returns condensate.
By horizontal model more capacity.

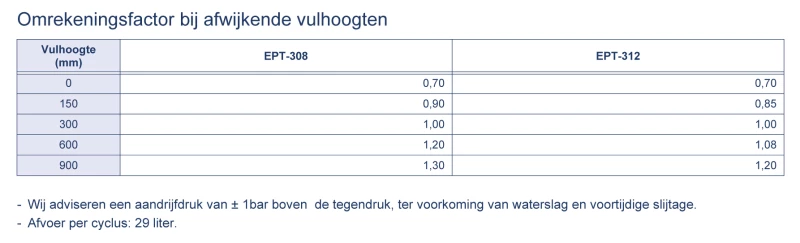

We recommend a drive pressure of ± 1bar above back pressure to prevent water hammer and premature wear.
Discharge per cycle: 29 liters.

Please note that for all types, a space of at least 400 mm above the pumping traps must be kept clear to lift the cover .

Specifications

Type	EPT-300 series
Material	Forged steel
Mechanism	STAINLESS STEEL
Valves	STAINLESS STEEL
Check valves	STAINLESS STEEL
Spring	Inconel X-750

Working pressure	max 9 bar
Connections	Drive pressure 1/2" BSPT
	Bleed 1" BSPT
	Gauge glass 1/2" BSPT (optional)
	Inlet and outlet flange PN16/40 ( included)

Temperature max.	250ºC
