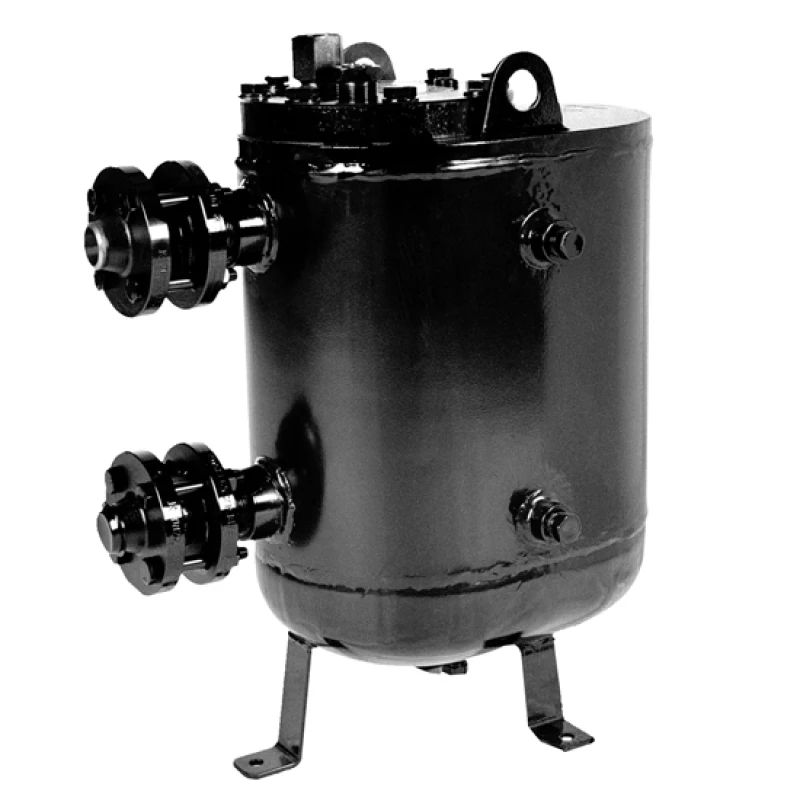

Forged steel pumping trap | EPT-200 series

Suitable for: discharge when pressure or back pressure is too low

Operating on steam or air, no external energy required.
Prevents water hammer and corrosion in heat exchangers.
Economical, returns condensate.
Less floor space required due to vertical model .

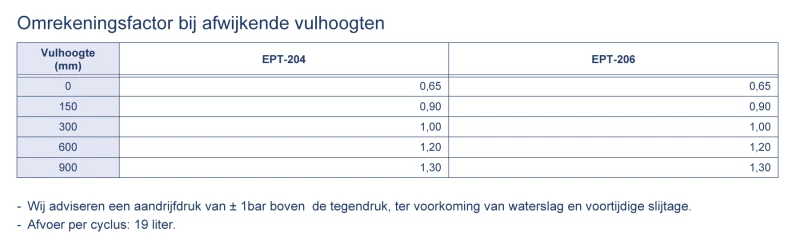

We recommend a drive pressure of ± 1bar above back pressure to prevent water hammer and premature wear.
Discharge per cycle: 19 liters.

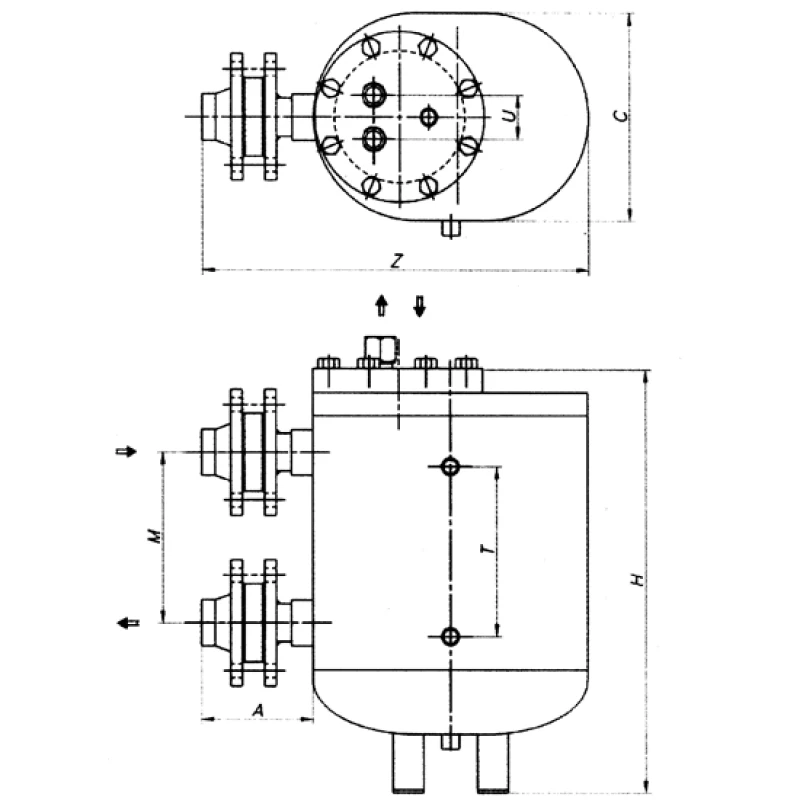

Please note that for all types, a space of at least 400 mm above the pumping traps must be kept clear to lift the cover .

Specifications

Type	EPT-200 Series
Material	Forged steel
Mechanism	STAINLESS STEEL
Valves	STAINLESS STEEL
Check valves	STAINLESS STEEL
Spring	Inconel X-750

Working pressure	max 9 bar
Connections	Drive pressure 1/2" BSPT
	Bleed 1" BSPT
	Gauge glass 1/2" BSPT (optional)
	Inlet and outlet flange PN16/40 ( included)
	Drain 1/2" BSPT
Temperature	343ºC
