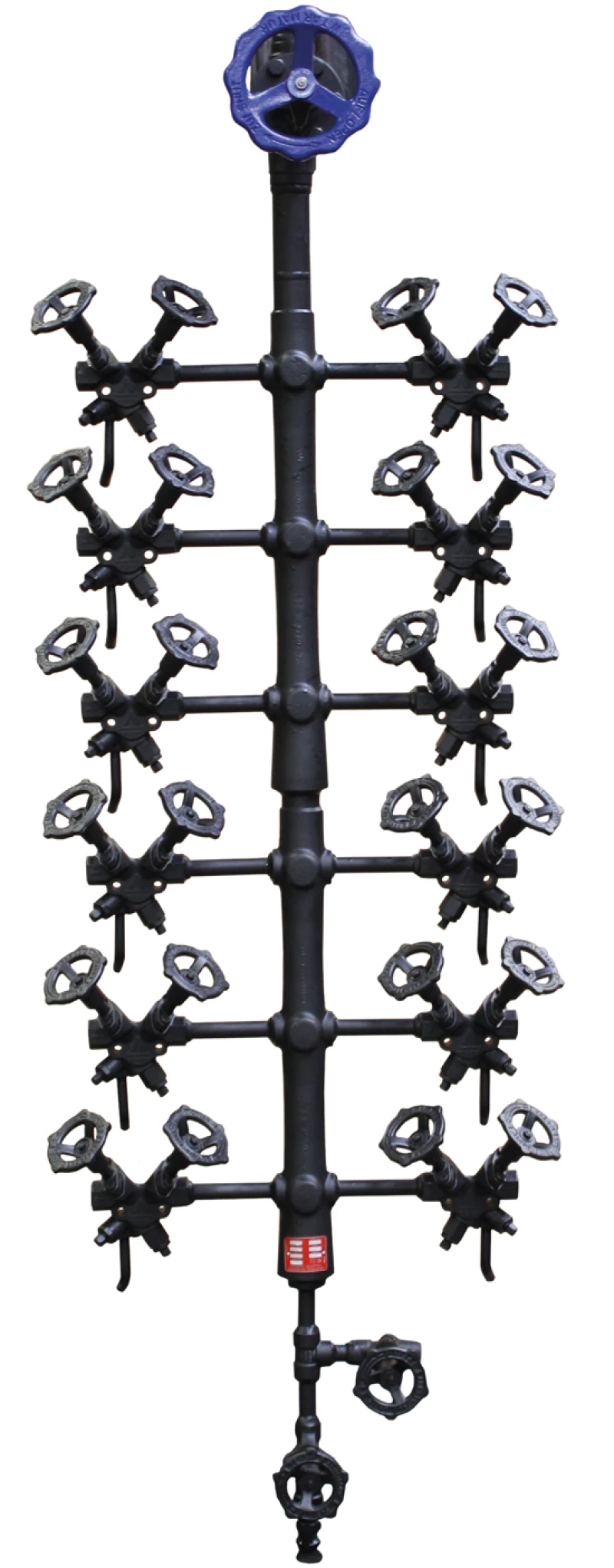

forged steel Condensate collection station | CCA
NPT or Socket-Weld connection, PN 50
Suitable for: condensate collection
- Integrated piston valves.
- Efficient, space-saving.
- Low maintenance costs.
- Easy assembly.
- With Calonat insulation blanket easy to insulate.
- Low maintenance.
Specifications
| Type | CCA |
| Material | Forged steel (also available in stainless steel) |
| Pressure class | PN 50 |
| Header connection | 1.1/2" socket-weld |
| Trace connection | 1/2" or 3/4" socket-weld or NPT female thread |
| Valves | Stainless steel or Steel A 105, 1/2" |
| Spindle/piston | Stainless steel 17% Cr |
| Seal | KLINGER KX module |
| Steam trap | Stainless steel float steam trap type 2010, 2011, bimetallic or TD |
|
|
|
| Max. temperature | +400ºC |
