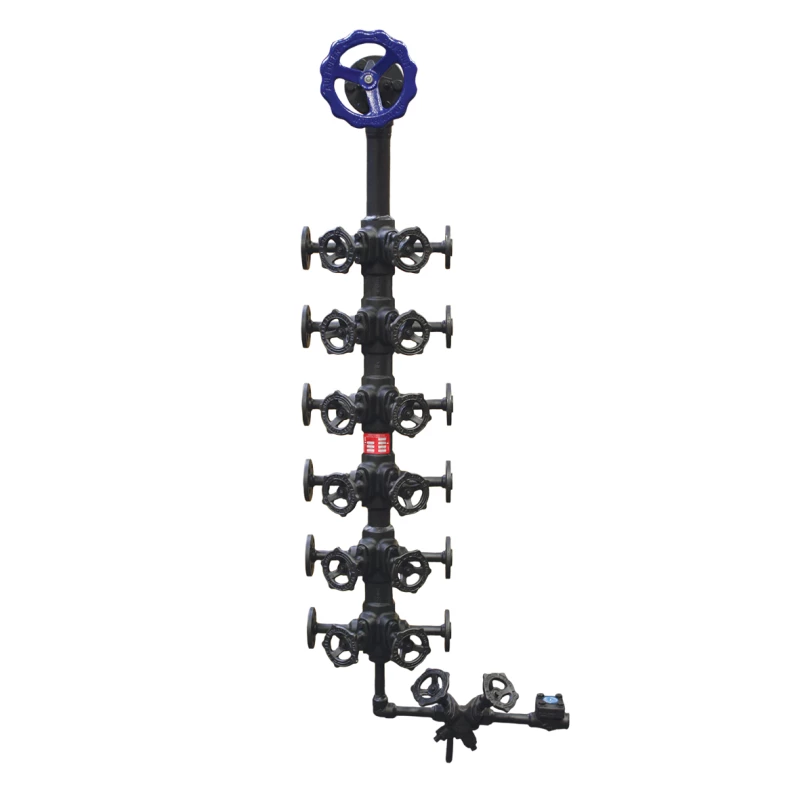

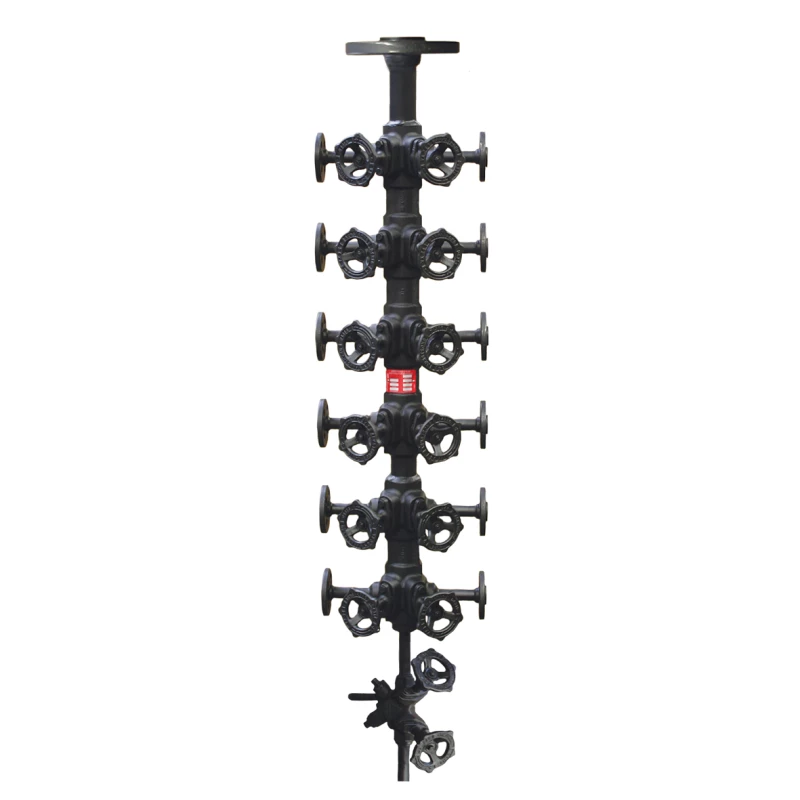

forged steel Compact Manifold | MSD
NPT or Socket-Weld connection, PN 40
Suitable for: steam tracing
- Efficient, space-saving.
- Low maintenance costs.
- Easy assembly.
- With Calonat insulation blanket easy to insulate.
- Low maintenance.
Urgency or questions about availability?
Also available
- Calonat insulation blankets
- ANSI versions

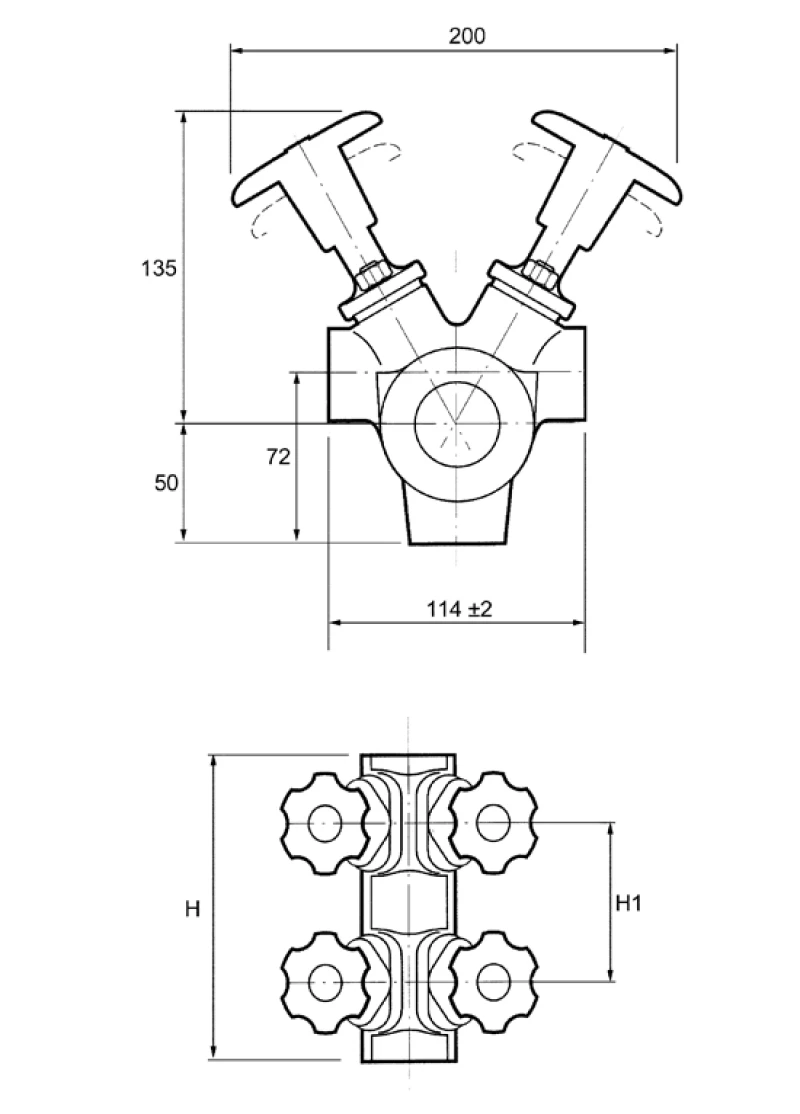

Specifications
| Type | MSD |
| Material | Forged steel A 105 |
| Pressure class | PN 40 |
| Header connection | 1.1/2" socket-weld |
| Tracer connection | 1/2" socket-weld or NPT female thread |
| Valves | Steel A 105 |
| Spindle/piston | Stainless steel 17% Cr |
| Seal | KLINGER KX module |
| Stud/nut | Steel ASTM A 193-B7/A 194-2H |
|
|
|
| Max. pressure | 32 bar |
| Max. temperature | +400ºC |
Contact
For more information about our manifolds, please contact us at:
