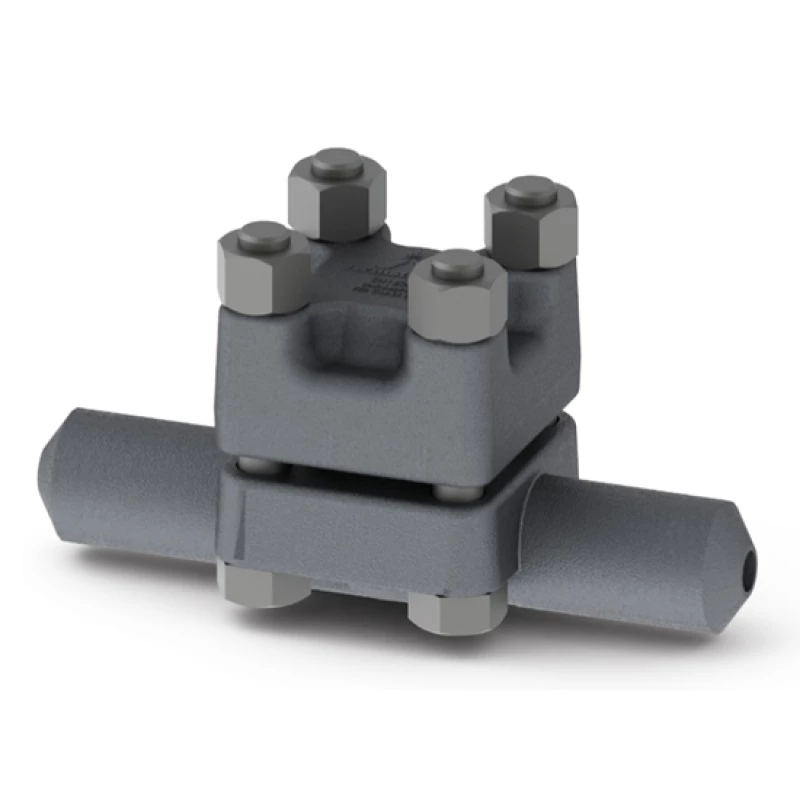

Chrome molybdenum Armstrong thermostatic bimetallic steam trap | SH-1600
with integrated filter
Suitable for: dewatering of superheated steam
- For superheated steam and low load.
- With titanium valve/seat for extremely long life.
- Discharges condensate below saturated temperature.
- Maintenance-free and not sensitive to dirt.
- Resistant to water hammer.
Urgency or questions about availability?
Specifications
| Type | SH-1600 |
| Material | ASTM A182 F22 class 3 |
| Bi-metal element | Nickel-Chrome and stainless steel |
| Disc | Titanium |
| Filter | STAINLESS STEEL |
| Design pressure | 120 bar(g) @ 520 °C |
| Working pressure | 41 to 120 bar(g) |
|
|
|
| Connections | Flange connections, weld (SW and BW) |
|
|
|
Contact
For more information about our thermostatic steam traps, please contact:
